Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium tube
Payment & Shipping Terms
Minimum Order Quantity: 100 kg
Packaging Details: Plywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation
Delivery Time: 7-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 500000 kg per month
Grade: |
Grade 2 |
Sample: |
Available |
Technique: |
Welded |
MOQ: |
100 Kg |
Processing: |
Forging Rolling Annealing |
Application: |
Chemical |
Surface: |
Smooth |
Product Type: |
Polished Welded Titanium Round Tubes |
Length: |
Customized |
Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Standard: |
ASTMB862 |
Grade: |
Grade 2 |
Sample: |
Available |
Technique: |
Welded |
MOQ: |
100 Kg |
Processing: |
Forging Rolling Annealing |
Application: |
Chemical |
Surface: |
Smooth |
Product Type: |
Polished Welded Titanium Round Tubes |
Length: |
Customized |
Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Standard: |
ASTMB862 |
Large diameter titanium pipe best price
Our Company
As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized. So you should have confidence in our company.
1. Product Feature
Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tubes.
2. Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
4. Test
5. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
6. Product Details Information
Standard: ASTM B338, ASTM B861
Specification: OD5.0-114.0mm x WT0.5-7.0mm x 1000-1200mm, OD55mm-914mm x WT1.0-10.0mm x 1000-6000mm, or according to customer’s requirement.
Condition: Annealed(M)
Usage: a) Fluid, gas and oil transport;
b)General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear);
c)Construction and ornament
e)Boiler heat exchangers
Certificate: ISO9001:2015, TUV, EN10204.3.1

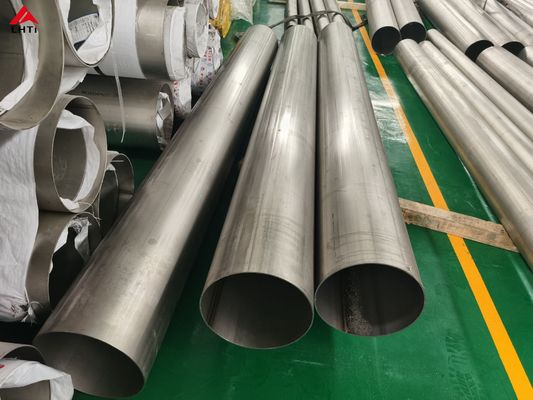

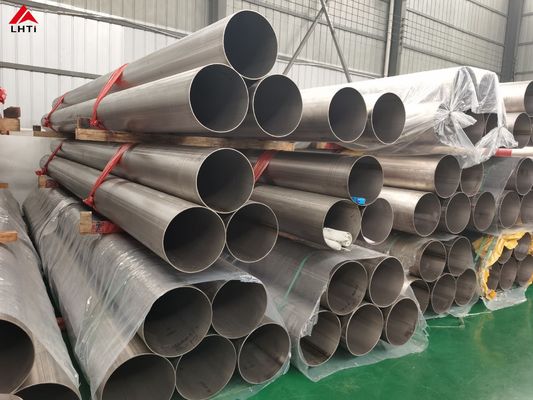

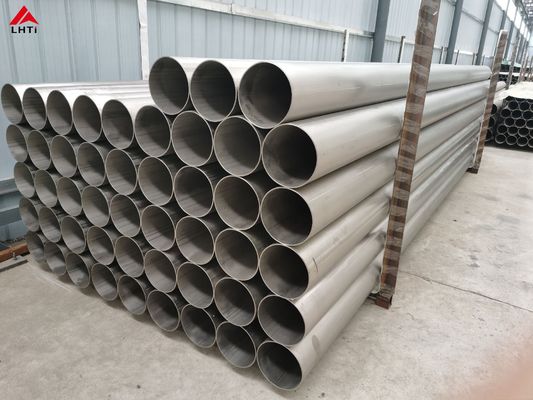

7. Detailed Images
8. Related Products
9. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
|
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
|
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
10. The product description
| Material | Titanium tube |
| Grade | Grade 2 |
| Spec. | ASTMB862, GB/T3625-2007 |
| OD, TH | φ133-φ2000*(2-20)*L |
| Length | 6 Meters or customized |
| Finish | Annealed & Picked or OD Mechanical Polish or Bright Annealed & OD Polish |
| Tolerance | Outer Diameter: +/- 0.2mm Thickness: +/- 10% Length: +/- 10mm |
| Application | Petroleum, chemical industry, chemical fiber, smelt, medical machinery, paper making, heat preservation and refrigeration, mechanical equipment, food, electricity, water conservancy, architecture, aerospace, navigation shipbuilding, environmental protection and boiler heat exchanger |
| Package | Standard seaworthy package: 1.plywood case 2.wooden pallet package 3.bundle packageand other package or as customer request |
| MOQ | 100 kilograms |
| Supply Ability | 500 tons/month |
| Port | Shanghai |
| Payment Term | T/T with 30% deposit, balance before shipment |
| Delivery Time | Usually within 20-35 days after payment |
