Corrosion Resistance 3mm Grade 7 Titanium Plate Polished

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Gr7 Ti sheet
Minimum Order Quantity: 100 kgs
Packaging Details: Standard exporting packing
Delivery Time: 7-20 work days
Payment Terms: T/T, Western Union, D/P, D/A, L/C
Supply Ability: 200000 kg per month
Detail Information
Porudct Name: Titanium Sheet / Titanium Plate Material Grade: Titanium Gr7 Ti-0.2Pd
Standard: ASTM/ ASME B265 Surface: Polished, Acid Washing
Situation: Annealed Technology: Cold Rolled, Hot Rolled
Shape: Straight Application: Chemicals, Machinery And Equipment Etc.
High Light:

3mm Grade 7 Titanium Plate

,

Gr7 Corrosion Resistance Titanium Plate

,

ASME B265 Titanium Plate


Product Description

Corrosion resistance Grade 7 titanium plate 3mm 5mm 10mm 12mm 15mm



Gr7 is an α-titanium alloy, and its technological and mechanical properties are similar to those of industrial pure titanium. When the amount of Pd added to titanium reaches 0.1%-0.2%, the corrosion rate of titanium in sulfuric acid and hydrochloric acid is significantly reduced, and the Pd content is further increased, and the corrosion rate of the alloy is almost unchanged, and when the Pd content is less than 0.05% , The corrosion rate increases instead. When the acid concentration is low, the titanium-palladium alloy containing 0.13% Pd has satisfactory corrosion resistance, but when the acid concentration is high, Ti-0.2Pd has better corrosion resistance, so Ti-0.2Pd is more For appropriate.



Product Name: Titanium Plate
Standard: ASTM B265
Material: Gr7
Unit Price: $222.5usd/kg-$285.7usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:1PC
China's professional titanium plate manufacturer



Applications :

  • Architecture

  • Power generation

  • Hydro-carbon processing

  • Marine industry

  • Exhaust pipe shrouds

  • Airframe skin

  • Desalination

  • Chemical processing

  • Chlorate manufacturing



Grade 7 (Ti-0.2Pd) titanium plate/ sheet
Chemical compositions(weight%,<=)
Pd Al V Fe C
0.12-0.25 ---- ---- 0.30 0.08
N H O Other(total) Ti
0.05 0.015 0.2 0.4 Remainder
Physical properties(>=)

Σb

Tensile Strength

(Mpa)

σr0.2

Yield Strength

(Mpa)

δL0+50mm

Elongation

(%)

ψ

Reduction of area

(%)


400 275 20 25

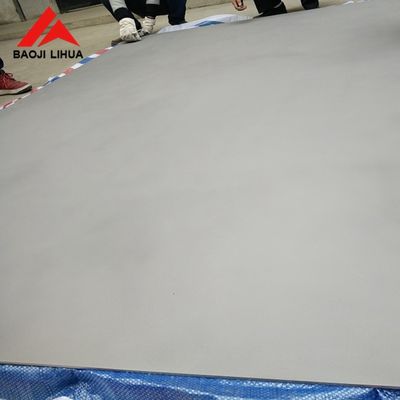

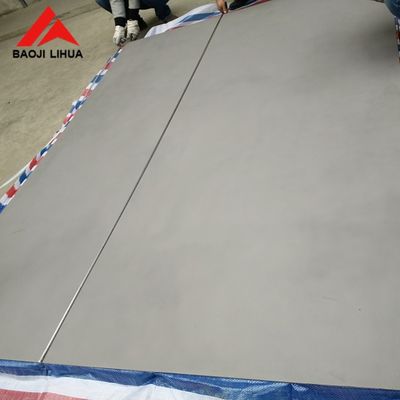

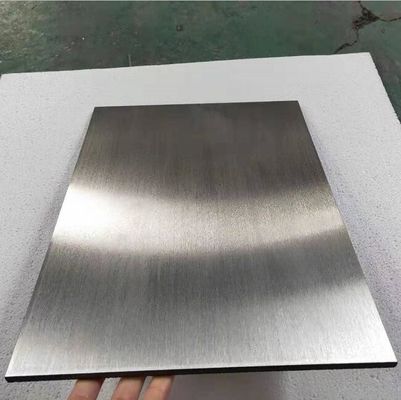

Detailed Images:

gr7 titanium sheet price

Gr7 titanium plate titanium plate10 mm titanium plate



Titanium plate production process:

We always use grade 1 sponge titanium as raw material to ensure that the titanium plates produced by the factory are high-quality products.

titanium plate

Package of Gr7 Titanium Plate

The packaging of Titanium Plate is done by our factory according to the specification and size of the plates being delivered. Most of plates are packed in standard export plywood box in order to avoid the fumigation and damage of goods during the shipment. Packaging is considered as the important parameter when the products are shipped internationally.

titanium plate packing



About our company:our companytitanium sheet 1mm_



our advantagementlihua titanium rod (1)
