products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Titanium Tube
Created with Pixso.

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface

Brand Name: LHTI
Model Number: Titanium straight pipe
MOQ: 10kg
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001:2015, TUV test
Product Name:
Grade 2 2.5"/3.0"/3.5"/4.0 Inch Titanium Straight Pipe For Exhaust
Material Grade:
Gr2
Key Words:
Titanium Exhaust Pipe
Surface:
Polsihed
Application:
Exhaust
Wall Thickness:
1.0/1.2mm
Length:
1000mm
SMLS Or Welded:
Welded
Packaging Details:
Each tube with environmental protection bags,outside is standard plywood case
Supply Ability:
5 tons per month
Highlight:

4.0 Inch Straight Titanium Exhaust Pipe

,

Gr2 Titanium Exhaust Pipe

,

Polished Titanium Exhaust Pipe

Product Description

Grade 2 2.5"/3.0"/3.5"/4.0 inch titanium straight pipe for exhaust





1.titanium tube information



Name Pure Titanium & Titanium straight pipe
Tube Shape Round
Material Gr1,Gr2,
Standard ASTM B861
SMLS Or Welded

welded

OD

51mm/63mm/76mm/89mm/102mm

Wall Thickness 1.0mm/1.2mm
Length 1000mm long
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

exhaust system




ASTM B861 titanium tube
Used:exhaust industry
Wall thickness:1.0/1.2mm
Length:1000mm /1220mm

Wall thickness tolerance: +/- 12.5%
Length tolerance: +5mm

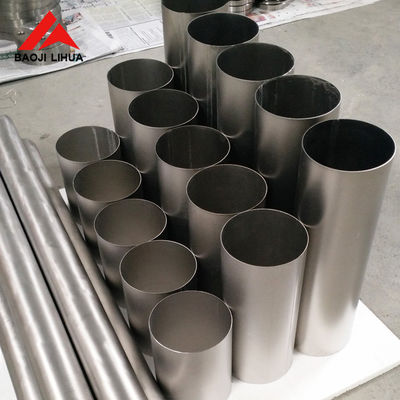

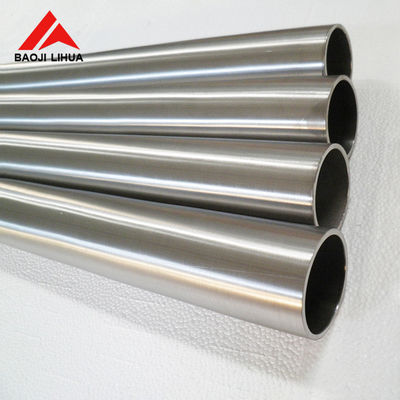

2.titanium tube photo

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface 0




4.Factory show

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface 1

5.Production Process
Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface 2
6.Related products

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface 3

Gr2 4.0 Inch Straight Titanium Exhaust Pipe Polished Surface 4

More details please feel free contact us.
