Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger

Brand Name:	LHTi
Model Number:	Gr2
MOQ:	100 kgs
Price:	USD12- USD14per kg
Payment Terms:	Western Union, T/T, D/P, D/A, L/C
Supply Ability:	1000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaaxi, China

Certification:

ISO9001:2015; TUV; SGS ;BV

Porudct Name:

Titanium Sheet/ Titanium Plate

Standard:

ASME/ASTM B265

Material Grade:

Pure Titanium (Grade 2 Titanium)

Technology:

Cold Rolled

Situation:

Annealed

Shape:

Straight

Surface:

Pickled , Polished

Application:

Chemical Industry, Aerospace Etc.

Character:

Flexible

Packaging Details:

Standard export packaging: soft foam protection inside, plywood outside

Supply Ability:

1000 tons per month

Highlight:

1.0mm Titanium Alloy Plate

1.2mm Titanium Alloy Plate

Anodizing Jig Titanium Alloy Plate

Product Description

Titanium alloy plate 1.0mm 1.2mm for anodizing jig as a hanger

1. Titanium alloy plate specification

Product mame	Titanium alloy plate sheet
Material	Titanium
Grade	gr2
Standard	ASTM B265, ASME SB265
Thickness	1.0mm
Process	cold rolled
Status	M, annealed
Surface	pickling, polished
Third-party testing	SGS, TUV, BV etc.
application	chemicals, machinery and equipment, electroplating equipment, environmental protection equipment, electronics, watches and clocks, glasses, jewelry, sporting goods, golf and precision processing industries

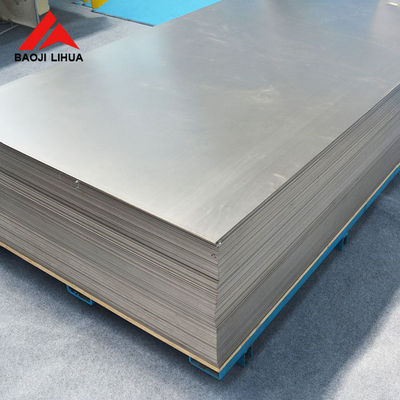

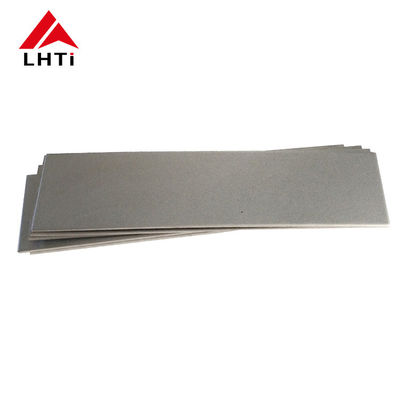

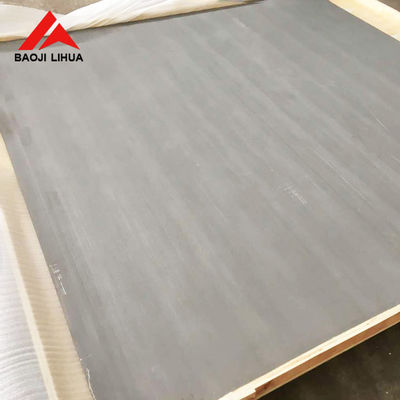

2.Titanium alloy plates pictures

Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger 1

	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

3.Titanium sheet in stock:

Thickness(0.5mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm

Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm

Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm

Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm

Tensile requirements

Grade	Tensile strength(min)		Yield strength(min)		Elongation(%)
Grade	ksi	M Pa	ksi	M Pa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	18

4.Baoji Lihua titanium alloy plate Mechanical Equipment

Baoji Lihua was founded in 2004 year, with more than 15 years of experience in the production and export of titanium plates. We have our own factory and production equipment, so can guarantee the quality and delivery time . In addition to domestic sales, all of our titanium plates are strictly produced in international standard, such as ASTM B265, ASTM B4911. We choose class 1 titanium sponge as the raw material ,and the titanium plate we produced both mechanical properties and chemical composition can meet export standards.
