Home > products > Titanium Sheet > Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm

Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Price: USD13.00-52.00 per kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-28 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 200000 kg per month

Get Best Price

Pure Titanium Plate Gr2


Gr1 Titanium Plate


ASTM B265 Pure Titanium Plate

Cold Rolled
Polished, Acid Washing
Cold Rolled
Polished, Acid Washing
Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm

Gr1/Gr2 pure titanium plate, 2mm*1000mm*2000mm high quality and best price


1Product Description


A. Standard: GB/T 2965-2007, GB/T13810-2007, ASTM B348/ASME SB348, ISO-5832-2(3), AMS4928, MIL-T-9047, JIS etc.


B. Grade: GR1/GR2/GR3/GR5/GR7/GR9/GR12.


C. Available length: 30mm-6000mm, based on your requests.


D. Technique: Cold & Hot rolling.


E: Shape&Type: Plate,sheet,foil; Straight / rolled shape


F: Application: Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.


Process flow: Use high-quality sponge titanium, smelting ingot more than 2 times,

forging and hot-rolling, hot-rolling, selecting rolling method according to the product,

rolling to the finished product size, and finally flattening the sheet to finish the finished sheet.


Physical properties: The tensile strength of the Gr2 titanium sheet is> 450Mpa,

the yield value is> 360Mpa, and the elongation after breaking is> 30%.


Quality supervision: starting from the sponge titanium composition inspection, the upper,

middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic

non-destructive inspection is performed to ensure the quality of the ingot. Physical performance

test to ensure product performance.


Third-party testing institutions: SGS, TUV, BV etc.



2. Specification



Specification of Titanium foil/Titanium sheet/Titanium plate
  Thickness(mm) Width(mm) Length(mm)
Titanium foil 0.03-0.5 30-150 30-200
Titanium sheet 0.5-5 30-1000 30-2000
Titanium plate 5-60 200-2800 1000-6000




3. Advantages of Titanium Materials


Characters of Titanium
1. High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
2. Anti-Corrosion Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
3. High-Temperature Resistance Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃





4. Chemical requirements


  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Titanium plate/sheet in stock:

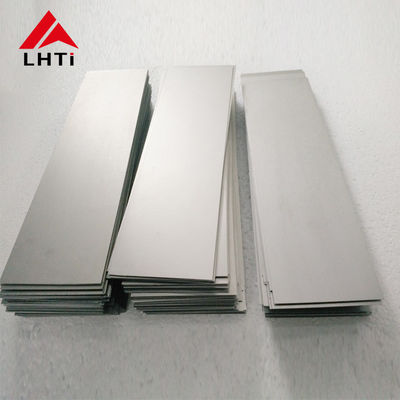

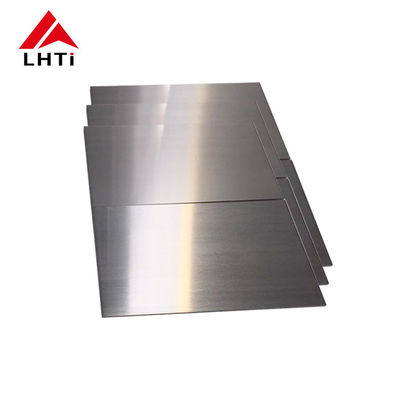

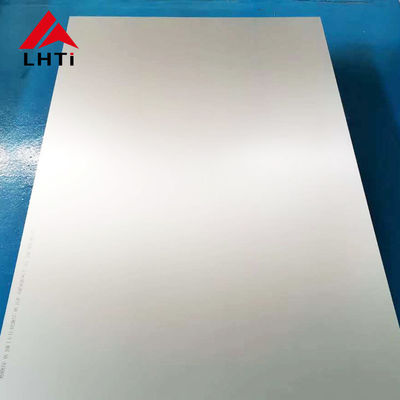

5. Detailed Images



Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm 0

Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm 1




6.Packaging and shipping


Gr1 Gr2 Pure Titanium Plate 2mm*1000mm*2000mm 2


Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce

collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance


Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier

company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.




7. FAQ



Q1.--How can you ensure the product quality?


--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.


Q2.--Can you print our LOGO on the products?


--Sure, and we welcome the customized products.


Q3.--Can we get the free sample?




Q4.--What about the payment terms?


--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.



05.--What is the necessary information for a inquiry?


--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.




8. Other Service

  • In stocks with short delivery time.
  • Strict control from raw materials till products finished,100% Ensure the quality.
  • Support OEM,Customized design,If you are not sure what type of you need for your project, we were glad to help.
  • One on one after service.
  • Original mill sheet test reports EN 10204.3.1 is available.
  • Support The third party testing and professional inspection
