ASTM B338 Grade 2 Seamless Rolled Titanium Tubes

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001-2015
Model Number: tube
Minimum Order Quantity: 100kg
Price: $20--$28/pcs
Packaging Details: Sponge wrap or plastic bag inside, plywood case as outside,
Delivery Time: 15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Detail Information
Grade: Gr2 Outer Diameter: 15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm Etc.
Application: Industrial,Chemical Material: GR2
Standard: ASTM B338 Length: <6000mm,6000mm Or According To Client's Requirement
High Light:

Grade 2 Seamless Titanium Tube

,

ASTM B338 Standard Titanium Tubes

,

Seamless Rolled Titanium Tubes


Product Description

China factory ASTM b338 Grade 2 seamless rolled titanium tubes price



1. SB338 Titanium tube specification



Gr2 seamless Titanium tubes ASTM B338

Product name: titanium pipe / titanium tube for heat exhcanger

Standards: ASTM B338

Grades: Gr2

Dimention:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm xWT0.5-7.0mmxL1000-16000mm

Status: Annealed(M)

Type:Seamless,welded

Certification: ISO9001:2015, EN10204.3.1

Seamless Titanium Tube for heat exchanger, Titanium welded tube OD25mm



2. Titanium tube tolerance



Titanium tube diametere tolerance(mm)



OD 3-10 >10-30 >30-50 >50-80 >80-100 >100
Tolerance ±0.15 ±0.30 ±0.50 ±0.65 ±0.75 ±

Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.2 0.18 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength   Elongation min %
  ksi Mpa ksi Mpa
Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30

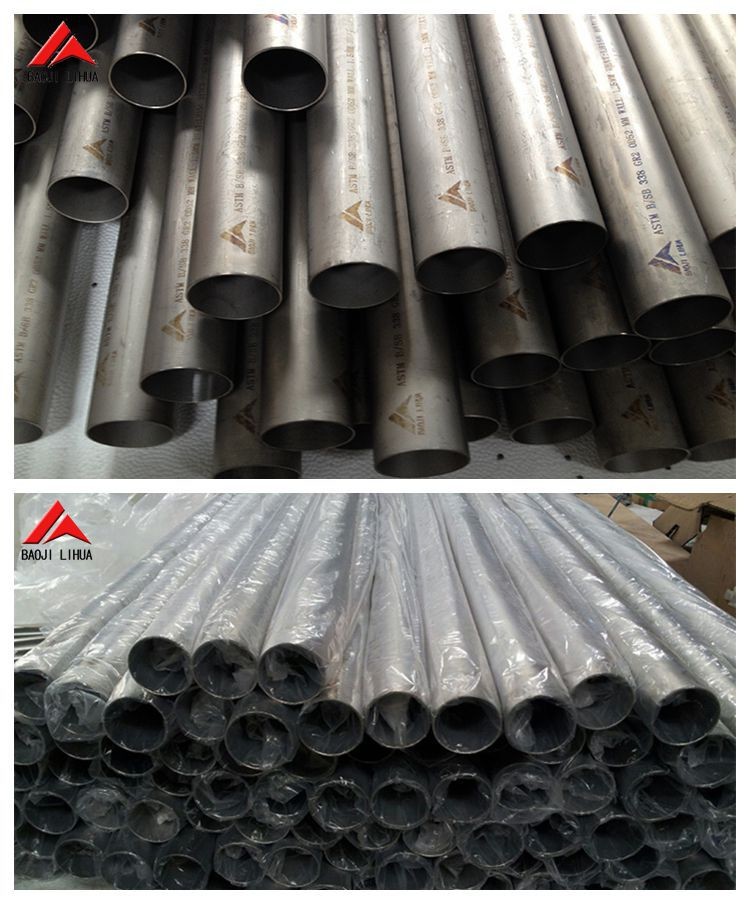

3. Details picture

ASTM B338 Grade 2 Seamless Rolled Titanium Tubes 0

Ti tube9







4. ASME SB388 Test as below



Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection



Titanium pipes / titanium tubes used in heat exchanger:

Ti heat exchanger pipe1



3. Production process



ASTM B338 Grade 2 Seamless Rolled Titanium Tubes 3





We provide following tests for Ti seamless and welded tubes

Chemical Composition Visual Inspect Ultrasonic Testing Current Testing
Flattening Testing Flattening Testing Pneumatic Test Hydrostatic Test
Tensile Yield Hardness Elongation



5. Feel free to contact us China factory seamless rolled titanium tubes supplier
