| Place of Origin: | BaoJi Shaanxi China |
|---|---|
| Brand Name: | LHTI |
| Certification: | ISO9001 |
| Model Number: | LH-01 |
| Minimum Order Quantity: | 1kg of each size |
| Price: | US dollar $23/kg-US dollar $31/kg |
| Packaging Details: | Each tube with environmental protection bags,outside is standard plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union,Paypal.etc |
| Supply Ability: | 5 tons per month |
| Key Words 1: | ASTM B338 Titanium Tube | Key Words 2: | High Quality GR2 Titanium Tube |
|---|---|---|---|
| Key Words 3: | Titanium Tube For Oil And Gas Industry | Material: | Pure Titanium |
| Grade: | Grade 2 | Purity: | 99.5%min |
| Length: | Max 12 Meter | Surface: | Pickling Surface |
| Application: | Oil And Gas Industry | Production Time: | 15 Working Days |
| Payment Term: | T/T,Paypal,Western Union Etc | ||
| High Light: | titanium round tube,titanium welded pipe |
||

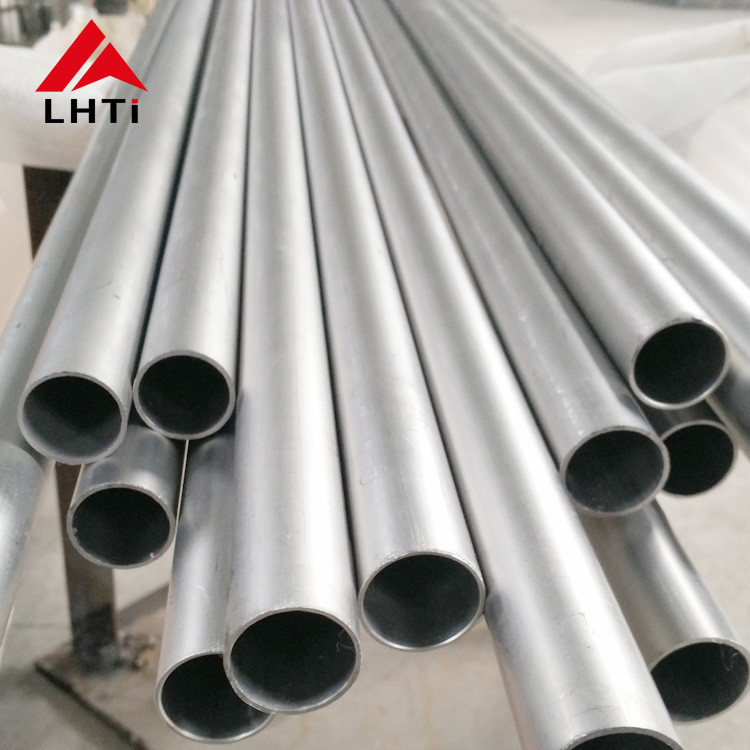

GR1 Gr2 Titanium Seamless Tube ASTM B338 12.7mm Thk 1.8mm For Oil Gas Industry
1.Titanium Tube Information
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round Square Flat Coil |
| Material | Gr1,Gr2,Gr7,Gr12. |
| Standard | ASTM B338 |
| Type |
Seamless |
| OD | 3-114mm or as customized |
| Wall Thickness | 0.2-50mm or as customized |
| Length | Max 6 meter |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| OD (mm) | WT (mm) | OD (mm) | WT (mm) | OD (mm) | WT (mm) |
| 3.3 | 0.25 | 24 | 0.7 | 33.4 | 4.55 |
| 4 | 0.25 | 25 | 0.5 | 38 | 1.2 |
| 4.9 | 0.3 | 25 | 0.7 | 38.1 | 1.24 |
| 6.35 | 0.889 | 25 | 1.5 | 40 | 0.5 |
| 12.7 | 0.8 | 25 | 2 | 45 | 1.5 |
| 15.88 | 0.5 | 25 | 2.2 | 45 | 2 |
| 15.88 | 0.71 | 25.4 | 0.89 | 48.26 | 1.65 |
| 19 | 0.508 | 25.4 | 1.07 | 48.3 | 5.08 |
| 19 | 0.711 | 25.4 | 1.473 | 50.8 | 0.7 |
| 19 | 0.9 | 25.4 | 2.108 | 50.8 | 0.889 |
| 19 | 1.24 | 26.67 | 2.11 | 50.8 | 0.9 |
| 19.05 | 0.56 | 26.67 | 3.912 | 51 | 1.5 |
| 19.05 | 0.9 | 31.75 | 0.7112 | 56 | 0.8 |
| 19.05 | 1.24 | 31.75 | 0.889 | 60.3 | 1.5 |
| 19.05 | 1.65 | 31.75 | 1 | 60.325 | 0.889 |
| 19.05 | 3 | 31.8 | 0.89 | 62 | 2 |
| 21.34 | 2.11 | 33.4 | 2.77 | 89 | 2 |
| 24 | 0.5 | 33.4 | 3.38 | 114.3 | 3.05 |
Chemcial Composition
| Element | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
| Type | |||||||||||
| GR.1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.3 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 | Residual |
Available dimensions of titanium tube
Outside Diameters:5m to 159mm (seamless tube)
Wall thickness:0.5mm to 7mm
Length:1 meter to 12 meters
Outside Diameters:55m to 914mm (welding tube)
Wall thickness:2mm to 10mm
Length:1 meter to 6 meters
Customer fedback Photo
ASTM B338 Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.
LHTI is one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.
Package & Delivery
PVC packing, carton packing, or as customer request woodeng case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.
We still have Titanium flange,titanium bends,titanium Pipe fittings etc.
More details please feel free contact us.
