ASTM B265 Titanium Metal Sheet 5mm 10mm Grade 2 Grade 5 For Chemical Industry

Basic Information
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-TB
Minimum Order Quantity: 10kg
Price: US dollar $20/pc--US dollar $45/pc
Packaging Details: plywood box for export
Delivery Time: 5-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 kgs per month
Detail Information
Product Name: Titanium Plate Standard: ASTM B265
Material: Gr1 Gr2 Gr5 Application: Chemical Industry
Thickness: 5mm, 10mm Surface: Pickling, Polishing, Sand Blasting
High Light:

thin titanium sheet


titanium alloy sheet

Product Description

5mm 10mm ASTM B265 titanium grade 1 grade 2 grade 5 sheet for chemical industry


1. Product Information of Titanium Sheet


Material: GR1, GR2, GR5, GR7, GR12

Standard: ASTM B265

Thickness: 0.5-100mm

                    The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.

Surface: Pickling, Polishing, Sand blasting etc.

Type: Sheet, plate, foil; Straight & roll


2. Specification of Titanium Foil/Titanium Sheet/Titanium Plate


Specification of Titanium foil/Titanium sheet/Titanium plate
  Thickness(mm) Width(mm) Length(mm)
Titanium foil 0.03-0.5 30-150 30-200
Titanium sheet 0.5-5 30-1000 30-2000
Titanium plate 5-60 200-2800 1000-6000


3. Why Choose Titanium


High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
Anti-Corrosion Compared with stainless steel, titanium alloy’s corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
High-Temperature Resistance Titanium application temperature’s higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃
Low Temperature Resistance Titanium alloys still owns its mechanical properties when working in low or super low temperature conditions. Titanium alloys with low-temperature resisitance and extra low interstitial still possess good ductility, therefore, titanium alloy is sort of good low temperature structural material.
Eco-Friendly Metal Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns very good corrosion resistance, therefore, titanium thickness can be greatly reduced, also the heat exchange mode is dropwise condensation between titanium and steam. This kind of mode reduces heat transfer resistance, no fouling on titanium surface, which makes titanium thermal conductivity better.
Good Thermal Conductivity Titanium is non-magnetic metal, it can’t be magnetized in large magnetic field, also titanium is toxic-free and compatibility with blood, there, titanium is applied in medical field.


4. Chemical Requirements of Titanium Sheet

  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


5. Tensile Requirements of Titanium Sheet

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18


6. Our Company

  • As a leading manufacturer & trader of titanium sheet for over 16 years, Baoji Lihua has exported our titanium sheet to many countries, including the UK, France, New Zealand, Chile and Malaysia etc. The quality of our products is widely recognized.
  • We strictly abide by ASTM B265 during the production process of titanium sheet to ensure the precision.
  • Customized products are always welcomed.
  • We know the market very well so our price will make you more competitive.
  • We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

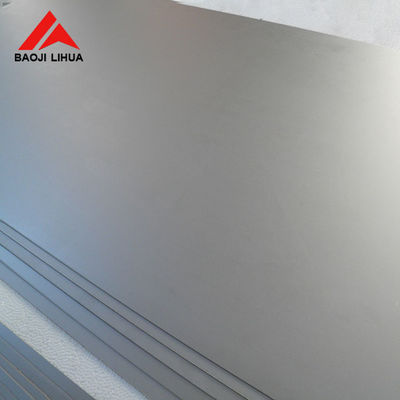

7. Detailed Images of Titanium Sheet


ASTM B265 Titanium Metal Sheet 5mm 10mm Grade 2 Grade 5 For Chemical Industry 0


ASTM B265 Titanium Metal Sheet 5mm 10mm Grade 2 Grade 5 For Chemical Industry 1


8. Package of Titanium Sheet


The packaging of Titanium Sheet is done by our factory according to the specification and size of the sheets being delivered. Most of sheets are packed in standard export plywood box in order to avoid the fumigation and damage of goods during the shipment. Packaging is considered as the important parameter when the products are shipped internationally.
