ASTM B265 Gr7 Ti-0.2Pd 3mm 5mm titaniun sheet for chemcial industry

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015;
Model Number: Titanium Sheet
Minimum Order Quantity: 50 kg
Price: USD160-180 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 5-15 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 2 tons per month
Detail Information
Porudct Name: ASTM B265 Gr7 Ti-0.2Pd 3mm 5mm Titaniun Sheet For Chemcial Industry Standard: ASTM/ ASME B265
Material Grade: Titanium Gr7 Technology: Cold Rolled,
Situation: Annealed Shape: Straight
Surface: Polished, Acid Washing Application: Chemicals, Machinery And Equipment Etc.
High Light:

titanium alloy sheet


forming titanium sheet

Product Description

ASTM B265 Gr7 Ti-0.2Pd 3mm 5mm titaniun sheet for chemcial industry

Gr7 is alpha titanium alloy, and its process performance and mechanical properties are similar

to industrial pure titanium. When the amount of Pd added to titanium reaches 0.1% -0.2%,

the corrosion rate of titanium in sulfuric acid and hydrochloric acid is significantly reduced,

further increasing the content of Pd, the corrosion rate of the alloy is almost unchanged, and

when the Pd content is less than 0.05% Instead, the corrosion rate increases. When the acid

concentration is low, the titanium-palladium alloy containing 0.13% Pd has satisfactory corrosion

resistance, but when the acid concentration is high, Ti-0.2Pd has better corrosion resistance, so

Ti-0.2Pd is more As appropriate.


Product mame Titanium sheet
Material Titanium
Grade gr7 (Ti-0.2Pd)
Standard  ASTM B265, ASME SB265
Thickness 3mm 5mm
Process cold rolled
Status M, annealed
Surface pickling, polished
Third-party testing  SGS, TUV, BV etc.

chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries



Quality supervision: starting from the sponge titanium composition inspection, the upper,

middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic

non-destructive inspection is performed to ensure the quality of the ingot. Physical performance

test to ensure product performance.


Chemical requirements

  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal


Titanium sheet in stock:





Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18

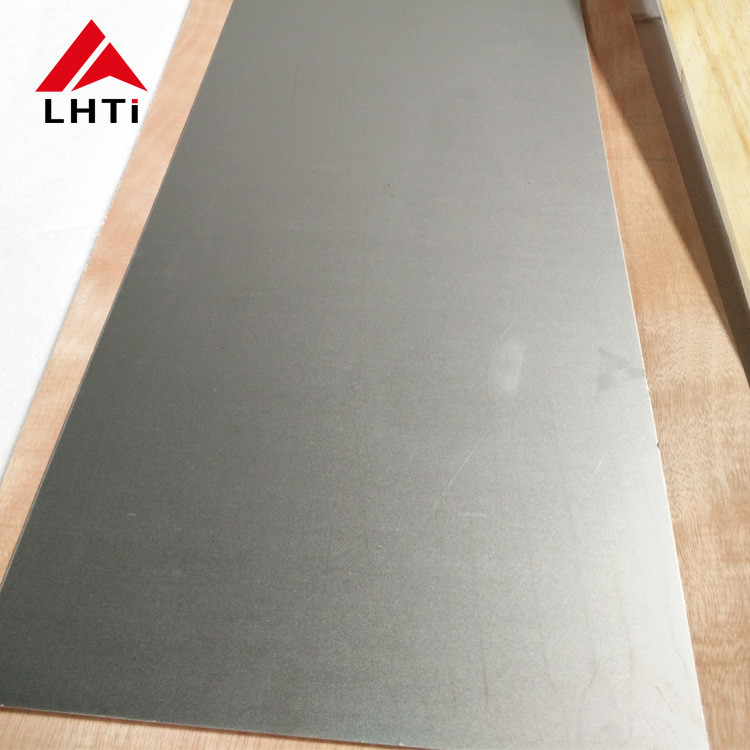

Detailed pictures:



ASTM B265 Gr7 Ti-0.2Pd  3mm 5mm titaniun sheet for chemcial industry 0


Packaging and shipping:

Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce

collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance


Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier

company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.

ASTM B265 Gr7 Ti-0.2Pd  3mm 5mm titaniun sheet for chemcial industry 1
