Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015;
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 100 kg
Price: USD25-35.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 5-15 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 10 tons per month
Porudct Name: |

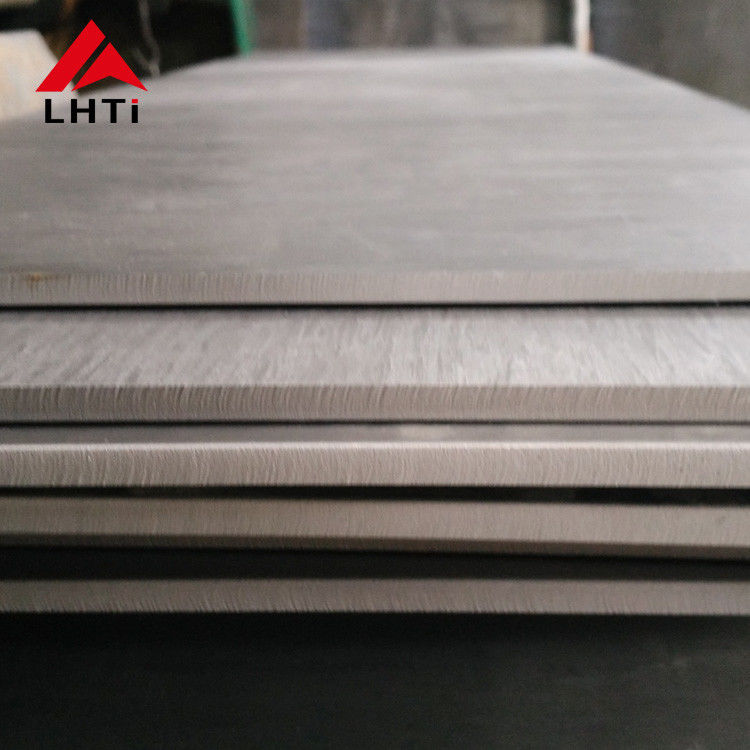

ASTM B265 Hot Rolling 6mm 8mm 10mm Gr5 Titanium Sheet Plate |
Standard: |
ASTM/ ASME B265 |
Material Grade: |
Titanium Gr2, Gr5, Gr7,gr9,gr12 |
Technology: |
Hot Rolled, |
Situation: |
Annealed |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Application: |
Chemicals, Machinery And Equipment Etc. |
Porudct Name: |
ASTM B265 Hot Rolling 6mm 8mm 10mm Gr5 Titanium Sheet Plate |
Standard: |
ASTM/ ASME B265 |
Material Grade: |
Titanium Gr2, Gr5, Gr7,gr9,gr12 |
Technology: |
Hot Rolled, |
Situation: |
Annealed |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Application: |
Chemicals, Machinery And Equipment Etc. |
| Product mame | Titanium sheet |
| Material | Titanium |
| Grade | gr5 |
| Standard | ASTM B265, ASME SB265 |
| Thickness | 6mm/8mm/10mm |
| Process | hot rolled |
| Status | M, annealed |
| Surface | pickling, polished |
| Third-party testing | SGS, TUV, BV etc. |
| application |
chemicals, machinery and equipment, electroplating equipment, environmental protection equipment, electronics, watches and clocks, glasses, jewelry, sporting goods, golf and precision processing industries |
Quality supervision: starting from the sponge titanium composition inspection, the upper,
middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic
non-destructive inspection is performed to ensure the quality of the ingot. Physical performance
test to ensure product performance.
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Titanium sheet in stock:
Thickness(0.8mm/1.0mm)*Width≤1000mm*L≤2000mm
Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm
Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm
Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Detailed pictures:
Packaging and shipping:
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier
company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
We understand that your business depends on getting the right materials in the correct size, finish,
quantity and quality. We make it our mission to provide you with exactly what you need at the lowest
possible price.Our sole purpose of providing quality products and top notched personal service.
Contact me soon!
