Anti Rust Titanium Tube Gr7 Gr9 Gr12 Thick 1.0mm Seamless Industry Astm B861

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium tube
Minimum Order Quantity: 500 kg
Price: USD24.00-29.00 per kg
Packaging Details: Inside with plastic bags separate packaging, plywood box outside for protecting.
Delivery Time: 7-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 500000 kg per month
Detail Information
Grade: Gr1 Gr2 Gr7 Gr9 Gr12 Sample: Available
MOQ: 500 Kg Technique: Seamless
Processing: Forging Rolling Annealing Application: Chemical Industry, Heat Exchanger
High Light:

welding titanium tubing


titanium round tube

Product Description

Astm B861 Gr2 Gr7 Gr9 Gr12 Titanium Tube Thick 1.0mm 1.2mm Seamless Industry



Our Company


As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized. So you should have confidence in our company.


1. Product Feature


Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tubes.



The seamless titanium tube/pipe is made by extrusion process, and the welded titanium pipe is welded from rolled titanium plate. Generally, the seamless titanium tube has a smaller wall thickness and a smaller caliber.


1. Seamless titanium tube/pipe has high hardness. The hardness HRC of titanium alloy (annealed state) is 32-38.

2. Seamless titanium tube/pipe has low elastic modulus. Titanium alloy (annealed) has an elastic modulus of 1.078 × 10 to 1.176 × 10 MPa, which is about half that of steel and stainless steel.
Seamless titanium tube:
Diameter: O.D 6-108mm
Wall thickness: 0.5-8mm
Length: up to 15000mm

3. Excellent high and low temperature performance. At high temperatures, seamless titanium tubes can still maintain good mechanical properties. Their heat resistance is much higher than aluminum alloys, and their operating temperature range is wide. At present, the working temperature of new heat-resistant titanium alloys can reach 550-600 ℃ ; At low temperature, the strength of titanium alloy is increased than that at normal temperature, and it has good toughness. Low temperature titanium alloy can still maintain good toughness at -253 ℃.

4. Seamless titanium tube has strong corrosion resistance. In the air below 550 ℃, titanium will quickly form a thin and dense titanium oxide film. Therefore, its corrosion resistance is better than that of most stainless steels in oxidizing media such as air, sea water, nitric acid and sulfuric acid, and strong alkalis.




2. Chemical requirements


  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal





3. Tensile requirements


Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18





4. Test


High pressure titanium ASTM B338 gr2 seamless pipe heat exchanger tube





5. Detailed Images

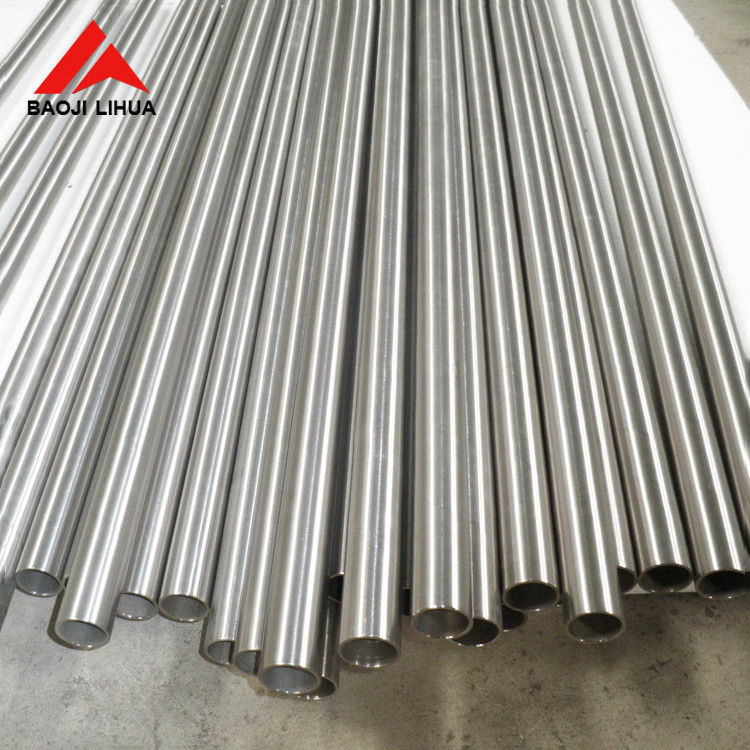

Anti Rust Titanium Tube Gr7 Gr9 Gr12 Thick 1.0mm Seamless Industry Astm B861 1

Anti Rust Titanium Tube Gr7 Gr9 Gr12 Thick 1.0mm Seamless Industry Astm B861 2




6. Product Details Information



Standard: ASTM B338, ASTM B861


Specification: OD5.0-114.0mm x WT0.5-7.0mm x 1000-1200mm, OD55mm-914mm x WT1.0-10.0mm x 1000-6000mm, or according to customer’s requirement.


Condition: Annealed(M)


Usage:   a) Fluid, gas and oil transport;

               b)General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear);

               c)Construction and ornament

               e)Boiler heat exchangers


Certificate: ISO9001:2015, TUV, EN10204.3.1




7. Related Products


  • Titanium Flange
  • Titanium Pipe Fittings
  • Titanium Coil Tube


Anti Rust Titanium Tube Gr7 Gr9 Gr12 Thick 1.0mm Seamless Industry Astm B861 3




8. Quality Assurance



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.


B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.


C. Chemical Composition making sure all chemical components can satisfy customer’s demands.


D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
