| Place of Origin: | Baoji, China |
|---|---|
| Brand Name: | LIHUA |
| Certification: | ISO9001, TUV etc. |
| Model Number: | LH-TG |
| Minimum Order Quantity: | 500kg |
| Price: | US dollar $25/kg--US dollar $40/kg |
| Packaging Details: | Wrapped by plastic bag with plywood box for export outside |
| Delivery Time: | 5-25 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000kgs per month |
| Product Name: | Titanium Pipe | Standard: | ASTM B338 |
|---|---|---|---|
| Material: | Gr1 Gr2 | Application: | Heat Exchanger |
| Type: | Welded/Seamless | Shape: | Round |
| Outer Diameter: | 19.1/25.4/32/38.1mm | Wall Thickness: | 0.5-1.5mm |
| Length: | Max 12000mm | Surface: | Bright |
| High Light: | welding titanium tubing,titanium welded pipe |
||

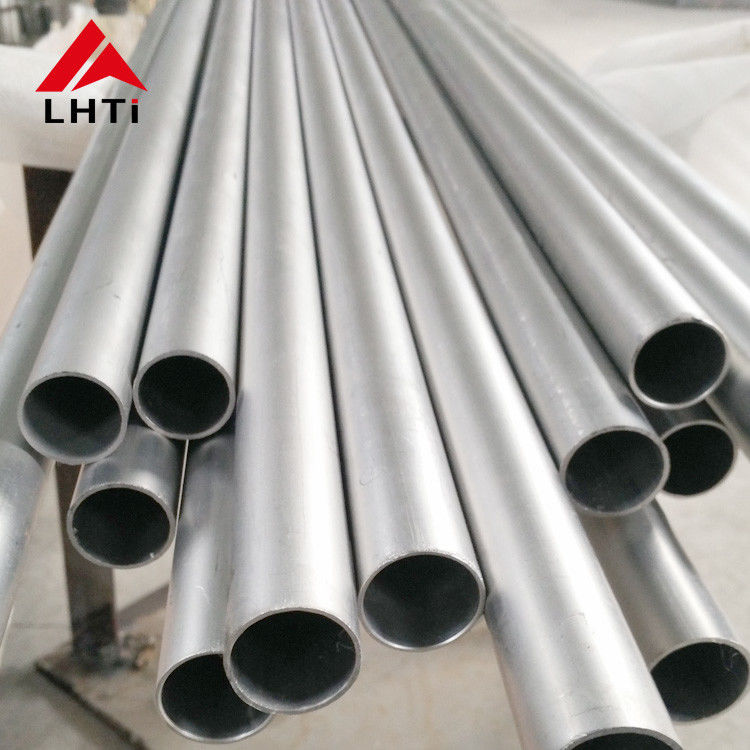

ASTM B338 heat exchanger gr1 gr2 titanium tube 19.1mm 25.4mm 32mm 38.1mm
1. Our Company
2. Product information of titanium tube
| Product | Titanium tube |
| Item Name | ASTM B338 heat exchanger gr1 gr2 titanium tube 19.1mm 25.4mm 32mm 38.1mm |
| Application | heat exchanger |
| Material | Gr1 Gr2 |
| Standard | ASTM B338 |
| Production Process | Welded or Seamless |
| OD | 9.52mm/12.7mm/15.9mm/19.1mm/25.4mm/32mm/33.4mm/38.1mm |
| WT | 0.5-1.5mm |
| length | Max 12m |
| Surface | Polishing, Pickling |
| Advantage |
Excellent corrosion resistance; High strength; High temperature resistance; Low temperature resistance; Good thermal conductivity; Long service life |
3. Detailed Images of titanium tube
(1) Factory
(2)Tests of titanium tube
(3) Application of titanium tube
4. Chemical requirements of titanium tube
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
5. Tensile requirements of titanium tube
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. Good weldability and corrosion resistance are its distinguishing characteristics.
6. Our Services
(1) We have the stocks so we would provide our clients the short delivery time.
(2) Strict control from raw materials till products finished, so the quality is guaranteed.
(3) Customized sizes are offered as well as specified sizes and multiple sizes.
(4) Strict quality test from raw material to product.
(5) Original mill sheet test reports EN 10204.3.1 is available.
