Product Details
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LHTI
Certification: ISO9001
Model Number: LHTI-027
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: USD15-65 per kg
Packaging Details: export wooden box packaging
Delivery Time: 7-30work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Technique: |
Cold Rolled |
Shape: |
Plate, Sheet |
Melting Point: |
1678℃ |
Finishing: |
Pickling, Machining, Abrasive Blasting |
Application: |
Industry,Aeroplane, Surgical Plant, Etc. |
Density: |
About 4.51g/cm3 |
Standard: |
ASTM B265 |
Material: |
GR1 GR2 GR5 GR7 GR12 |
Technique: |
Cold Rolled |
Shape: |
Plate, Sheet |
Melting Point: |
1678℃ |
Finishing: |
Pickling, Machining, Abrasive Blasting |
Application: |
Industry,Aeroplane, Surgical Plant, Etc. |
Density: |
About 4.51g/cm3 |
Standard: |
ASTM B265 |
Material: |
GR1 GR2 GR5 GR7 GR12 |

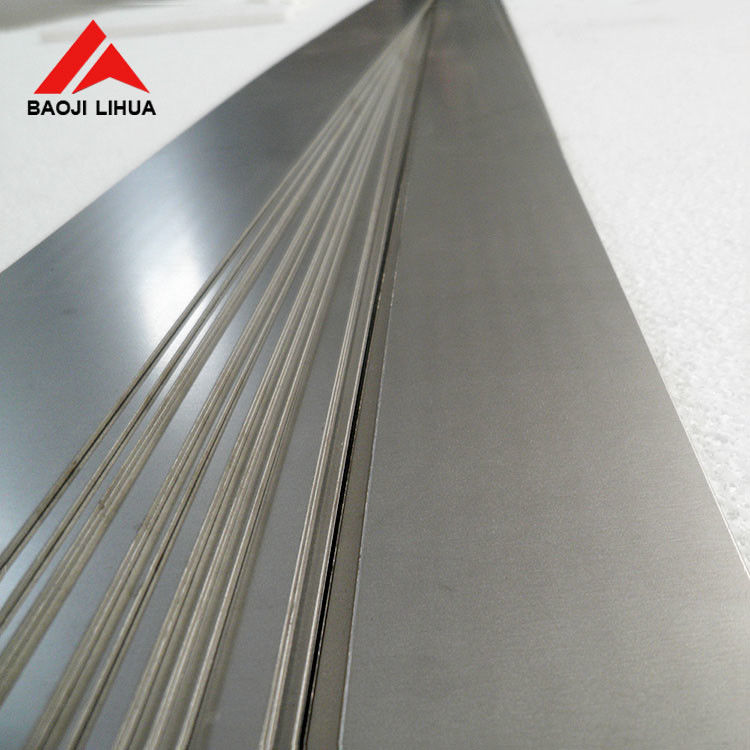

ASTM B265 AMS 4911 gr2 gr5 gr7 titanium plate sheet 3mm 5mm 8mm 10mm 15mm 20mm price per kg
1. Specifications:
Titanium Plate Property
Titanium plates and titanium have the same natural properties.
Its features: lightweight, high strength, metallic luster, and good corrosion resistance.
Titanium plate standard
China Standard : GB / T3621-2007, GB / T13810-2007,
USA Standard: ASTM B265, ASTM F136, ASTM F67,
(AMS4911 is Ti-6AI-4V annealed titanium alloy plate, sheet, and strip)
titanium plate Specification
Common size:
T 0.5-5.0mm x W1000mm x L 2000-3500mm
T 5.0- 30mm x W1000-2500mm x L 3000-6000mm
T 30- 80mm x W1000mm x L 2000mm
| Cut available | |
| Product name | Gr2 Gr12 titanium plate/Ti-0.2Pd |
| Material grade | Gr1, Gr2, Gr4, Gr5,Gr7, Gr9, Gr23, TI-6Al4v, |
| Certificate | ISO9001:2008, TUV, material test certificate EN10204.3.1 |
| Standard | ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67 |
| Technique | Hot/cold rolled |
| Surface | Acid wash, polished |
| Dimensions | Thickness:0.3-100mm |
| Width:20-1220mm | |
| Length:500-6000mm |
Application:(Titanium plate)
1. Heat exchangers and condensers
2. Seawater desalination industry
3. Chemical Industry,
4. Electroplating equipment
5. Precision instruments
6. Environmental protection equipment
7. Auto industry
8. Medical and Sports industry
9. Electric power industry
2. Product Description
3. Chemical requirements
Chemical requirements of titanium plate
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
| Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 |
bal |
4. Buyers Feedback
5. Company Information
We understand that your business depends on getting the right materials in the correct size, finish, quantity and quality. We make it our mission to provide you with exactly what you need at the lowest possible price.
Our sole purpose in providing quality products and top-notched personal service.
6. FAQ:
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us as follows:
