Home > products > Titanium Tube > 99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length

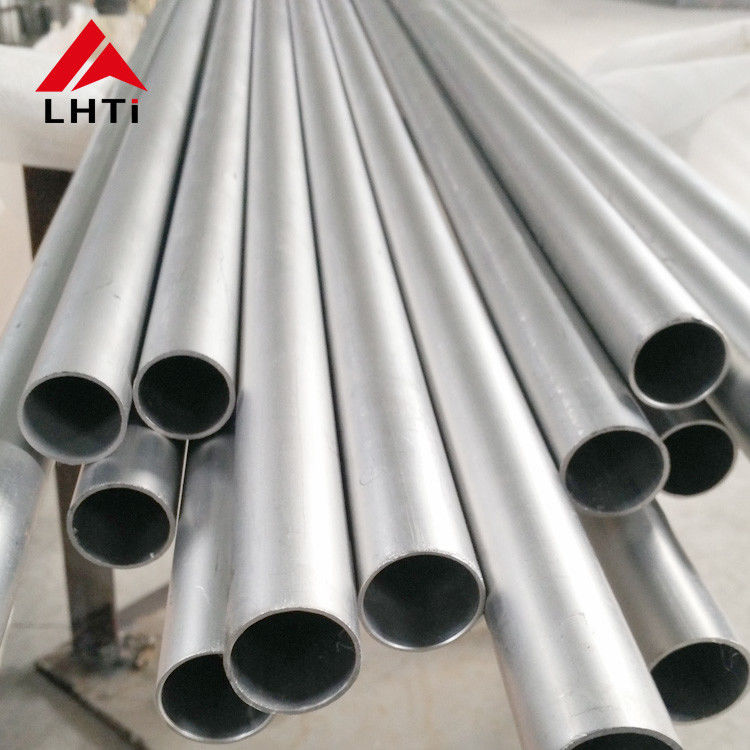

99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: 1kg of each size

Price: US dollar $23/kg-US dollar $31/kg

Packaging Details: Each tube with environmental protection bags,outside is standard plywood case

Delivery Time: 15 working days

Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability: 5 tons per month

Get Best Price
Highlight:

welding titanium tubing

,

titanium welded pipe

Key Words 1:
ASTM SB861 Titanium Tube
Key Words 2:
GR2 Titanium Seamless Tube
Key Words 3:
Gr1 Gr2 Titanium Tube
Material:
Pure Titanium
Grade:
Grade 1/Grade 2
Purity:
99.0%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
Key Words 1:
ASTM SB861 Titanium Tube
Key Words 2:
GR2 Titanium Seamless Tube
Key Words 3:
Gr1 Gr2 Titanium Tube
Material:
Pure Titanium
Grade:
Grade 1/Grade 2
Purity:
99.0%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length

ASTM B861 Titanium Seamless Tube Gr1 Gr2 Titanium Pipe Supplier For Sell



We are one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.



Name Titanium Tube
Tube Shape Round tube
Material Gr1,Gr2
Standard ASTM B861
Type

Seamless

OD 3.3mm-114mm
Wall Thickness 1.2mm or as customized
Length Max 12 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry



99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length 0

Chemcial Composition



Element N C H Fe O Al V Mo Ni Pd Ti
Type
GR.1 ≤0.03 ≤0.08 ≤0.015 ≤0.2 ≤0.18           Residual
GR.2 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25           Residual



Hot Sale Size List



OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
3.3 0.25 24 0.7 33.4 4.55
4 0.25 25 0.5 38 1.2
4.9 0.3 25 0.7 38.1 1.24
6.35 0.889 25 1.5 40 0.5
12.7 0.8 25 2 45 1.5
15.88 0.5 25 2.2 45 2
15.88 0.71 25.4 0.89 48.26 1.65
19 0.508 25.4 1.07 48.3 5.08
19 0.711 25.4 1.473 50.8 0.7
19 0.9 25.4 2.108 50.8 0.889
19 1.24 26.67 2.11 50.8 0.9
19.05 0.56 26.67 3.912 51 1.5
19.05 0.9 31.75 0.7112 56 0.8
19.05 1.24 31.75 0.889 60.3 1.5
19.05 1.65 31.75 1 60.325 0.889
19.05 3 31.8 0.89 62 2
21.34 2.11 33.4 2.77 89 2
24 0.5 33.4 3.38 114.3 3.05

99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length 1



Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.



Titanium Tube Process

99.0%Min Titanium Seamless Tube Gr1 Gr2 High Purity Max 12 Meter Length 2

Packing details


PVC packing, carton packing, or as customer request woodeng case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.



Related products



We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.
