| Place of Origin: | China |
|---|---|
| Brand Name: | LH |
| Certification: | ISO9001:2015 |
| Model Number: | LHTB |
| Minimum Order Quantity: | 10kg |
| Price: | USD$18-$45/kg |
| Packaging Details: | Standard export packing |
| Delivery Time: | 5-20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 kgs per month |
| Product Name: | Titanium Sheet/plate Titanium Foil Titanium Strip | Material: | Titanium |
|---|---|---|---|
| Thickness: | 0.5-100mm | Width: | 500-1000mm |
| Standard: | ASTM B265 | Application: | Industry |
| Length: | As Your Require | Surface: | Pickling, Polishing, Sand Blasting |
| High Light: | titanium alloy sheet,forming titanium sheet |
||

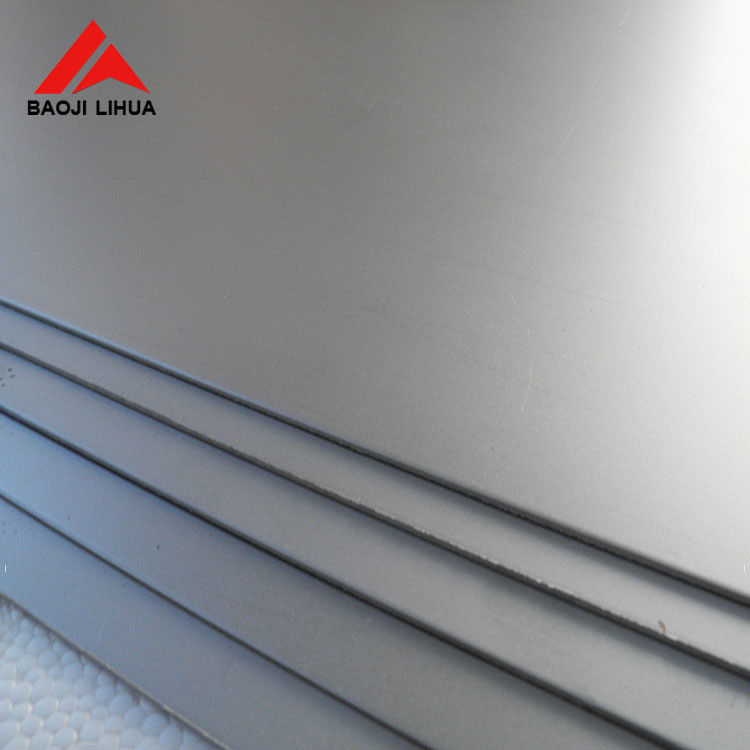

Astm B265 Gr2 Grade 5 Titanium Sheet / Plate Titanium Foil Sheet Strip
We understand that your business depends on getting the right materials in the correct size, finish, quantity, and quality. We make it our mission to provide you with exactly what you need at the lowest possible price. Our sole purpose in providing quality products and top-notched personal service.
1. Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
2. Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
3. Specification
| Specification of Titanium foil/Titanium sheet/Titanium plate | |||
| Thickness(mm) | Width(mm) | Length(mm) | |
| Titanium foil | 0.03-0.5 | 30-150 | 30-200 |
| Titanium sheet | 0.5-5 | 30-1000 | 30-2000 |
| Titanium plate | 5-60 | 200-2800 | 1000-6000 |
4.Good performance
High-quality Titanium sheet has low density, lightweight, high strength, also has good corrosion resistance,high-temperature resistance,low-temperature resistance, acid resistance, alkali resistance and so on.
Featured Products
FAQ
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us.
