Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End

Basic Information
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Minimum Order Quantity: 10kgs of each size
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-25 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Detail Information
Key Words 1: Titanium Seamless Tube Key Words 2: Welded Titanium Tube
Material: Pure Titanium , Titanium Alloy Grade: Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc
Length: Max 12 Meter Surface: Pickling Surface
Payment Term: T/T,L/C Etc Application: Chemical Industry
High Light:

12m Seamless Welded Titanium Tube

,

Annealed Seamless Titanium Tube

,

Bevelled End Titanium Tube


Product Description

 Chemical Industry use Titanium Grade 2 Seamless Pipe welded tube 13-120mm max 18000mm



Titanium tubings are delivered in straight lengths or as U-bent tubing. Titanium spiral tubing, titanium capillary tubing are available if required. All the Titanium Tubing offered by us will pass a strict test process.



Titanium tube / pipe widely used in Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.



Material:CP titanium, Titanium alloy
Grade:Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc
OD: 13~120mm
Max length:15m
WT: 0.3~12mm
Standard:ASTM B338, ASTM B337, ASTM B861, ASTM B862 etc
Status:Annealed (M)
Technology:Rolling, Welding, Machining
Form:Round, Square, Rectangular, Coil, U Tube
End:Plain End, Bevelled End

Quality testings: 100% Ultrasonic Test (UT), 100% Eddy Current Test(ET), 100% Pneumatic Test. 100% Hydraulic Test.





ASTM B265

Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015           24 170-310 240
Grade 2 0.3 0.25 0.03 0.1 0.015           20 275-450 345-480
Grade 3 0.25 0.3 0.05 0.1 0.015           18 360-480 480-700
Grade 4 0.5 0.4 0.05 0.1 0.015           15 500-530 600-680
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25         20 275-450** 345
Grade 9 0.25 0.15 0.02 0.05 0.015   2,5-3,05       15 550 650
Grade 12 0.3 0.25 0.03 0.1 0.015       0.3 0.8 25 414-460 499-600




Detailed images:

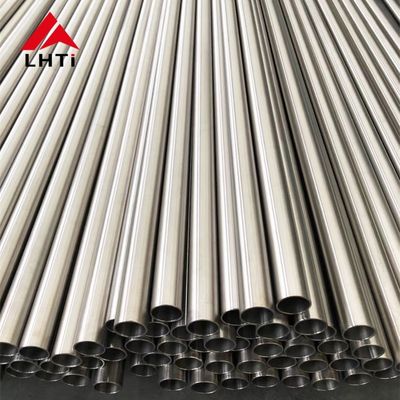

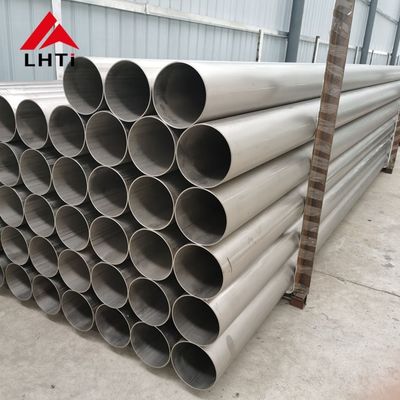

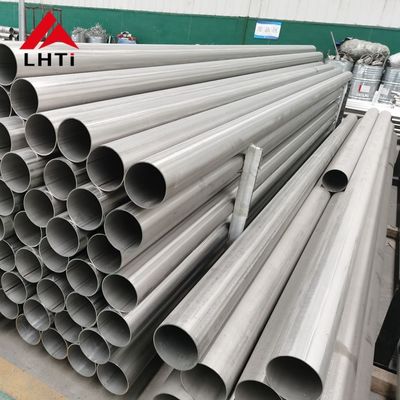

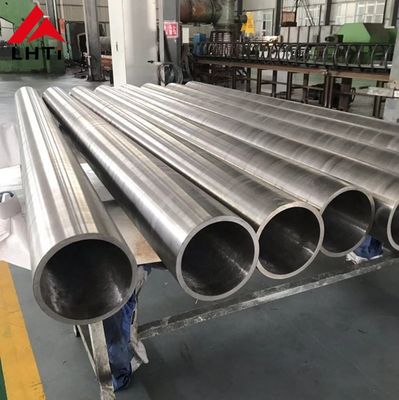

Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 0

Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 1

Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 2Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 3





The third party testing report:

titanium tube 2



Packaging and shipping:

Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 5





About our company:

our company

Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End 7





our advantagementlihua titanium rod  (1)
