Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 10kgs of each size
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-25 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
Titanium Seamless Tube |
Key Words 2: |
Welded Titanium Tube |
Material: |
Pure Titanium , Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Payment Term: |
T/T,L/C Etc |
Application: |
Chemical Industry |
Key Words 1: |
Titanium Seamless Tube |
Key Words 2: |
Welded Titanium Tube |
Material: |
Pure Titanium , Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Payment Term: |
T/T,L/C Etc |
Application: |
Chemical Industry |

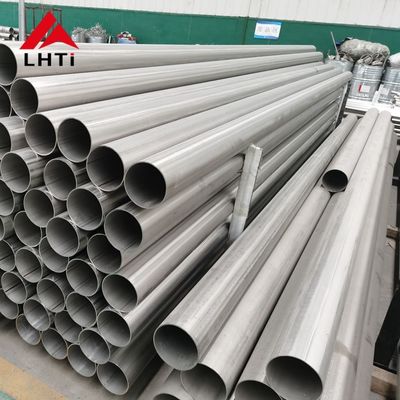

Chemical Industry use Titanium Grade 2 Seamless Pipe welded tube 13-120mm max 18000mm
Titanium tubings are delivered in straight lengths or as U-bent tubing. Titanium spiral tubing, titanium capillary tubing are available if required. All the Titanium Tubing offered by us will pass a strict test process.
Titanium tube / pipe widely used in Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.
Material:CP titanium, Titanium alloy
Grade:Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc
OD: 13～120mm
Max length:15m
WT: 0.3～12mm
Standard:ASTM B338, ASTM B337, ASTM B861, ASTM B862 etc
Status:Annealed (M)
Technology:Rolling, Welding, Machining
Form:Round, Square, Rectangular, Coil, U Tube
End:Plain End, Bevelled End
Quality testings: 100% Ultrasonic Test (UT), 100% Eddy Current Test(ET), 100% Pneumatic Test. 100% Hydraulic Test.
|
ASTM B265 |
Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Rp 0.2 | Rm |
| No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 170-310 | 240 | |||||
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 275-450 | 345-480 | |||||
| Grade 3 | 0.25 | 0.3 | 0.05 | 0.1 | 0.015 | 18 | 360-480 | 480-700 | |||||
| Grade 4 | 0.5 | 0.4 | 0.05 | 0.1 | 0.015 | 15 | 500-530 | 600-680 | |||||
| Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 275-450** | 345 | ||||
| Grade 9 | 0.25 | 0.15 | 0.02 | 0.05 | 0.015 | 2,5-3,05 | 15 | 550 | 650 | ||||
| Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 25 | 414-460 | 499-600 |
Detailed images:
The third party testing report:
Packaging and shipping:
About our company:
