1mm Grade 2 Titanium Sheet ASTM B265 For Chemicals

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Sheet
Minimum Order Quantity: 100 kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 10-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Detail Information
Standard: ASTM B265 Technology: Cold Rolled
Shape: Straight Surface: Rolling Surface
Use: Chemical Thicknes: 1mm
Product Name: Cold Rolling Gr1 Gr2 Titanium Sheet ASTM B265 1mmx1000mmx2000mm
High Light:

1mm Grade 2 Titanium Sheet

,

ASTM B265 Grade 2 Titanium Sheet

,

Chemicals Gr2 Titanium Sheet


Product Description

Gr1/Gr2 Titanium Sheet 1mmx1000mmx2000mm cold rolling surface ASTM B265





1. Product Information



Product name:GR1/Gr2 titanium plate



Specification: δ0.5mm 0.6mm 0.7mm 0.8mm 1.0mm,1.2mm,1.5mm,2mm, 3.0mm, 6.0mm, 10mm, 12mm, 15mm 16mm, 20mm,25mm,30mm,35mm etc.



Grades: TA1/GR1,TA2 / GR2, TA4 / GR4, TA1 / GR1, TC4 / GR5, TA9 / GR7, TA10 / GR12



Standard: ASTM B265



Process flow: Use high-quality sponge titanium, smelting ingot more than 2 times,

forging and hot-rolling, hot-rolling, selecting rolling method according to the product,

rolling to the finished product size, and finally flattening the sheet to finish the finished sheet.



Physical properties: The tensile strength of the Gr2 titanium sheet is> 450Mpa,

the yield value is> 360Mpa, and the elongation after breaking is> 30%.



Quality supervision: starting from the sponge titanium composition inspection, the upper,

middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic

non-destructive inspection is performed to ensure the quality of the ingot. Physical performance

test to ensure product performance.



Third-party testing institutions: SGS, TUV, BV etc.



Product advantages: Gr2 titanium has good plasticity, excellent forming properties, and

is easy to weld. High temperature working temperature can reach 300 ℃

.

Titanium plate application eares: chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries.



Chemical

Composition(%wt)

Ti Fe(max) C(max) N(max) H(max) O(max) The others
Gr2 Remainder 0.30 0.10 0.05 0.015 0.25 <=0.4



Physical properties(min) Σb
Tensile Strength
(Mpa)
σr0.2
Yield Strength
(Mpa)
δL0+50mm
Elongation
(%)
ψ
Reduction of area
(%)
  400 275 25 /





Titanium plate/sheet in stock:

Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm

Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm

Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm

Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm







2. Advantages of Titanium Materials



Characters of Titanium
1. High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
2. Anti-Corrosion Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
3. High-Temperature Resistance Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃









3. Detailed Images

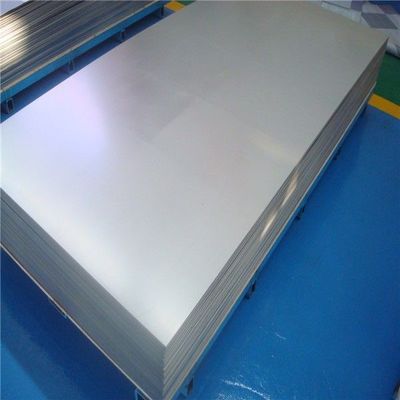

1mm Grade 2 Titanium Sheet ASTM B265 For Chemicals 0











4. FAQ





Q1.--How can you ensure the product quality?



--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.



Q2.--Can you print our LOGO on the products?



--Sure, and we welcome the customized products.



Q3.--Can we get the free sample?



--Sure.



Q4.--What about the payment terms?



--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.





05.--What is the necessary information for a inquiry?



--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.







5. Quality Assurance



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
