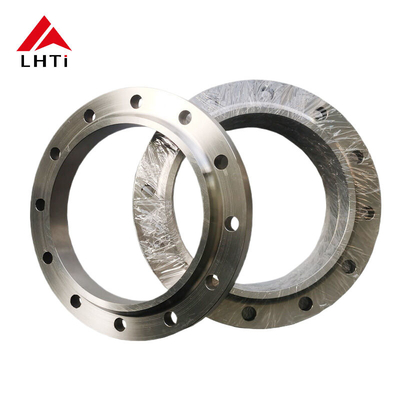

Gr2 Gr5 ASME B16.5 SORF Titanium Slip-On Flange Class 600 for Industrial Applications

ASME B16.5 Gr2 Gr5 Titanium Slip-On Flange Class 600 SORF Raised Face for Industrial Applications

When it comes to high-performance, durability, and resistance to harsh environments, the ASME B16.5 Gr2 Gr5 Titanium Slip-On Flange with Class 600 pressure rating and SORF (Slip-On Raised Face) design is the solution. This product is engineered to provide secure, leak-proof seals in high-pressure piping systems across industries like chemical processing, oil and gas, and marine.

Key Features and Benefits:

• Material Excellence: The flange is constructed using Grade 2 Titanium (Ti-Grade 2), known for its high strength-to-weight ratio, outstanding corrosion resistance, and impressive fatigue resistance. This makes it perfect for environments exposed to chemicals, seawater, or extreme temperatures.

• Design & Functionality: The Slip-On Flange design allows for easy installation onto pipes, reducing labor time. It is raised face, ensuring better sealing by creating a larger contact area, thus reducing the risk of leaks. The Class 600 rating enables the flange to handle pressures up to 600 psi, making it suitable for high-pressure applications.

• Versatility Across Industries: Ideal for critical applications in oil and gas, chemical plants, marine systems, and power generation, this flange ensures the integrity of the piping system even in the most demanding environments.

Material Specifications:

Performance Features:

• Corrosion Resistance: Titanium’s inherent resistance to rust and corrosion makes this flange perfect for seawater, chemical and high-temperature environments. Whether exposed to acidic, alkaline, or other corrosive substances, this material maintains its integrity.

• Pressure Rating: With a Class 600 pressure rating, this flange is designed to withstand high-pressure applications, ensuring long-term performance and reducing the risk of system failure.

• Easy Installation: The Slip-On design simplifies the installation process, requiring fewer tools and reducing the potential for errors during assembly.

Applications:

• Oil & Gas Industry: In pipelines that transport petroleum or gas under high pressures, this flange ensures a tight, reliable seal.

• Marine Engineering: For offshore rigs or ships, where components need to withstand harsh environments, the titanium construction offers superior resistance to seawater corrosion.

• Chemical Processing: In systems that carry aggressive chemicals, this flange’s resistance to corrosion and pressure makes it a critical part of piping connections.

• Power Generation: Ensures the integrity of power plant systems, where reliable, long-lasting connections are required.

Manufacturing Process:

1. Material Sourcing: Only high-quality titanium alloys, Grade 2 and Grade 5, are selected for their superior strength and corrosion resistance properties.

2. Precision Machining: Each flange undergoes precision machining to create the Slip-On profile and Raised Face, ensuring a secure, leak-proof connection.

3. Inspection & Testing: The flanges are subjected to rigorous pressure tests and non-destructive testing (NDT) to ensure they meet ASME B16.5 standards.

Key Specifications:

Why Choose This Flange?

• High Durability: The Grade 2 Titanium and Grade 5 Titanium alloys offer exceptional longevity, even in corrosive, high-temperature, and high-pressure environments.
• Reliable Performance: With its raised face design, the flange ensures a tighter seal, significantly reducing the risk of leaks, and maintaining the integrity of your piping system.
• Ease of Installation: The Slip-On design makes it ideal for applications where fast and simple installation is required, reducing downtime and maintenance costs.

Conclusion:

The ASME B16.5 Gr2 Gr5 Titanium Slip-On Flange Class 600 with SORF Raised Face design is the ideal solution for industrial applications that demand high strength, corrosion resistance, and pressure handling capabilities. Its versatile applications, coupled with its easy installation, make it a top choice for oil and gas, marine, chemical, and power generation industries. With its superior performance and reliability, this titanium flange is a key component in ensuring the smooth operation and longevity of your piping systems.
