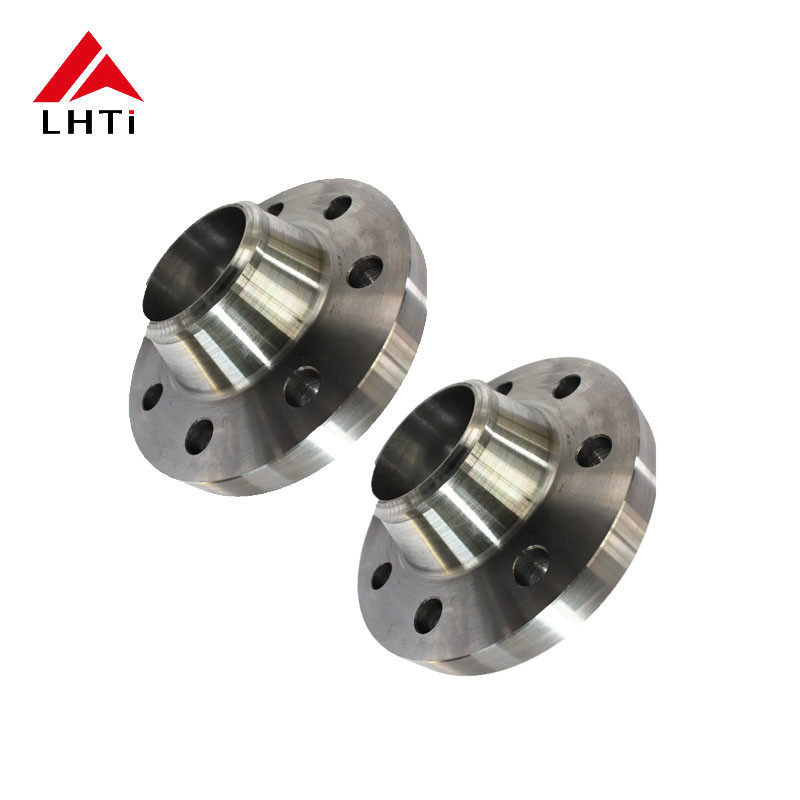

ASME B16.5 Titanium Weld Neck Flanges Class 150 for Chemical Industry

ASME B16.5 GR2 GR5 Titanium Weld Neck Flanges WNRF Class 150 for Chemical Industry

1. ASME B16.5 Titanium Weld Neck Flanges Class 150:

Our Titanium Weld Neck Flanges are crafted through various high-precision processes, including casting, forging, and machining, to meet the stringent standards set by ASME B16.5 Class 150. These flanges are designed for seamless integration into pipeline systems and equipment, ensuring secure, leak-free connections in a wide range of industrial applications.

Key Features of Our Titanium Weld Neck Flanges:

• High Durability: Made from premium-quality Titanium, these flanges offer exceptional resistance to corrosion, high temperatures, and pressures, ensuring reliable performance even in the most demanding environments.
• Leak-Free Connections: With their precise engineering, they are ideal for use in applications where ensuring a secure seal is critical to system integrity.
• Custom Sizes: We offer customization in sizing, ensuring that our Titanium flanges can be tailored to meet the specific requirements of each project.
• Superior Performance: Their inherent strength and resistance to chemical reactions make them perfect for industries requiring reliability under challenging conditions.

2. Application in Chemical Industry:

Titanium Weld Neck Flanges are extensively used in chemical processing plants, petrochemical industries, pipeline systems, and refining operations, where corrosion resistance and long-term durability are key. These flanges effectively connect pipes, valves, and other equipment, ensuring system efficiency while withstanding chemical exposure and extreme temperatures.

3. Packaging and Safe Transport:

To guarantee the protection of our flanges during shipping and handling, we ensure they are packed in strong wooden cases and pallets. This robust packaging minimizes the risk of damage and makes installation easy once the products arrive at their destination. The packaging is designed not only for security but also for convenience, allowing for quick handling and installation.

4. Flange Dimensions and Specifications

Below is a detailed table showing the key dimensions and specifications for ASME B16.5 Titanium Weld Neck Flanges Class 150. These dimensions are standardized for ease of installation and compatibility with existing pipeline systems.

5. Material Properties of Titanium Flanges

Titanium is an ideal material for high-performance applications. Here is a detailed table comparing the material properties of Grade 2 Titanium (commonly used for flanges in industrial applications) to other materials:

• Grade 2 Titanium provides superior corrosion resistance, particularly against aggressive chemicals and chloride-rich environments, making it an excellent choice for the chemical industry.

6. Pressure Rating for Titanium Weld Neck Flanges Class 150

Titanium flanges adhere to the ASME B16.5 Class 150 standard, and below is a summary of their pressure rating:

• The pressure rating of Class 150 flanges ensures that they can handle moderate pressures in various chemical systems, making them suitable for standard industrial applications.

7. Torque and Bolt Size Specifications

Proper torque application is crucial to ensure the secure installation of flanges. Below are the recommended bolt sizes and torque values for ASME B16.5 Titanium Weld Neck Flanges Class 150.

• Note: Torque values may vary depending on the type of gasket used and the specific operating conditions. It is always recommended to follow the manufacturer's guidelines for torque specifications.

Conclusion

Our ASME B16.5 Titanium Weld Neck Flanges Class 150 offer unparalleled corrosion resistance, strength, and reliability for applications in the chemical industry. Designed to withstand high pressures and aggressive environments, these flanges ensure leak-free connections and superior system integrity. Available in custom sizes, they are perfect for integration into your pipeline, petroleum, and chemical systems.

By choosing Titanium Weld Neck Flanges, you are ensuring a long-lasting solution that guarantees top-tier performance, minimal maintenance, and cost-effective operation. Order your Titanium flanges today and experience their unmatched quality and durability in demanding applications.
