Titanium has long been recognized as one of the most reliable materials for medical applications, owing to its unique combination of strength, lightweight, and biocompatibility. Among the various grades of titanium, ASTM B265 Grade 2 (Gr2) and ASTM B265 Grade 5 (Gr5) are particularly noted for their use in medical devices due to their impressive mechanical properties and corrosion resistance. This article explores the importance of these two grades of titanium bars, specifically titanium round bars, in ensuring structural integrity for medical applications.

What is ASTM B265?

ASTM B265 is a standard specification by the ASTM International (formerly known as the American Society for Testing and Materials) that covers titanium and titanium alloy plates, sheets, and bars for use in a variety of applications. For medical purposes, titanium is often used in the form of bars and round bars, as these are fabricated into components such as implants, prosthetics, and surgical instruments.

Grade 2 Titanium (Gr2): This is a commercially pure titanium that is widely used in medical applications due to its excellent corrosion resistance and moderate strength. Its composition includes small amounts of iron and oxygen, providing good ductility and formability.

Grade 5 Titanium (Gr5): Also known as Ti-6Al-4V (Titanium alloy with 6% aluminum and 4% vanadium), Grade 5 titanium is one of the most widely used titanium alloys due to its high strength, excellent corrosion resistance, and good weldability. It is ideal for more load-bearing medical components due to its superior mechanical properties.

Properties of Titanium Grades for Medical Use:

1. Corrosion Resistance

The human body presents a challenging environment for materials used in implants or prosthetics, especially due to the presence of bodily fluids like blood and sweat, which can cause corrosion over time. Titanium’s corrosion resistance is one of the key reasons it is chosen for medical devices. Both Grade 2 and Grade 5 titanium possess outstanding resistance to corrosion, making them highly durable and suitable for long-term implantation in the human body. Grade 2 titanium, being commercially pure, offers even higher corrosion resistance in some specific environments compared to alloyed grades.

2. Biocompatibility

Biocompatibility is an essential property for materials used in the human body. Titanium is known for its excellent biocompatibility, meaning it does not cause adverse reactions when in contact with body tissues. The oxide layer that naturally forms on the titanium’s surface contributes to its biocompatibility by preventing the material from reacting with bodily fluids. This is critical for implants like hip replacement joints, dental implants, and bone plates, where long-term interaction with human tissue is inevitable.

3. Strength-to-Weight Ratio

Medical devices, particularly those used for implants and prosthetics, must provide structural strength while maintaining a lightweight profile. Titanium, especially Grade 5, is well-known for its high strength-to-weight ratio. This means that medical devices made from Grade 5 titanium can support higher mechanical loads without being excessively heavy, thus improving patient comfort and reducing stress on the body. In addition, Grade 2 titanium offers an adequate strength profile, particularly when the demand for extreme strength is lower, such as in surgical instruments or non-load-bearing applications.

4. Non-toxicity and Safety

Titanium’s non-toxic nature makes it one of the safest materials for implantation. Both Grade 2 and Grade 5 titanium are highly safe for implantation due to their inert properties. When used in the human body, titanium does not leach harmful substances into surrounding tissues, which is crucial for ensuring patient health and avoiding complications.

Applications in Medical Devices:

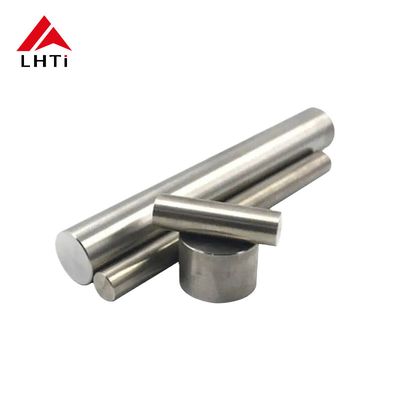

Titanium Round Bars in Medical Devices

Titanium bars, especially round bars, are used in the manufacturing of medical devices such as:

Orthopedic Implants: Titanium round bars are machined into various orthopedic implants such as joint replacements, bone screws, plates, and rods. Their strength, coupled with their ability to resist fatigue and corrosion, ensures the longevity and safety of these implants.

Dental Implants: Titanium is the material of choice for dental implants, and titanium round bars are often used to manufacture implant posts. The material’s compatibility with bone tissue and its ability to withstand the forces of chewing make it ideal for this purpose.

Surgical Instruments: Titanium round bars are also used to create surgical tools and instruments, particularly those requiring strength and precision, like forceps, scissors, and clamps.

Prosthetic Components: Prosthetic limbs, especially high-performance models, often incorporate titanium for its strength-to-weight ratio, ensuring that the device is both strong enough to bear weight and light enough for comfort and ease of movement.

Benefits of Using Titanium Round Bars for Medical Applications:

1. Precise Manufacturing: Round bars are easily machined into a wide variety of shapes and sizes, making them ideal for creating custom, precise components like implant screws, joints, and dental posts.

2. Customization: With titanium’s excellent formability, manufacturers can customize titanium bars to meet specific strength and flexibility requirements for different types of medical devices.

3. Longevity: Titanium’s resistance to corrosion and wear ensures that implants and medical devices made from titanium round bars can last for many years in the human body without the need for replacement.​

Specifications of Titanium Grades:

Conclusion: Ensuring Structural Integrity with Titanium Bars

Titanium, particularly ASTM B265 Grade 2 and Grade 5 titanium bars, plays a crucial role in the development of medical devices that require both durability and biocompatibility. The inherent properties of titanium—such as high strength, lightweight, corrosion resistance, and biocompatibility—make it the material of choice for critical applications like orthopedic implants, dental implants, surgical instruments, and prosthetics.

The use of titanium round bars ensures that these medical devices are manufactured to exact specifications, providing structural integrity and ensuring long-term safety and performance for patients. As the demand for advanced medical technologies grows, titanium will continue to be at the forefront of materials innovation, offering unparalleled reliability in the medical field.
