Pure Titanium Bar 36mm 38mm 40mm Gr2

Brand Name:	LHTi
Model Number:	LH-027
MOQ:	200kg
Price:	USD12-65 Per KG
Payment Terms:	D/A,D/P,T/T,Western Union,
Supply Ability:	1000000

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji City Shaanxi Province China

Certification:

ISO9001

Material:

Pure Titanium

Shape:

Round

Standard:

ASTM B 348

Density:

4.51 G/cm^3

Application:

Industrial

Length:

Customized

Surface:

Polished

Technique:

Forged

Packaging Details:

Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request

Supply Ability:

1000000

Highlight:

titanium alloy rod

titanium hex bar

Product Description

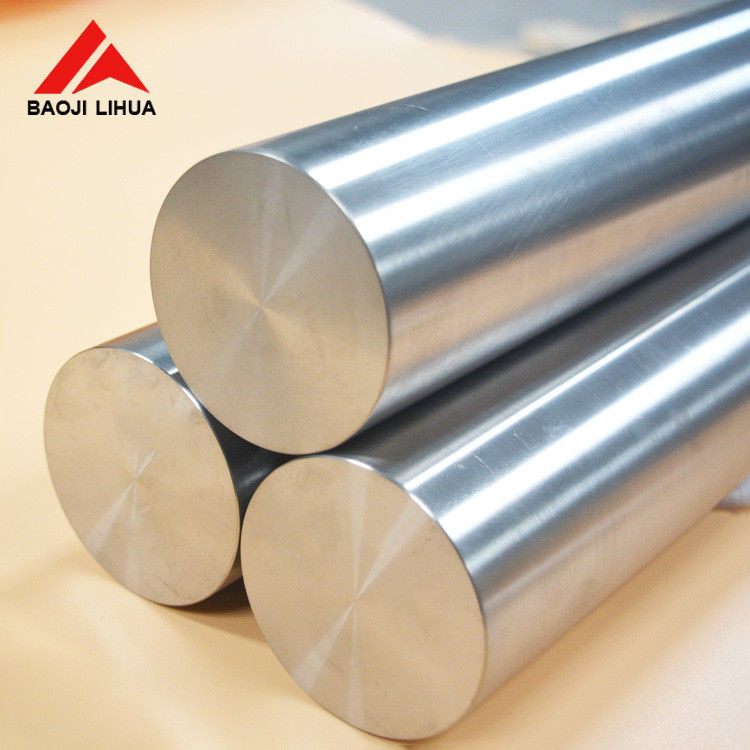

Pure Titanium Bar 36mm 38mm 40mm Gr2

These pure titanium bars and rods are offered in 36 mm, 38 mm and 40 mm diameters with a polished surface that resists rust and corrosion. They are produced to ASTM B348 in Gr1, Gr2, Gr3, Gr4, Gr5 (Ti-6Al-4V), Gr5 ELI and Ti-6Al7Nb, with a density of 4.51 g/cm3, a diameter range from 1 mm to 350 mm and customized length. The bars are supplied in round, square, flat, hexagonal and rectangular shapes for industrial, medical, salt-making, petrochemical, metallurgy, electronic and chemical uses.

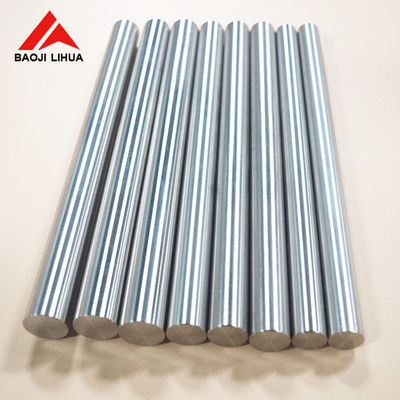

Polished pure titanium bar 36mm 38mm 40mm

Technical Specifications

Material	Pure titanium
Standard	ASTM B348, ASTM F67, ASTM F136, ISO 5832-2, ISO 5832-3
Shape	Round, square, flat, hexagonal, rectangle
Diameter	36 mm, 38 mm, 40 mm (1 mm - 350 mm overall)
Length	Customized
Density	4.51 g/cm3
Surface	Polished
Technique	Forged; hot or cold rolling, annealing
Application	Industrial

Product Specifications

Item	Detail
Material grades	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9 (Ti-3Al-2.5V), Gr5 ELI, Ti-6Al7Nb
Standards	ASTM B348, ASTM B337, ASTM B861, ASTM B862
Certificates	ISO 9001, SGS, third-party test reports
Production time	About 2 weeks

Mechanical Properties

Grade	Tensile Strength min	Yield Strength (0.2% offset) min
1	35 KSI / 240 MPa	25 KSI / 170 MPa
2	50 KSI / 345 MPa	40 KSI / 275 MPa
7	50 KSI / 345 MPa	40 KSI / 275 MPa
9	90 KSI / 620 MPa	70 KSI / 483 MPa
12	70 KSI / 483 MPa	50 KSI / 345 MPa

Applications & Titanium Advantages

Titanium bars and rods are used in the industrial, medical, salt-making, petrochemical, metallurgy, electronic and chemical fields. Titanium is light and strong, non-magnetic and highly resistant to rust and corrosion, with good mechanical stability, so the bars keep their accuracy and last longer in demanding service.

Quality, Customization & Inquiry

All titanium bars and rods come with ISO 9001 and SGS certification and detailed material test reports to ensure consistent quality and performance. Custom diameters, lengths and shapes are available, packed in plastic inside a plywood case or as the client requests. Please send your drawing or specification for a quotation.
