ASTM F136 Gr5 Ti6Al4V Titanium Rod Polished

Name: ASTM F136 Gr5 Ti6Al4V Titanium Rod Polished
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Rod
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Rod
MOQ:	30 kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

30 Kg

Packing:

Standard Export Packing

Packaging Details:

Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Supply Ability:

300000 kg per month

Highlight:

Ti6Al4V Titanium Round Rod

Gr5 Titanium Round Rod

Polished Pure Titanium Bar

Product Description

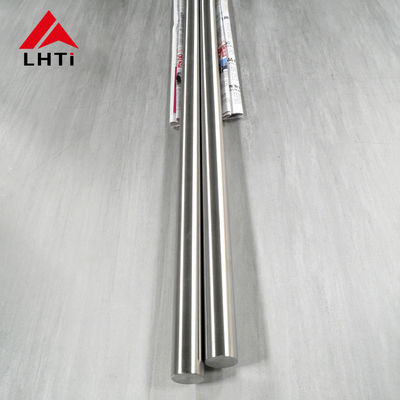

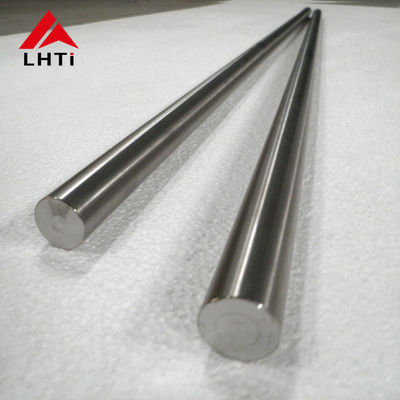

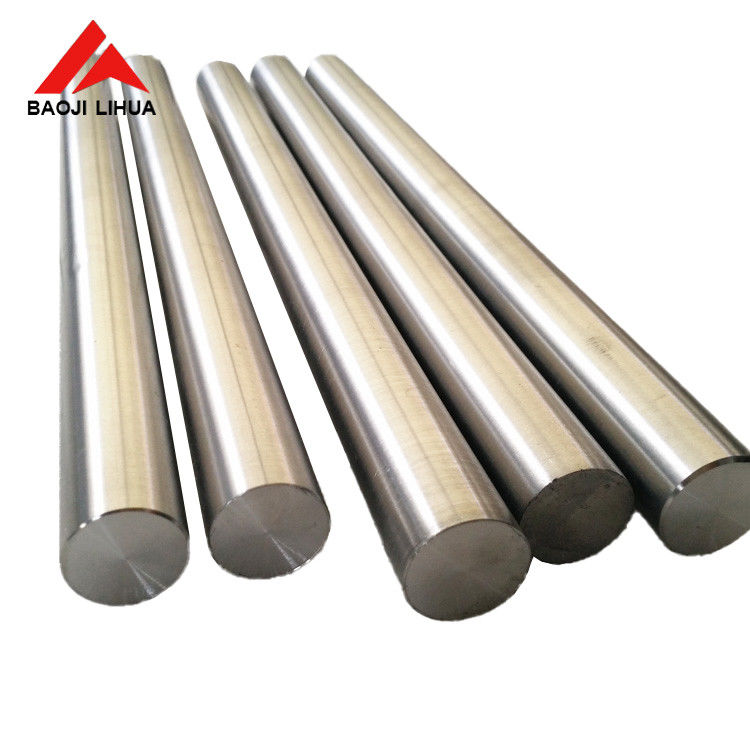

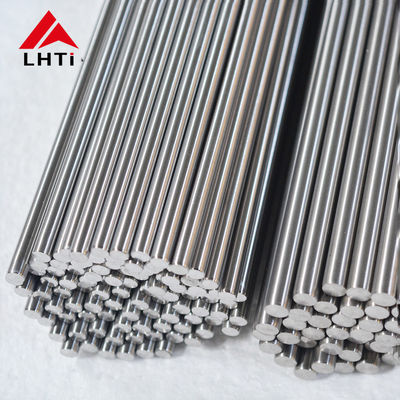

ASTM F136 Gr5 Ti6Al4V Titanium Rod Polished

This Gr5 Ti-6Al-4V titanium round rod is manufactured to ASTM F136 and ASTM B348 / ASME SB348, and is also available to ASTM F67, ISO 5832-2(3) and AMS 4928. Produced by forging and machining in the annealed condition, it offers a bright, polished or pickling surface with 3mm-350mm diameter and lengths up to 6000mm. The polished surface is free from cracks and pittings and the flat ends ensure length tolerance, making it suitable for medical, chemical and industrial engineering.

Gr5 Ti6Al4V Titanium Rod

Technical Specifications

Item Name	Titanium bar / titanium rod
Standard	ASTM B348 / ASME SB348, ASTM F67, ASTM F136, ISO 5832-2(3), AMS 4928, JIS
Grade	GR1-GR5, GR6, GR7, GR9, GR11, GR12, Ti-6Al-4V, Ti-6Al-4V ELI, GR23, TA1-TA4, TA7-TA10, TA15-TA18
Diameter	3mm-350mm (0.8mm-500mm available)
Length	500-6000mm or according to customers' request
Technique	Forging, machining
Product Status	Cold rolled (Y), hot rolled (R), annealed (M), solid
Surface	Bright, polished, pickling, sand blasted
Shape	Round, flat, square, hexagonal

Chemical Requirements (max %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Tensile Requirements

Grade	Tensile Strength min (MPa)	Yield Strength min (MPa)	Elongation (%)
Gr1	240	138	24
Gr2	345	275	20
Gr5	895	828	10
Gr7	345	275	20
Gr12	438	345	18

Applications & Titanium Advantages

This titanium rod is used in metallurgy, electronics, medical, chemical, energy, aerospace and similar fields. Ti-6Al-4V offers a high strength-to-weight ratio, excellent corrosion resistance and good machinability, and its biocompatibility suits medical components. The polished finish with no pittings supports precision assemblies and a long service life.

Quality, Customization & Inquiry

LHTi supplies under ISO 9001:2015 with TUV, SGS and BV inspection and a material test certificate to EN10204.3.1. Diameter, length, surface finish and shape can be customized and OEM service is available. Please send your specification for a quotation.
