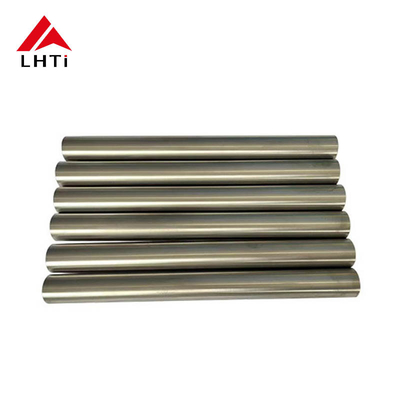

Titanium Round Bar Titanium Gr1 Gr2 Gr5 Titanium Rod Ti Rod for Industrial and Medical Uses

Product Details

Place of Origin: Baoji, China

Brand Name: LHTi

Certification: ISO9001, CE, API,etc

Model Number: Titanium Rod

Payment & Shipping Terms

Minimum Order Quantity: 200 pieces

Price: negotiable

Packaging Details: Carton, Plywood case, as per your requirement

Delivery Time: about 20-45 days for delivery

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100-200 Ton/Tons Per Month

Get Best Price
Highlight:
Commodity:
Rectangle Frame Coil Tube
Key Word:
Titanium Rod
Outer Diameter:
9.52/12.7/15.9/19.1/25.4/32/33.4/38.1mm
Type:
Welded/Seamless
Certifications:
ASTM, ASME, ISO
Tolerance:
±0.005 Inch
Electrical Conductivity:
Low
Technique:
Seamless Or Welding
Materials:
Titanium And Titanium Alloy
Diameter:
1-100mm
Titanium Coil Tube:
ASTM B861/B338
Inside Diameter:
0.5~100mm
Payment Term:
T/T,Paypal,Western Union Etc
Surface Treatment:
Polished
Hardness:
HV200
Commodity:
Rectangle Frame Coil Tube
Key Word:
Titanium Rod
Outer Diameter:
9.52/12.7/15.9/19.1/25.4/32/33.4/38.1mm
Type:
Welded/Seamless
Certifications:
ASTM, ASME, ISO
Tolerance:
±0.005 Inch
Electrical Conductivity:
Low
Technique:
Seamless Or Welding
Materials:
Titanium And Titanium Alloy
Diameter:
1-100mm
Titanium Coil Tube:
ASTM B861/B338
Inside Diameter:
0.5~100mm
Payment Term:
T/T,Paypal,Western Union Etc
Surface Treatment:
Polished
Hardness:
HV200
Titanium Round Bar Titanium Gr1 Gr2 Gr5 Titanium Rod Ti Rod for Industrial and Medical Uses

Titanium Round Bar Titanium Gr1 Gr2 Gr5 Titanium Rod Ti Rod for Industrial and Medical Uses



Introduction to Titanium Rod:

A titanium rod is a cylindrical piece of titanium metal, widely used in a variety of industries due to its unique combination of properties. Titanium itself is a lightweight, strong, and highly corrosion-resistant metal, and when formed into rods, it offers a versatile solution for many demanding applications. Titanium rods can be manufactured in various grades, with Grade 1 and Grade 5 (Ti-6Al-4V) being the most commonly used grades for general industrial and aerospace purposes.


Key Properties of Titanium Rod:

  1. Strength-to-Weight Ratio:
    Titanium rods are known for their exceptional strength-to-weight ratio. Titanium is as strong as steel but much lighter, making it ideal for applications where reducing weight is critical without sacrificing structural integrity.

  2. Corrosion Resistance:
    Titanium has outstanding resistance to corrosion, even in harsh environments such as seawater, chemicals, and high temperatures. This makes titanium rods a preferred choice for industries like marine, chemical processing, and aerospace, where materials are exposed to corrosive elements.

  3. Biocompatibility:
    Titanium is highly biocompatible, meaning it is non-toxic and unlikely to cause adverse reactions when in contact with living tissue. This property makes it ideal for medical applications, such as implants, prosthetics, and surgical tools.

  4. Durability and Longevity:
    Titanium rods are known for their long lifespan. Their resistance to corrosion and wear allows them to perform reliably over extended periods, even in challenging environments.

  5. Ductility and Formability:
    While titanium is strong, it is also relatively ductile (especially in lower grades like Grade 1). This means titanium rods can be easily formed, bent, or welded to create customized components for different applications.

  6. Non-reactive:
    Titanium is non-reactive with many chemicals, including oxygen, nitrogen, and carbon. This makes titanium rods ideal for applications in environments where other metals might degrade or corrode quickly.



Summary Table of Specifications:

Grade Chemical Composition (Approx.) Tensile Strength (MPa) Yield Strength (MPa) Elongation Primary Applications
Grade 1 Ti (min) 99.5%, Fe max 0.2%, O max 0.18% 240 MPa (35 ksi) 170 MPa (25 ksi) 24% Medical implants, marine, chemical processing
Grade 2 Ti (min) 99.2%, Fe max 0.3%, O max 0.25% 350 MPa (50.8 ksi) 275 MPa (40 ksi) 20% Chemical processing, piping, aerospace
Grade 5 Ti 90%, Al 5.5-6.75%, V 3.5-4.5%, Fe max 0.3%, O max 0.20% 895 MPa (130 ksi) 828 MPa (120 ksi) 10% Aerospace, military, high-performance applications




Titanium Round Bar Titanium Gr1 Gr2 Gr5 Titanium Rod Ti Rod for Industrial and Medical Uses 0

Advantages of Grade 1 Grade 2 Grade 5 Titanum Rods:

Grade 1 titanium is the purest form of titanium, with a high level of corrosion resistance and excellent mechanical properties. It is commonly used in applications that require these characteristics, especially in industries such as aerospace, medical, and chemical processing. Below are some of the key advantages of Grade 1 titanium rods:

1. Excellent Corrosion Resistance

  • Superior Performance in Corrosive Environments: Grade 1 titanium offers outstanding resistance to corrosion, especially in harsh environments such as saltwater, acids, and alkalis. This makes it ideal for applications in marine environments, chemical processing, and medical devices.
  • Non-reactive in Body Fluids: Its high corrosion resistance also makes it suitable for medical implants, as it does not react with bodily fluids, reducing the risk of complications.

2. High Strength-to-Weight Ratio

  • Lightweight but Strong: Grade 1 titanium rods have a low density (approximately 4.5 g/cm³), making them lightweight yet strong. This high strength-to-weight ratio is crucial in industries like aerospace, where minimizing weight while maintaining strength is essential for performance and fuel efficiency.
  • Energy Efficiency: In aerospace and automotive applications, the reduced weight can help improve energy efficiency and performance.

3. Biocompatibility

  • Safe for Medical Implants: Grade 1 titanium is highly biocompatible, meaning it is non-toxic and does not cause adverse reactions when implanted into the human body. This makes it an excellent choice for medical applications like bone implants, dental implants, and surgical devices.
  • No Allergic Reactions: It is hypoallergenic, meaning it does not typically cause allergic reactions in people, which is crucial in medical and consumer goods applications.

4. Excellent Weldability and Formability

  • Easy to Work With: Grade 1 titanium has excellent weldability and can be formed into a variety of shapes, including rods, sheets, and tubes. It is commonly used in industries where complex shapes or custom sizes are needed.
  • Fabrication Flexibility: Its excellent formability allows for the production of custom components without compromising material properties, making it suitable for both mass production and bespoke applications.

5. Low Density

  • Lightweight Construction: Grade 1 titanium is one of the lightest metals available, making it ideal for applications where reducing weight is crucial without sacrificing structural integrity. This is particularly advantageous in industries like aerospace, automotive, and sporting goods.



Differences between Different Grades:



Grade Key Advantages
Grade 1 - Excellent corrosion resistance (seawater, acids)
  - Biocompatible for medical implants
  - High ductility and formability for easy fabrication
  - Low density, ideal for lightweight applications
  - Cost-effective for non-critical strength applications
Grade 2 - Stronger than Grade 1, ideal for moderate strength needs
  - Superior corrosion resistance in aggressive environments
  - Good strength-to-weight ratio, suitable for aerospace and marine industries
  - Biocompatible, used in medical implants
  - Good weldability and formability for complex parts
Grade 5 - High strength and fatigue resistance, ideal for high-performance applications
  - Excellent strength-to-weight ratio for aerospace, military, and automotive industries
  - Good corrosion resistance, particularly in oxidizing environments
  - Versatile for various applications, including aerospace, sports equipment, and medical implants
  - Excellent weldability and high-temperature performance

Titanium Round Bar Titanium Gr1 Gr2 Gr5 Titanium Rod Ti Rod for Industrial and Medical Uses 1
Chemical Composition



Titanium Bar
Grade Ti Al V Nb Fe, max C, max N, max H, max O, max
Gr1 Bal / /   0.20 0.08 0.03 0.015 0.18
Gr2 Bal / /   0.30 0.08 0.03 0.015 0.25
Gr3 Bal / /   0.30 0.08 0.05 0.015 0.35
Gr4 Bal / /   0.50 0.08 0.05 0.015 0.40
Gr5 ELI
Ti-6Al-4VELI
Bal 5.5~6.5 3.5~4.5   0.25 0.08 0.05 0.012 0.13
Ti-6Al-7Nb Bal 5.5-6.5 / 6.5-7.5 0.25 0.08 0.08 0.009

0.20




Applicationsof Titanium Rod:

Titanium rods are highly versatile and are used in a wide range of industries due to their unique combination of strength, light weight, and exceptional corrosion resistance. The applications of titanium rods span several fields, including aerospace, medical, marine, automotive, and chemical processing. Below are some of the main applications of titanium rods:

1. Aerospace Industry

  • Structural Components: Titanium is often used in the aerospace industry for structural components such as wing spars, fuselage parts, and landing gear due to its high strength-to-weight ratio.
  • Fasteners and Bolts: Titanium rods are used to make fasteners (screws, bolts, nuts) in aircraft, as titanium provides excellent strength while keeping the weight low, which is crucial for fuel efficiency.
  • Engine Components: Titanium rods are used in the construction of turbine engines, exhaust components, and other high-temperature applications in jet engines due to their ability to withstand high stresses and temperatures.
  • Spacecraft Components: Titanium rods are used in spacecraft for parts that require high strength and resistance to both temperature extremes and corrosion.

2. Medical Industry

  • Implants and Prosthetics: Titanium is widely used in medical implants, including bone screws, rods, and joint replacements, because of its biocompatibility (non-toxic and non-reactive with the human body), strength, and resistance to corrosion. For example, titanium rods are used in spinal surgeries to stabilize the spine.
  • Dental Implants: Titanium rods are commonly used for dental implants, as they integrate well with bone and are highly resistant to corrosion from bodily fluids.
  • Surgical Instruments: Titanium rods may also be used to make surgical tools and devices due to their strength, resistance to corrosion, and lightweight properties.

3. Marine Industry

  • Ship and Submarine Components: Titanium rods are used in marine environments for parts exposed to seawater, such as propeller shafts, heat exchangers, and pumps, because titanium is highly resistant to corrosion by seawater and salt.
  • Offshore Oil Rigs: In the harsh offshore environment, titanium rods are used for structural supports and other critical components that need to withstand extreme conditions without deteriorating due to corrosion.

4. Chemical and Petrochemical Industry

  • Piping and Heat Exchangers: Titanium rods are used in the construction of heat exchangers, reactors, and piping in chemical processing plants, especially those that handle corrosive materials such as acids, alkalis, and salts. Titanium’s resistance to corrosion makes it ideal for these applications.
  • Distillation and Evaporation Equipment: Titanium rods and other forms are used in distillation columns, evaporators, and other processing equipment where chemical corrosion would otherwise damage traditional materials.

5. Automotive Industry

  • Performance Parts: In high-performance sports cars and racing vehicles, titanium rods are used to manufacture parts like connecting rods, exhaust systems, and suspension components. Titanium's strength-to-weight ratio provides performance improvements by reducing weight without compromising strength.
  • Engine Components: Some high-performance engines use titanium rods and valves for their ability to withstand high temperatures and pressures, reducing the overall weight of the engine.

6. Sports Equipment

  • Golf Clubs and Bicycle Frames: Titanium rods are used to make lightweight and durable frames for bicycles, golf clubs, and other sports equipment. The strength and light weight of titanium make it ideal for enhancing performance.
  • Ski Poles and Fishing Rods: Some sports gear, like ski poles or fishing rods, can also be made from titanium rods for added durability, corrosion resistance, and lightness.

7. Defense Industry

  • Weapon Components: Titanium rods are used in military applications such as missiles, armor-piercing ammunition, and other advanced defense systems, where high strength, lightweight materials, and resistance to corrosion are critical.
  • Armor and Structural Components: Titanium is used in military vehicles and aircraft to enhance the strength and durability of armor while minimizing weight.

8. Jewelry and Consumer Goods

  • Jewelry: Titanium rods are used in the production of jewelry, particularly rings, bracelets, and watches, because of their attractive appearance, corrosion resistance, and hypoallergenic properties.
  • Eyewear Frames: Titanium is often used in high-end eyeglass frames due to its lightweight nature, strength, and corrosion resistance.
