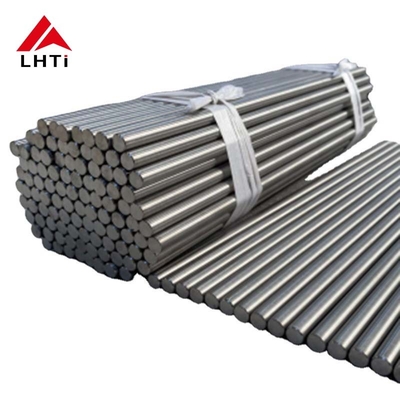

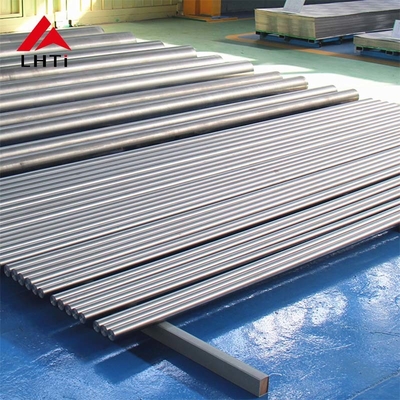

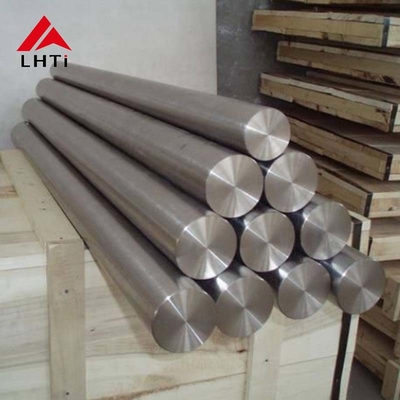

Lightweight And Durable Titanium Bar For Industrial Applications GR2 GR3 GR4 GR5 Grades

Name: Lightweight And Durable Titanium Bar For Industrial Applications GR2 GR3 GR4 GR5 Grades
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-bar
Price: 26.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LH-bar
MOQ:	500kg
Price:	US dollar $25/pc--US dollar $28/pc
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Certifications:

ASTM, ASME, ISO

Regular Size:

4*8ft/ 4*10ft/ 1500*3000mm

Dimension:

Customized Or Standardisation

Widthness:

30mm---100mm

Colour:

Silver

Classification:

Grade 9

Dimention:

OD(5-114)X(0.3—10)XL1200mmMax

Heat Capacity:

3kw~500kw Or More

Temperature:

Max45Celsius

Outer Diameter:

OD32mm OD38mm

Weldability:

Good

Wall Thickness:

Customized

Type:

Welded/Seamless

Strength:

High

Techology:

Rolling Extrusion

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5 tons per month

Highlight:

Durable Titanium Bar GR2

GR3 Lightweight Titanium Bar

Industrial Applications Titanium Bar GR4

Product Description

Medical titanium bar

Application: Industrial
Diameter:5-350mm
Shape: Round
Length: Max6000mm
Technique: Rolled
Grade:GR2,GR3,GR4,GR5 Ti6AL4V ELI,Gr23 6AL7Nb,13Nb13Zr
weight:4.51g/cm3

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Advantages of Titanium Bars
Titanium bars are renowned for their impressive combination of properties that make them ideal for a wide range of applications.

High Strength: One of the most significant advantages of titanium bars is their exceptional strength-to-weight ratio. They offer high strength comparable to steel while being about 45% lighter. This characteristic makes titanium bars particularly appealing in industries like aerospace and automotive, where reducing weight can lead to enhanced performance and fuel efficiency.

Corrosion Resistance: Titanium bars exhibit outstanding resistance to corrosion, especially in environments that contain chlorides, such as marine settings or chemical processing facilities. This durability allows them to maintain their integrity over time, even when exposed to harsh conditions, making them a preferred choice for various industrial applications.

Biocompatibility: Another critical advantage is their biocompatibility. Titanium bars are non-toxic and well-tolerated by the human body, making them suitable for medical implants. This property is vital in the development of devices such as orthopedic implants, dental fixtures, and prosthetics, where long-term compatibility with biological tissue is essential.

High-Temperature Resistance: Titanium bars also perform exceptionally well under high temperatures. They maintain their strength and structural integrity, making them suitable for applications that involve elevated thermal conditions, such as in aerospace components and industrial machinery.

Name	Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape	Round
Material	Gr1,Gr2
Standard	ASTM B338
SMLS Or Welded	Seamless(SMLS)
OD	19mm (1.25")/ 25.4mm, 38mm
Wall Thickness	1.2mm
Length	6m long
End	Plain End, Beveled End, Threaded
Certificate	EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc
Application	Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry

Grade	N(%)	C(%)	H(%)	Fe(%)	O(%)	Ti	Other , max
1	≤0.03	≤0.08	≤0.015	≤0.20	≤0.18	Bal	≤0.4
2	≤0.03	≤0.08	≤0.015	≤0.30	≤0.25	Bal	≤0.4

Grade	Tensile Strength(min)		Yeild Strength(0.2% offset))				Elongation(%)
	ksi	MPa	Min		Max
	ksi	MPa	Ksi	Mpa	Ksi	Mpa
1	35	240	15	140	45	310	≥24
2	60	400	40	275	65	450	≥20

ASTM B338 titanium Bar

Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm
Length:3000mm /6000mm and longger to 9000mm

2.titanium tube photo

3.Factory show

4.Production Process

5.Related products

6. Comprehensive Quality Control System

We maintain a robust quality control system that oversees every stage of titanium production, from sponge material to finished products.

Selection of Raw Materials: We exclusively use high-quality raw materials, specifically grade 0 or 1 titanium sponge.

Advanced Testing Equipment:

MPI Testing Machine: Analyzes the chemical composition of titanium products.

Turbine Detectors: Identify surface defects as small as 3mm.

Ultrasonic Inspection: Detects internal defects below 3mm.

Infrared Measurement Devices: Measure the entire diameter of the bar from top to bottom.

Professional Inspections: All products undergo thorough inspections by three qualified quality control specialists before delivery.

Quality Certification: We provide an "EN10204-1 quality certificate" for each order.

Additionally, our materials are routinely sent to the Physical and Chemical Testing Center of West Metal Materials Co., Ltd., a reputable testing institution in China, for comprehensive quality verification.

More details please feel free contact us.
