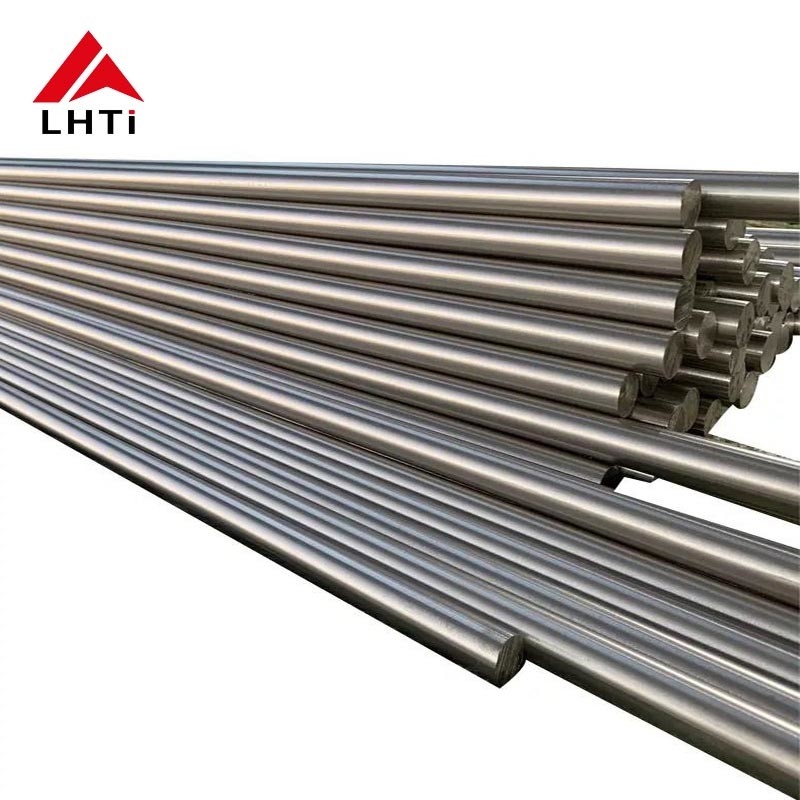

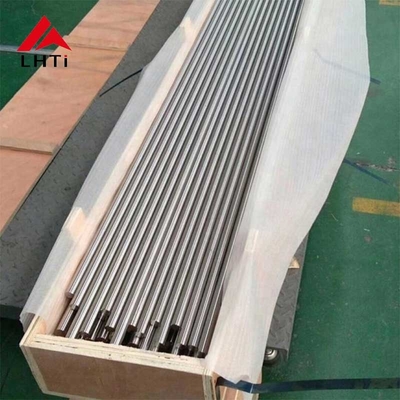

Medical titanium bars play a vital role in various applications, especially for surgical implants like bone nails and dental components. These bars adhere to industry standards such as ASTM F67, ASTM F136, and ISO 5832-3, ensuring quality and reliability. Available in material grades including Grade 2, Grade 5, and Grade 23 (Ti6Al4V ELI), they typically range in diameter from 5mm to 20mm, with a standard length of 3000mm or customizable options. The bars feature a round shape and a bright surface finish, meeting tolerance grades of h7, h8, h9, and h10. Supplied in an annealed state, they are certified under ISO 9001, with optional third-party inspections (e.g., SGS, TUV). Packaging is offered in export cartons or plywood cases, and quality assurance includes an EN10204.3.1 certificate, ensuring compliance with rigorous quality standards.
Production Process:
Raw Materials: Titanium sponge or recycled titanium scrap.
Manufacturing Techniques: Melting, refining, casting, forging, rolling, and machining.
Quality Control: Strict adherence to ASTM and other international standards for material composition, mechanical properties, and dimensional accuracy.
Quality Testing:
Chemical Composition Analysis: Ensures the titanium meets specified alloy requirements.
Mechanical Testing: Includes tensile strength, yield strength, elongation, and hardness testing.
Non-Destructive Testing: Ultrasonic testing, and dye penetrant inspection to detect surface and internal defects.
Dimensional Inspection: Verification of diameter, length, and straightness.
Certification: Issuance of mill test certificates (MTC) according to EN 10204/3.1 or equivalent standards.
The Importance of Grade 5 Titanium in Medicine
Titanium alloys are crucial in the medical field, thanks to their unique properties that meet the strict demands of medical applications. Among these, Grade 5 titanium is especially preferred, particularly in bar form for a variety of medical devices and implants. This article examines the features, advantages, and applications of Grade 3 titanium bars, underscoring their significant role in enhancing patient care and advancing healthcare technology.
| Name |
Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape |
Round |
| Material |
Gr1,Gr2 |
| Standard |
ASTM B338 |
| SMLS Or Welded |
Seamless(SMLS) |
| OD |
19mm (1.25")/ 25.4mm, 38mm |
| Wall Thickness |
1.2mm |
| Length |
6m long |
| End |
Plain End, Beveled End, Threaded |
| Certificate |
EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry |
| Grade |
N(%) |
C(%) |
H(%) |
Fe(%) |
O(%) |
Ti |
Other , max |
| 1 |
≤0.03 |
≤0.08 |
≤0.015 |
≤0.20 |
≤0.18 |
Bal |
≤0.4 |
| 2 |
≤0.03 |
≤0.08 |
≤0.015 |
≤0.30 |
≤0.25 |
Bal |
≤0.4 |
| Grade |
Tensile Strength(min) |
Yeild Strength(0.2% offset)) |
Elongation(%) |
| ksi |
MPa |
Min |
Max |
| Ksi |
Mpa |
Ksi |
Mpa |
| 1 |
35 |
240 |
15 |
140 |
45 |
310 |
≥24 |
| 2 |
60 |
400 |
40 |
275 |
65 |
450 |
≥20 |
ASTM B338 titanium Bar
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm
Length:3000mm /6000mm and longger to 9000mm
Advantages of Titanium Bars
Titanium bars are renowned for their impressive combination of properties that make them ideal for a wide range of applications.
High Strength: One of the most significant advantages of titanium bars is their exceptional strength-to-weight ratio. They offer high strength comparable to steel while being about 45% lighter. This characteristic makes titanium bars particularly appealing in industries like aerospace and automotive, where reducing weight can lead to enhanced performance and fuel efficiency.
Corrosion Resistance: Titanium bars exhibit outstanding resistance to corrosion, especially in environments that contain chlorides, such as marine settings or chemical processing facilities. This durability allows them to maintain their integrity over time, even when exposed to harsh conditions, making them a preferred choice for various industrial applications.
Biocompatibility: Another critical advantage is their biocompatibility. Titanium bars are non-toxic and well-tolerated by the human body, making them suitable for medical implants. This property is vital in the development of devices such as orthopedic implants, dental fixtures, and prosthetics, where long-term compatibility with biological tissue is essential.
High-Temperature Resistance: Titanium bars also perform exceptionally well under high temperatures. They maintain their strength and structural integrity, making them suitable for applications that involve elevated thermal conditions, such as in aerospace components and industrial machinery.
Low Density: The low density of titanium bars provides significant weight savings in applications requiring structural strength. This feature is particularly beneficial in sectors like construction and manufacturing, where lightweight materials can enhance overall design and functionality.
Titanium Bar Applications:
Aerospace: Structural components, landing gear, turbine blades.
Medical: Surgical implants, prosthetics, orthopedic devices.
Industrial: Chemical processing equipment, marine components, sports equipment.
Automotive: Exhaust systems, suspension components.
Consumer Goods: Watches, jewelry.
2.titanium tube photo
3.Factory show
4.Production Process
5.Related products
6. Comprehensive Quality Control System
We maintain a robust quality control system that oversees every stage of titanium production, from sponge material to finished products.
Selection of Raw Materials: We exclusively use high-quality raw materials, specifically grade 0 or 1 titanium sponge.
Advanced Testing Equipment:
MPI Testing Machine: Analyzes the chemical composition of titanium products.
Turbine Detectors: Identify surface defects as small as 3mm.
Ultrasonic Inspection: Detects internal defects below 3mm.
Infrared Measurement Devices: Measure the entire diameter of the bar from top to bottom.
Professional Inspections: All products undergo thorough inspections by three qualified quality control specialists before delivery.
Quality Certification: We provide an "EN10204-1 quality certificate" for each order.
Additionally, our materials are routinely sent to the Physical and Chemical Testing Center of West Metal Materials Co., Ltd., a reputable testing institution in China, for comprehensive quality verification.
More details please feel free contact us.
