ASTM B861 Gr2 & Gr7 Seamless Titanium Tube in 32mm-51mm OD, Lightweight / titanium welded tube

Name: ASTM B861 Gr2 & Gr7 Seamless Titanium Tube in 32mm-51mm OD, Lightweight / titanium welded tube
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-01
Price: 27.00 USD
Availability: InStock

Brand Name:	LHTI
Model Number:	LH-01
MOQ:	1kg of each size
Price:	US dollar $23/kg-US dollar $31/kg
Payment Terms:	L/C, T/T, D/P, Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi, China

Certification:

ISO9001

Packaging Details:

Each tube with environmental protection bags,outside is standard plywood case

Supply Ability:

5 tons per month

Product Description

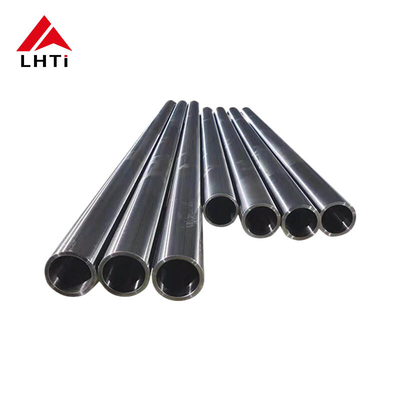

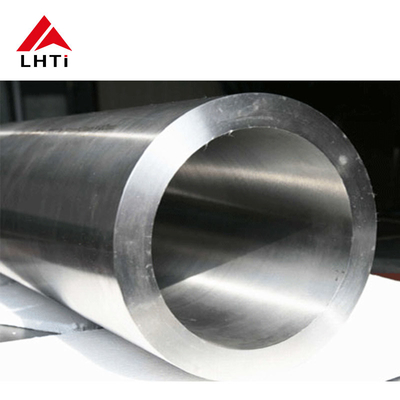

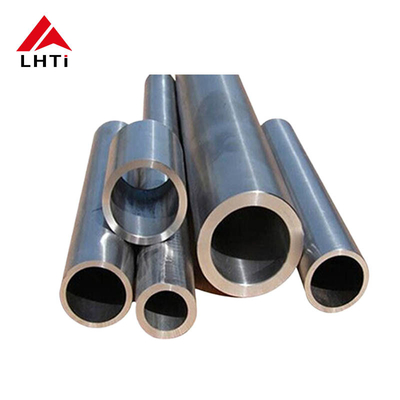

ASTM B861 Gr2 & Gr7 Seamless Titanium Tube in 32mm-51mm OD, Lightweight

The ASTM B861 Gr2 & Gr7 Seamless Titanium Tube in 32mm-51mm OD, Lightweight features advanced processing, offering lightweight, high strength, and excellent mechanical properties. Its high performance makes it ideal for use in heat exchange equipment, including column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators, and transmission pipes. Additionally, it provides a longer service life and requires minimal maintenance.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

ASTM B861 Gr2 & Gr7 Seamless Titanium Tube in 32mm-51mm OD, Lightweight / titanium welded tube 0
