GR9 Titanium Forged Bar Titanium rod with Pickling Surface 3mm-350mm Diameter

Name: GR9 Titanium Forged Bar Titanium rod with Pickling Surface 3mm-350mm Diameter
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Rod
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Rod
MOQ:	30 kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

30 Kg

Packing:

Standard Export Packing

Packaging Details:

Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Supply Ability:

300000 kg per month

Highlight:

GR9 Titanium Forged Bar

350mm Diameter Titanium Forged Bar

Pickling Surface Titanium Forged Bar

Product Description

ASTM B348 Titanium forged Bar GR9 Titanium rod

Gr9 Titanium Alloys Bar specifications: diameter 8 -- 200MM*L
Gr9 Titanium Alloys Bar chemical composition: Ti-margin
Al: 2.0-3.5 ,V:1.5 to 3.0
Fe < 0.25, C < 0.08, N < 0.05 ,H < 0.015, O < 0.15
Mechanical properties of Gr9 Titanium Alloys Bars: tensile strength > 650MPA
Yield strength > 525MPA
The elongation is >8%
The reduction of section > 20%

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Item Name	Titanium bar/titanium rod
Standard	ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material	Gr1 Gr2 Gr3 Gr4 Gr5
Diameter	0.8~500mm
Length	500~6000mm or according to customers' request
Product Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape	Round bar, square bar , hex bar
Feature	1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking
Certificate	ISO9001:2015, TUV, material test certificate acc EN10204.3.1

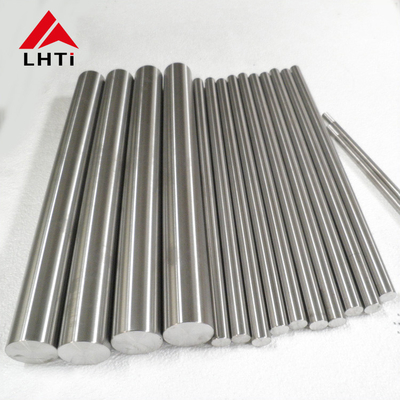

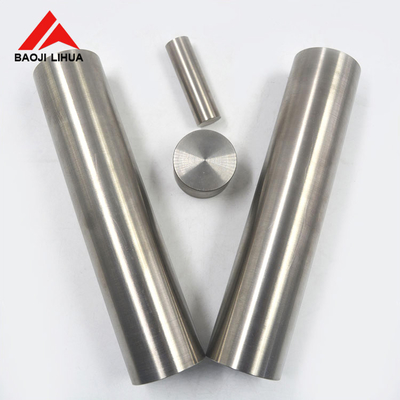

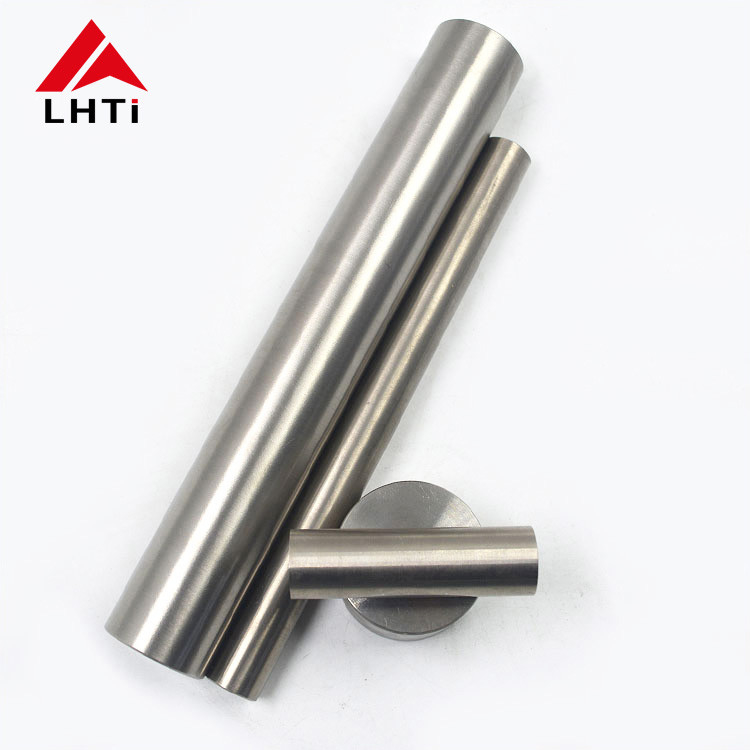

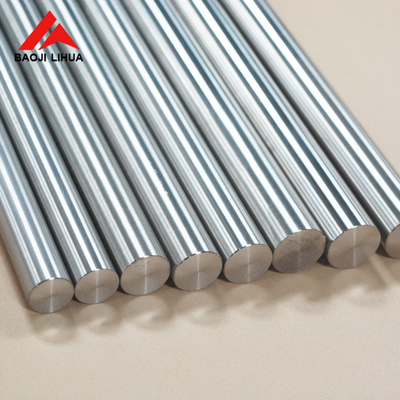

Product picture:
