Home Products

Titanium Rod

3mm-350mm Diameter Medical Titanium Alloys ASTM Grade 5 for Medical Applications

Name: 3mm-350mm Diameter Medical Titanium Alloys ASTM Grade 5 for Medical Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Rod
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Rod
MOQ:	30 kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

30 Kg

Packing:

Standard Export Packing

Packaging Details:

Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Supply Ability:

300000 kg per month

Highlight:

ASTM Grade 5 Medical Titanium Alloys

350mm Diameter Medical Titanium Alloys

3mm Diameter Medical Titanium Alloys

Product Description

ASTM Grade 5 Medical Titanium Alloys

This Medical Titanium Alloys are equipped with advanced process, which can be an ideal material used in the manufacture of medical devices, prostheses or artificial organs and auxiliary treatment devices implanted in the human body. Compared with ordinary product on the market, our Medical Titanium Alloys have high specific strength, mechanical properties close to human bones. They also have the characteristics of fatigue resistance, corrosion resistance and excellent biocompatibility.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Item Name	Titanium bar/titanium rod
Standard	ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material	Gr1 Gr2 Gr3 Gr4 Gr5
Diameter	0.8~500mm
Length	500~6000mm or according to customers' request
Product Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape	Round bar, square bar , hex bar
Feature	1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking
Certificate	ISO9001:2015, TUV, material test certificate acc EN10204.3.1

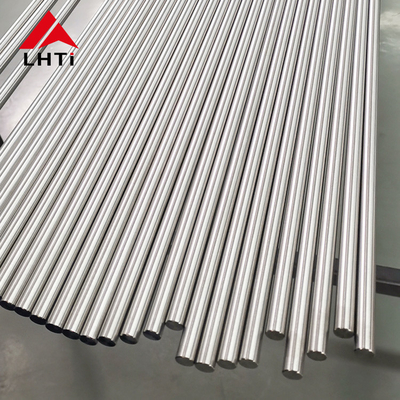

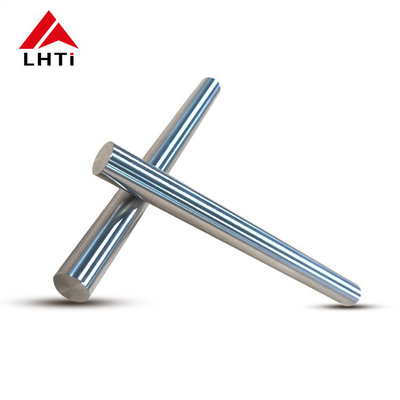

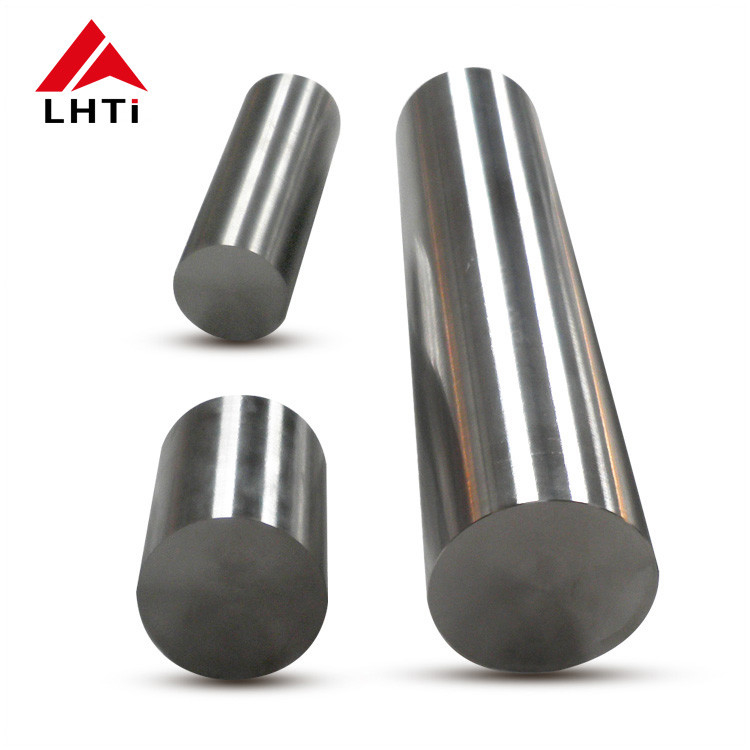

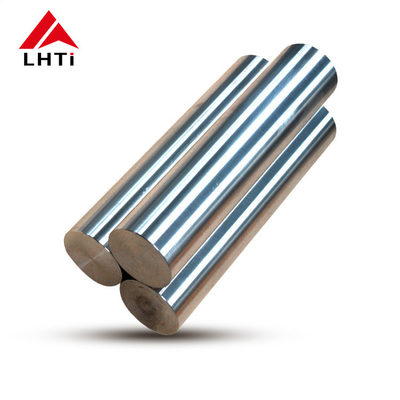

Product picture:
