GR5 Ti6Al4V Square Titanium block with ASTM B 348 Standard

Name: GR5 Ti6Al4V Square Titanium block with ASTM B 348 Standard
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-031
Price: 34.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LH-031
MOQ:	100kg
Price:	USD20-48 Per KG
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji City Shaanxi Province China

Certification:

ISO9001

Material:

Pure Titanium

Shape:

Square

Standard:

ASTM B 348

Density:

4.51 G/cm^3

Application:

Industrial

Length:

Customized

Surface:

Polished

Technique:

Forged

Packaging Details:

Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request

Supply Ability:

5Ton per month

Highlight:

Square Titanium block

GR5 Titanium block

Ti6Al4V Titanium block

Product Description

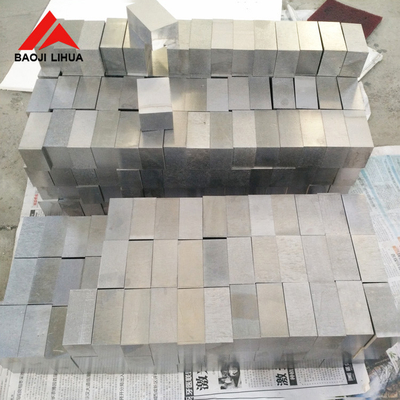

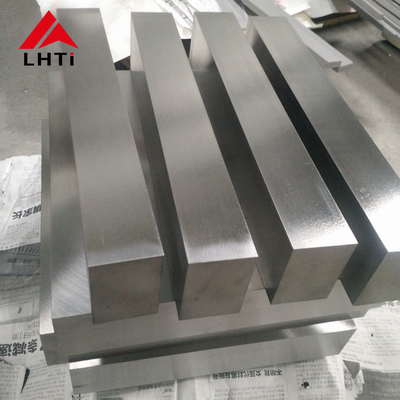

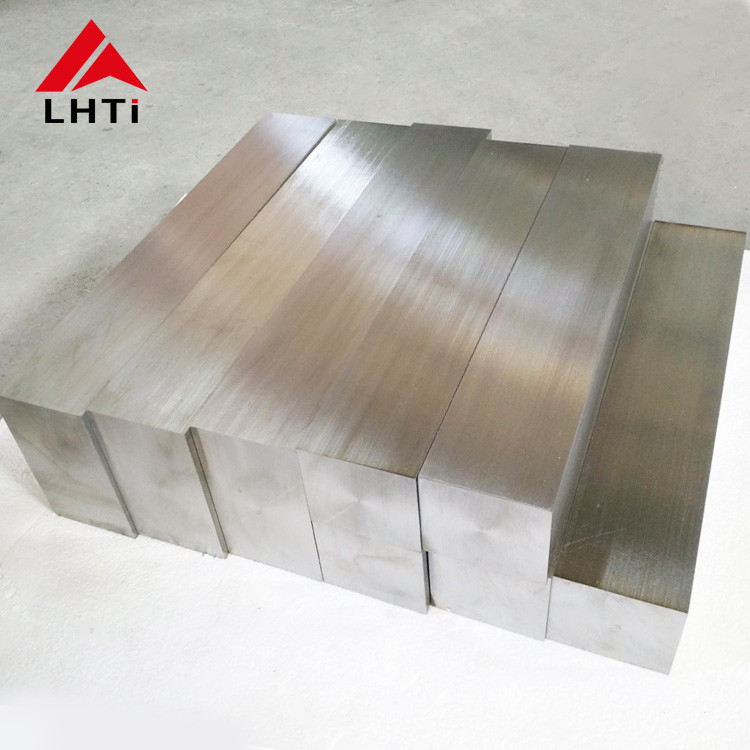

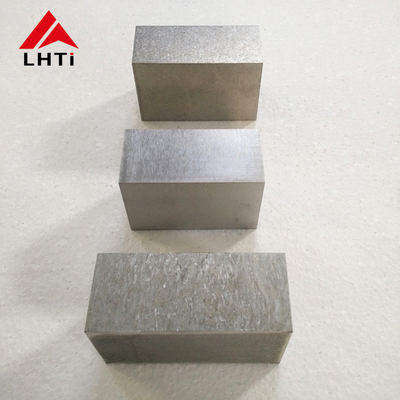

GR5 Ti6Al4V Square Titanium block

Ti6Al4V Titanium Forged Blocks use high-end equipment to ensure the perpendicularity flatness and finish and we can supply the best quality for client according to their specific requirements. Titanium alloy refers to a variety of titanium and other metals made of alloy metal, and its main characteristics are high strength, good corrosion resistance, high heat resistance, can be widely used in various fields.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
