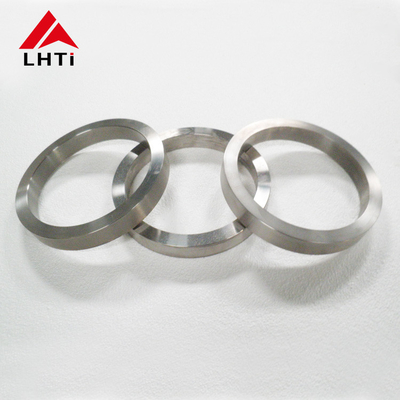

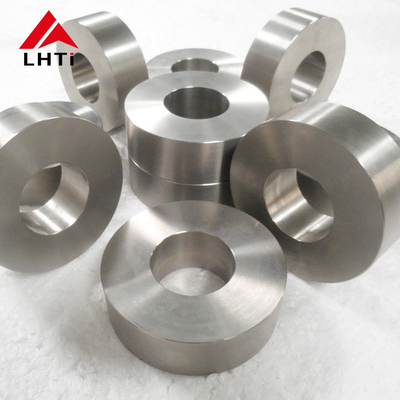

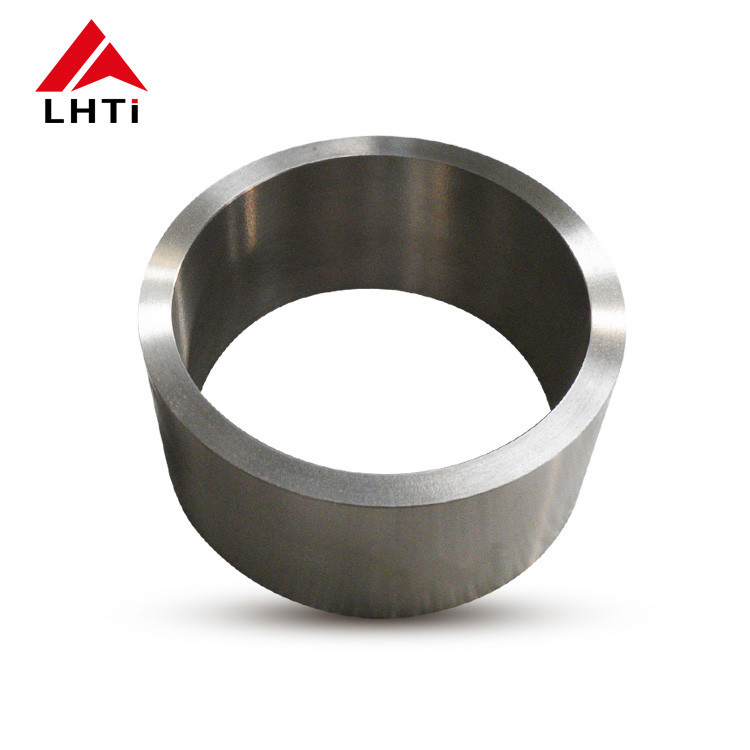

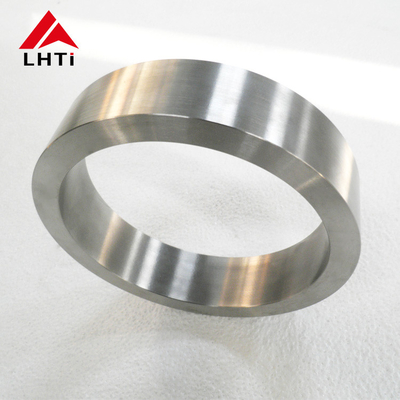

ASTMB381 Gr5 Titanium Forged Ring with Thickness Range 40-400mm

Brand Name:	LIHUA
Model Number:	LH-TH
MOQ:	1 pieces
Price:	US dollar $15/kg--US dollar $35/kg
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium Forged Ring

Material:

Gr5

Application:

Chemical Industry

Outer Diameter:

200-1300mm

Inner Diameter:

100-900mm

Height:

35-250mm

Thickness:

40-400mm

Quality Control:

Ultrasonic Testing

Packaging Details:

Plywood box for export

Supply Ability:

5000 kgs per month

Highlight:

Gr5 Titanium Forged Ring

400mm Titanium Forged Ring

Product Description

Titanium Forged Ring ASTMB381 Titanium Ring

Mtaerials:Titanium GR2/ GR7/GR12/GR16
Dimension:As customer's requests and drawings
Technic:Forging+machining
Application:Heat exchangers/ pressure vessels for Petrochemical,Pharmeceutical and Food industry
Standard:ASTM B38/ASME SB381
Key word:Titanium forgings

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
