ASTM B381 Hot Rolled Annealed Titanium Forged Rings Excellent Corrosion Resistance

Name: ASTM B381 Hot Rolled Annealed Titanium Forged Rings Excellent Corrosion Resistance
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-Ring
Price: 23.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LH-Ring
MOQ:	5 pcs
Price:	USD12.00-35.00 per kg
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Standard::

ASTM B381

Production Process::

Hot Rolled/Annealed

Wall Thickness::

0.5mm-25mm

Production Process:

Hot Rolled/Annealed

Application::

Chemical Engineering & Petrochemical Technology

Characteristic 1::

Excellent Corrosion Resistance

Surface::

Bright Polished

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

200000 kg per month

Product Description

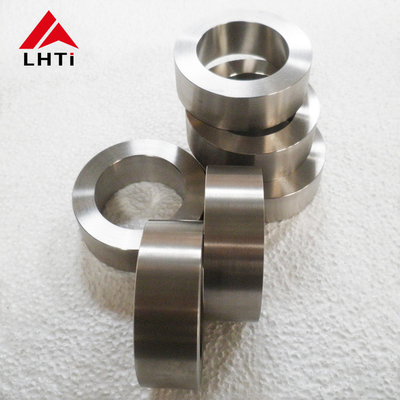

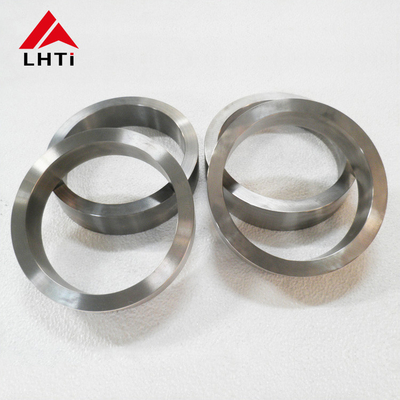

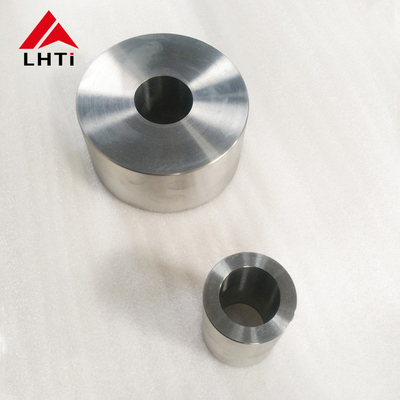

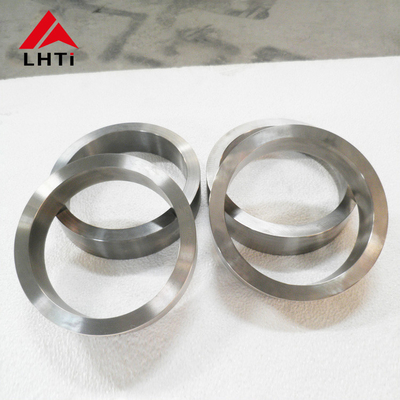

ASTM B381 Hot Rolled Annealed Titanium Forged Rings Excellent Corrosion Resistance

ASTM B381 Titanium Forged Rings

A astm b381 Titanium Forged rings was made in three steps. The process flows grains to the tangential and radial directions and provides mechanical properties such as strength, ductility, and impact and fatigue resistance to the workpiece.

The first is to punch the preform from the ingot,

Second, make a hole in the center to form a doughnut,

Third: put the preform on the ring mill and expand the material to the appropriate size.

	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

ASTM B381 Hot Rolled Annealed Titanium Forged Rings Excellent Corrosion Resistance 0
