Product Details
Place of Origin: Baoji, China
Brand Name: LHTi
Certification: ISO9001, TUV etc.
Model Number: LH-wire
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: USD16.00-28.00 per kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 3-15 work days
Payment Terms: L/C, D/P, T/T, Western Union，paypal
Supply Ability: 200000 kg per month
Material:: |

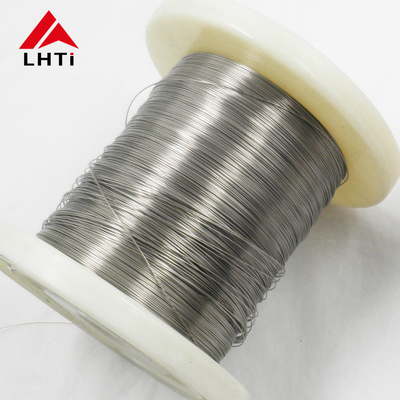

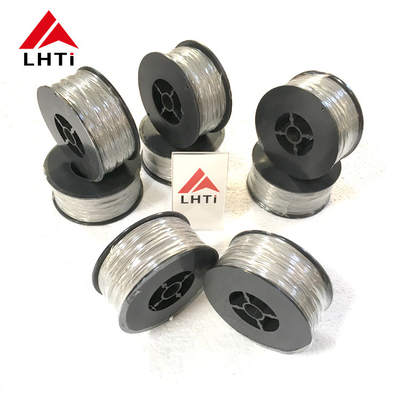

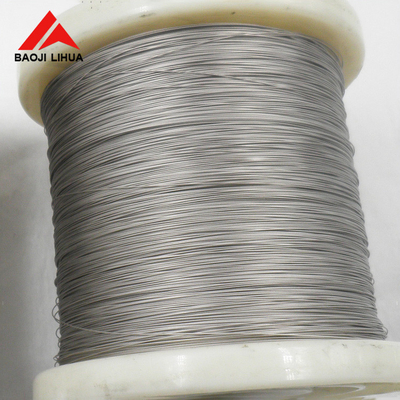

ASTM F67/F136 Titanium Wire For Medical Use Factory Supply |
Grade:: |
Gr1, Gr2 |
Diameter:: |
0.5mm-3mm |
Straight Wire Length:: |
1000mm-3000mm |
MOQ:: |
20 Kg |
Package Box:: |
5kg Per Plastic Box, Or As Your Request |
Corrosion Resistance: |
Excellent |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate:: |
ISO9001:2008 |
Processing Service:: |
Bending, Cutting |
Package Coil:: |
10~15kg ,or As Per Buyer Requirement |
Advantage:: |
Corrosion Resistance, High Strength, Light Quality |
Material:: |
ASTM F67/F136 Titanium Wire For Medical Use Factory Supply |
Grade:: |
Gr1, Gr2 |
Diameter:: |
0.5mm-3mm |
Straight Wire Length:: |
1000mm-3000mm |
MOQ:: |
20 Kg |
Package Box:: |
5kg Per Plastic Box, Or As Your Request |
Corrosion Resistance: |
Excellent |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate:: |
ISO9001:2008 |
Processing Service:: |
Bending, Cutting |
Package Coil:: |
10~15kg ,or As Per Buyer Requirement |
Advantage:: |
Corrosion Resistance, High Strength, Light Quality |
| Material | Pure titanium and Titanium alloy |
| Titanium Grade |
GR1/GR2/GR3/Gr4/GR5/GR7/GR9/GR12/Gr5Eli/Gr23 ERTi-1/ERTi-2/ERTi-3/ERTi-4/ERTi-5Eli/ERTi-7/ERTi-9/ERTi-11/ERTi-12 Ti15333/Nitinol Alloy |
| Standard | AWS A5.16/ASTM B863/ASME SB863, ASTMF67, ASTM F136, ISO-5832-2(3) etc |
| Shape | Titanium Coil Wire/Titanium Spool Wire/Titanium Straight Wire |
| Wire Gauge | Dia(0.06--6) *L |
| Process | Bar billets-hot rolling-drawing-annealing-strength-pickling |
| Surface | Polishing, picking, acid washed, black oxide |
| Main Technique | Hot Forged; Hot Rolled; Cold drawn; Straighten etc |
| Material Milling Certificate | According to. EN 10204.3.1 Including Chemical composition and Mechanical property |
| Application | Welding, Industry, Medical, Aerospace, Electronic etc |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
