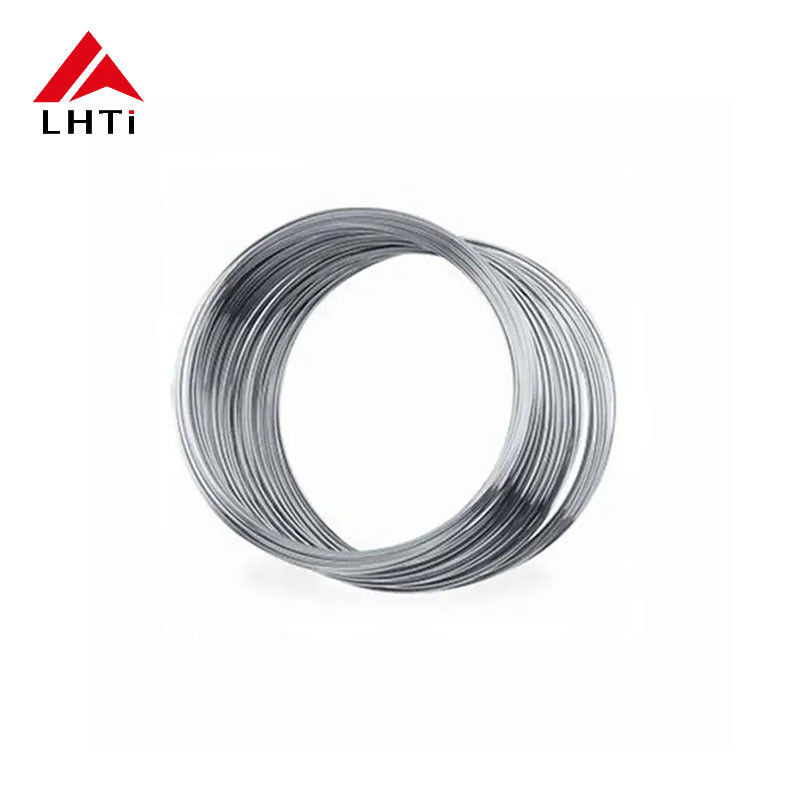

Gr5 Titanium Welding Wire – Round Ti Alloy for 3D Printing

Brand Name:	LHTi
Model Number:	LH-wire
MOQ:	20kg
Price:	USD16.00-28.00 per kg
Payment Terms:	L/C,D/P,T/T,Western Union，paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Thermal Conductivity:

21.9 W/(m·K)

Service:

OEM, ODM

Finish:

Annealed

Capacity:

2 Tons/month

Technique:

Cold Rolling

Wire Gauge:

1.2MM

Type:

Straight / Spool / Coil

Density:

4.51 G/cm³

Standard:

AWS A5.16/AMSE SFA 5.16

Strength:

180Mpa~900Mpa

Size:

Dia. 0.02 ~ 5.0 Mm (Straight Or Coil)

Magnetic Property:

Non-magnetic

Biocompatibility:

High

Yield Strength:

800-2000MPa

Keywords:

Titanium Wire

Packaging Details:

Standard export packing,plywood case outside

Supply Ability:

200000 kg per month

Highlight:

3D Printing Titanium Welding Wire

Grade 1 Titanium Welding Wire

Grade 5 Titanium Welding Wire

Product Description

Gr5 Titanium Welding Wire – Round Ti Alloy for 3D Printing

Gr5 Titanium Welding Wire is a versatile round titanium alloy wire specifically designed for 3D printing and welding applications, offering exceptional corrosion resistance, high strength-to-weight ratio, and biocompatibility.

ErTi1 Round Titanium Welding Wire

ErTi1 refers to a grade of titanium alloy wire commonly used in tungsten inert gas (TIG) welding and metal inert gas (MIG) welding processes, as well as for 3D printing applications. This filler rod is made from commercially pure titanium (Grade 1) and is typically used for welding applications involving titanium and its alloys.

Key Characteristics of ErTi1 Welding Wire

Composition: Commercially pure titanium (Grade 1) known for excellent corrosion resistance, high formability, and moderate strength
Applications: Aerospace, medical, marine, and chemical processing industries
Welding Methods: TIG Welding (GTAW) and MIG Welding (GMAW)
Corrosion Resistance: Suitable for marine environments, chemical industries, and aerospace applications
Strength Profile: Ideal for joining low-stress components where corrosion resistance is primary concern

Titanium Alloy Welding Wire Grades

Grade 5 (Ti-6Al-4V)

Composition: 90% titanium, 6% aluminum, and 4% vanadium
Properties: High strength, excellent corrosion resistance, and good fatigue strength
Applications: Aircraft parts, chemical equipment, and high-performance components

Grade 23 (Ti-6Al-4V ELI)

Composition: Similar to Grade 5 with lower oxygen levels for enhanced biocompatibility
Properties: High biocompatibility and low oxygen content
Applications: Medical implants and surgical devices

3D Printing with Titanium

Titanium wire and powder materials are extensively used in additive manufacturing processes including Selective Laser Melting (SLM) and Electron Beam Melting (EBM).

Titanium 3D Printing Materials

Titanium Grade 5 (Ti-6Al-4V): For parts requiring high strength-to-weight ratios in aerospace, medical, and automotive applications
Titanium Grade 23 (Ti-6Al-4V ELI): For medical applications requiring high biocompatibility, particularly bone prostheses and dental implants
Pure Titanium (Grade 1 or Grade 2): For applications requiring superior corrosion resistance in chemical processing or marine industries

Advantages of Titanium Welding Wire in 3D Printing

Strength and Durability: Outstanding strength-to-weight ratios for lightweight structural components
Corrosion Resistance: Withstands extreme environments including sea water, acidic solutions, and high temperatures
Customization: Enables creation of complex geometries and internal structures
Reduced Waste: Material-efficient process using only necessary material
Design Flexibility: Production of complex shapes optimized for specific functions

Key Applications in 3D Printing

Aerospace: Lightweight components such as aircraft brackets, ducting, and engine parts
Medical Devices: Custom implants, prosthetics, and surgical tools
Marine Engineering: Parts exposed to seawater environments including valves, pumps, and fasteners
Automotive: High-strength, lightweight brackets, engine components, and frames

Chemical Specifications

AWS	UNS	C	O	N	H	I	Al	V	Pd
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

Titanium Wire Specifications

Parameter	Specifications
Material	Pure titanium and Titanium alloy
Titanium Grade	GR1/GR2/GR3/Gr4/GR5/GR7/GR9/GR12/Gr5Eli/Gr23 ERTi-1/ERTi-2/ERTi-3/ERTi-4/ERTi-5Eli/ERTi-7/ERTi-9/ERTi-11/ERTi-12 Ti15333/Nitinol Alloy
Standard	AWS A5.16/ASTM B863/ASME SB863, ASTMF67, ASTM F136, ISO-5832-2(3) etc
Shape	Titanium Coil Wire/Titanium Spool Wire/Titanium Straight Wire
Wire Gauge	Dia(0.06--6) *L
Process	Bar billets-hot rolling-drawing-annealing-strength-pickling
Surface	Polishing, picking, acid washed, black oxide
Main Technique	Hot Forged; Hot Rolled; Cold drawn; Straighten etc
Material Milling Certificate	According to. EN 10204.3.1 Including Chemical composition and Mechanical property
Application	Welding, Industry, Medical, Aerospace, Electronic etc

Base Metal Grade Recommendations

ASTM Base Metal Grade	Base Metal	UTS(min.) ksi[Mpa]	YS(min.) ksi[Mpa]	Recommended Filler Metal
Grade 1	Unalloyed Ti CP1	35[240]	20[138]	ERTi-1
Grade 2	Unalloyed Ti CP2	50[345]	40[275]	ERTi-2
Grade 4	Unalloyed Ti CP4	80[550]	70[483]	ERTi-4
Grade 5	Ti 6AL-4V	130[895]	120[828]	ERTi-5
Grade 7	Ti 0.15Pd	50[345]	40[275]	ERTi-7

ErTi1 Round Titanium Welding Wire and Titanium Alloy Wire (Grade 1, Grade 5) are versatile materials used in welding, 3D printing, and advanced manufacturing processes. ErTi1 wire is ideal for TIG and MIG welding of pure titanium parts, while Grade 5 (Ti-6Al-4V) and Grade 23 (Ti-6Al-4V ELI) alloys are used in applications requiring greater strength or biocompatibility. Choosing the right grade ensures optimal performance based on specific application requirements.
