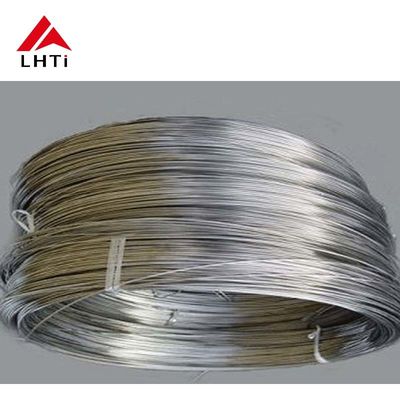

ASTM B348 Grade 1 Grade 2 Pure Titanium Welding Wire with High Corrosion Resistance

Name: ASTM B348 Grade 1 Grade 2 Pure Titanium Welding Wire with High Corrosion Resistance
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Wire
Price: 171.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Wire
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Packing:

Standard Exported Wooden Cases

Grade:

Grade 1, Grade 2, Grade 5

Certifications:

ASTM B348, ASTM B863, ISO 9001:2015

Package:

Standard Export Package

Surface Treatment:

Polished

Materials:

Gr2

Length:

Customizable

Specific Heat:

0.124-0.132KJ/Kg·K

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Industrial Settings Titanium Wire

ASTM B348 Certified Titanium Wire

Customizable Length Titanium Wire

Product Description

ASTM B348 Gr1 Gr2 Pure Titanium Welding Wire

ASTM B863 Titanium Welding Rod is a high-quality titanium wire engineered for industrial applications, delivering exceptional performance in welding, manufacturing, and precision tasks.

Product Overview

Available in Grade 1 (GR1) and Grade 2 (GR2), these pure titanium rods provide superior corrosion resistance, high strength, and outstanding weldability. Manufactured in strict compliance with ASTM B863 standards, they are ideal for diverse industrial applications from chemical processing to aerospace components.

Key Features

High Corrosion Resistance: Excellent resistance to aggressive environments including chemical processing, marine applications, and high-temperature conditions
Superior Strength-to-Weight Ratio: Exceptional strength with lightweight properties, critical for aerospace and automotive industries
Excellent Weldability: Maintains integrity after welding for high-quality joints in manufacturing and assembly processes
Biocompatibility: Grade 1 titanium is suitable for medical implants and instruments due to its biocompatible properties
Versatile Applications: Wide-ranging industrial use across aerospace, marine, chemical processing, automotive, and medical sectors

Available Grades

Grade 1 (GR1): 99.5% purity titanium with extremely low strength but excellent corrosion resistance and formability. Primarily used in medical and chemical processing industries.

Grade 2 (GR2): 99.2% purity titanium offering balanced strength and corrosion resistance. Commonly used in aerospace, marine, and automotive industries.

Technical Specifications

Attribute	Grade 1 (GR1)	Grade 2 (GR2)
Purity	99.5% Titanium	99.2% Titanium
Tensile Strength	240 MPa (min)	345 MPa (min)
Yield Strength	170 MPa (min)	275 MPa (min)
Elongation	24% (min)	20% (min)
Corrosion Resistance	Excellent	Excellent
Weldability	Excellent	Excellent
Primary Applications	Chemical, Medical, Aerospace	Aerospace, Automotive, Marine

Packaging & Dimensions

Available in standard lengths with custom lengths available upon request. Diameters range from 0.5 mm to 5 mm. Packaged in corrosion-resistant materials to ensure integrity and quality during transit.

Certification & Compliance

ASTM B863 compliant • ISO 9001 Certified for quality control • RoHS Compliant for environmental and health standards

Industrial Applications

Welding applications requiring pure titanium rods with excellent mechanical and corrosion properties • Chemical processing plants for tanks, valves, and reactors • Aerospace components for extreme conditions • Marine environments exposed to saltwater and corrosive elements • Medical implants, surgical tools, and instruments
