Home Products

Titanium Rod

ASTM B348 Gr2 Titanium Metal Rod For Fishing Rod

Name: ASTM B348 Gr2 Titanium Metal Rod For Fishing Rod
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: TC21
Price: 40.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	TC21
MOQ:	10kg
Price:	USD 30-50 / kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability:	5 Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Product Name:

Titanium Bar

Standard:

ASTM B348

Material:

TC21

Shape:

Round, Square, Flat, Hex

Diameter:

6-350mm

Length:

Max 6000mm

Surface:

Bright

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

5 Ton per month

Highlight:

Gr2 Titanium Metal Rod

ASTM B348 Titanium Metal Rod

Fishing Rod Titanium Metal Rod

Product Description

ASTM B348 Gr2 Titanium Metal Rod For Fishing Rod

Certification:ISO9001:2015,SGS,TUV
Standard:ASTM B348/AMS4928
Shape: Round bar/hex rod
Application:Medical,industry aerospace
Diameter:≥1.0mm
Length:≤6000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade:GR5 .Ti6AL-4V. ti6al4v eli.grade 5
Material:Titanium
Surface:Polished

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
TC11	0.05	0.08	0.012	0.25	0.15	5.8~7.0	/	/	2.8~3.8	/	bal
TA18	0.05	0.08	0.015	0.25	0.12	2.0~3.5	1.5~3.0	/	/	/	bal
TC20	0.05	0.08	0.009	0.25	0.20	5.5~6.5	/	/	/	/	bal
TC21	0.05	0.08	0.015	0.15	0.15	5.2~6.8	/	/	2.2~3.3	/	bal
TC26	0.05	0.08	0.012	0.25	0.15	/	/	/	/	/	bal

Tensile requirements
	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
Gr1	35	240	20	138	24
Gr2	50	345	40	275	20
Gr5	130	895	120	828	10
Gr7	50	345	40	275	20
Gr12	70	438	50	345	18

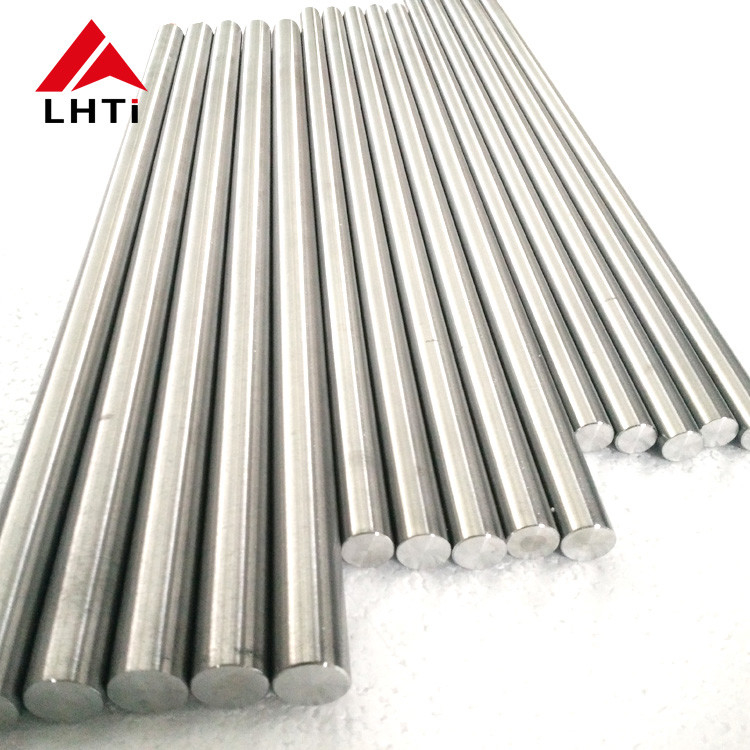

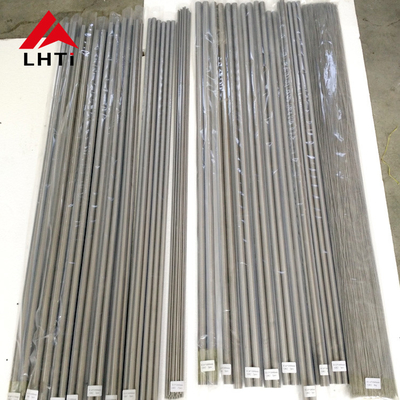

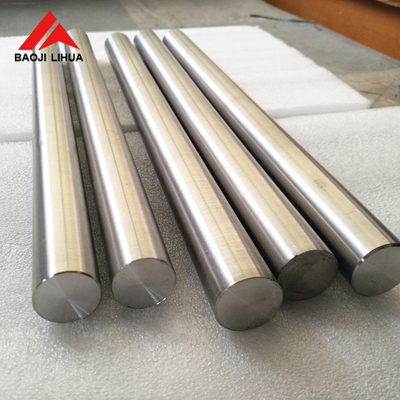

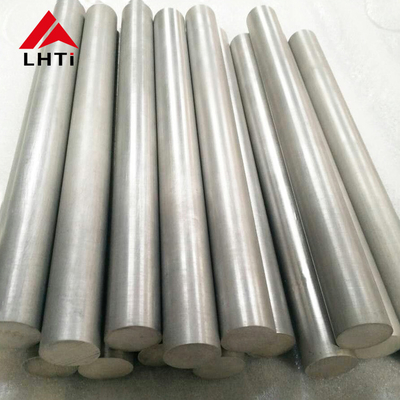

Detailed Images
