Home Products

Titanium Rod

Titanium Industry Rods ASTM B348 Titanium Alloy Bars For Chemical Industry

Name: Titanium Industry Rods ASTM B348 Titanium Alloy Bars For Chemical Industry
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Rod
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Rod
MOQ:	30 kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

30 Kg

Packing:

Standard Export Packing

Packaging Details:

Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.

Supply Ability:

300000 kg per month

Highlight:

ASTM B348 Titanium Alloy Bars

Titanium Industry Rods

Chemical Industry Titanium Alloy Bars

Product Description

Titanium industry rods ASTM B348 titanium alloy bars for chemical industry

Application:Industry,Aerospace
Diameter:≥1.0mm
Length:≤6000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade:GR9
Material:titanium
Surface:bright
Certification:ISO,EN10204 3.1,EN10204 3.2
Standard:ASTM B348
Shape:Flat/Square/as customer request shape cutting

Gr9 Ti-3Al-2.5V Titanium Bar can be used at higher temperatures than Grades 1 through 4. Grade 9 titanium has good cold rolling properties.Ti-3Al-2.5V (Grade 9) is a near α-type titanium alloy. The strength of Titanium 9 is between Grade 4 and Grade 5. It has excellent corrosion resistance for aerospace and industrial applications.

Titanium Ti3Al2.5V (grade 9) or more simply known as Ti-3-2.5 is commonly grouped with the commercially pure grades due to it's ability to be cold rolled. The strength of Ti3al2.5V (Ti-3-2.5) falls between Grade 4 and Grade 5. However Ti3Al2.5V (grade 9) can be used at higher temperatures than Grade 1, Grade 2, Grade 3 and Grade 4.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

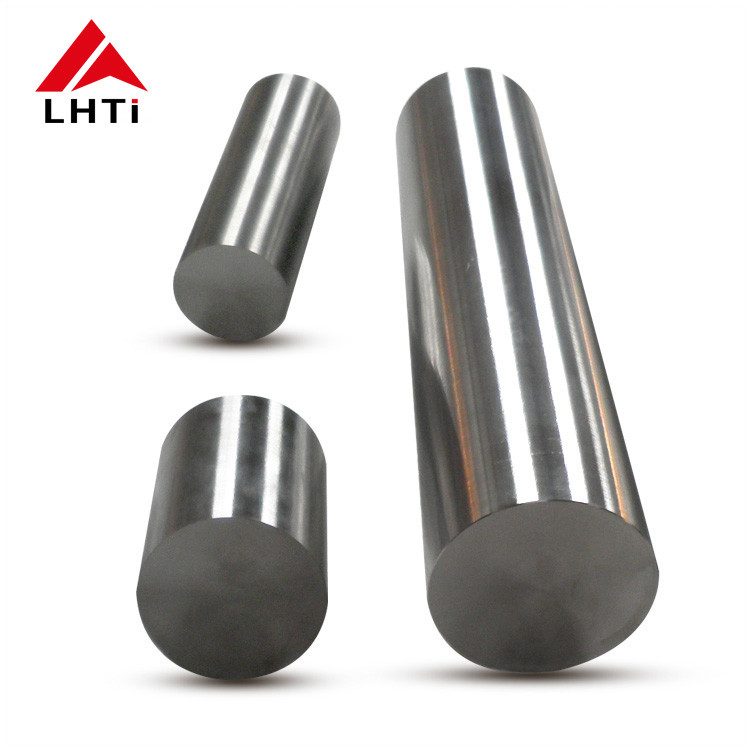

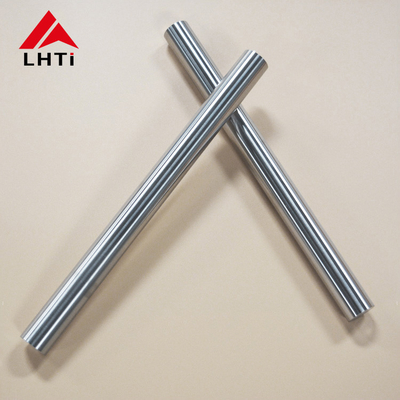

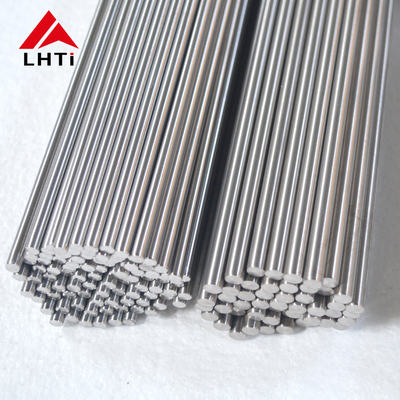

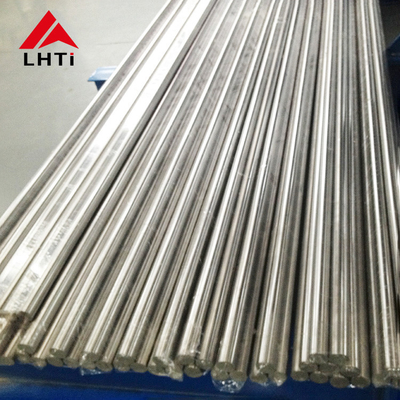

Product picture:
