Titanium Rod
Created with Pixso.

Gr1 Gr2 Titanium Rod Titanium Solid Titanium Alloy Rod

Gr1 Gr2 Titanium Rod Titanium Solid Titanium Alloy Rod

Brand Name: LHTi
Model Number: Titanium Rod
MOQ: 30 kg
Price: $20.00~$30.00/kg
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 300000 kg per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; SGS;BV
Diameter:
3mm-350mm
Material:
Pure Titanium
Surface:
Bright,Polished,Pickling
Condition:
Annealed; M
MOQ:
30 Kg
Packing:
Standard Export Packing
Packaging Details:
Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Supply Ability:
300000 kg per month
Highlight:

Gr2 Titanium Rod

,

Gr1 Titanium Rod

,

Solid Titanium Alloy Rod

Product Description

Gr1 Gr2 Titanium Rod Titanium Solid Titanium Alloy Rod



Standard:ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
Grade:TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23
Diameter:5-350mm
Length:Max6000mm
Technique:Forging ,Machining
Surface:acid surface or polishing, sand blasted surface
Shape:Round, flat, square, hexagonal



we supply the titanium bars to suit some of the most diverse requirements- including those based in the medical industry. The titanium bars that we supply can be used for dental implants, surgical implants, joint and bone replacements, as well as medical equipment. The durability of the titanium bars makes them so popular amongst the medical industry.



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal




Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18




Item Name Titanium bar/titanium rod
Standard ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material Gr1 Gr2 Gr3 Gr4 Gr5
Diameter 0.8~500mm
Length 500~6000mm or according to customers' request
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape Round bar, square bar , hex bar
Feature

1.Polished surface without any defects free from cracks no pittings
2.Two ends flating making sure length torlerance and good looking

Certificate ISO9001:2015, TUV, material test certificate acc EN10204.3.1

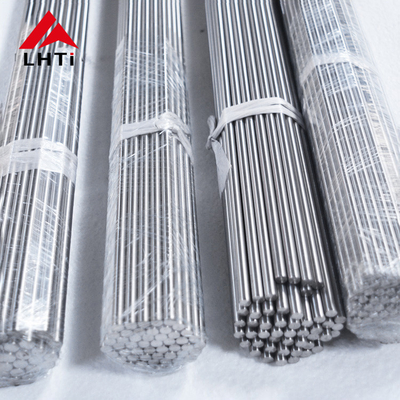

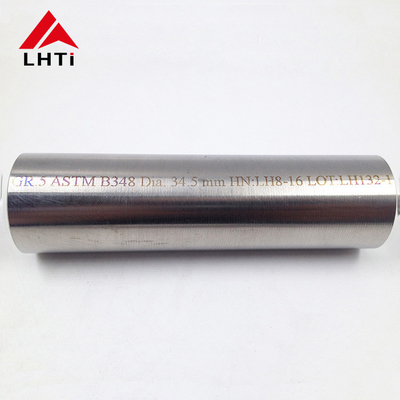

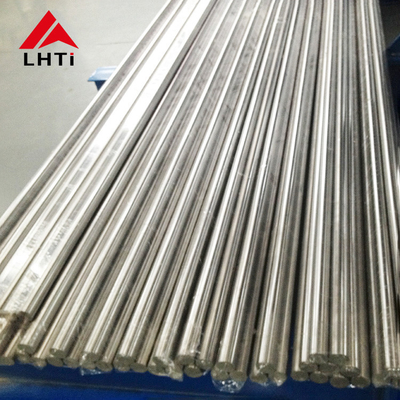

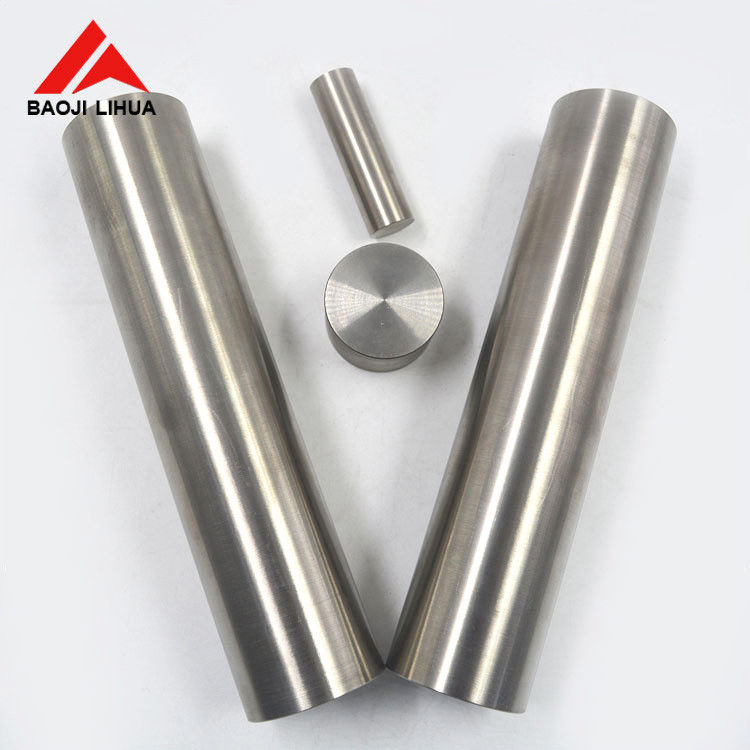

 Product picture:

Gr1 Gr2 Titanium Rod Titanium Solid Titanium Alloy Rod 0Gr1 Gr2 Titanium Rod Titanium Solid Titanium Alloy Rod 1
