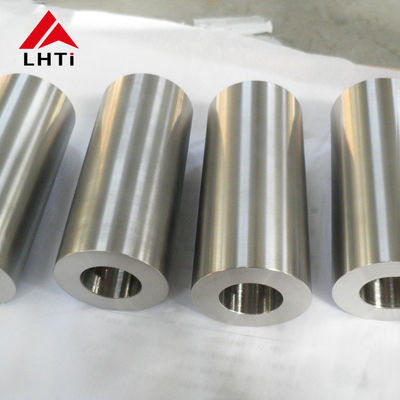

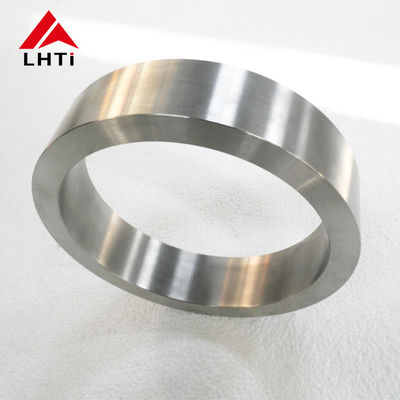

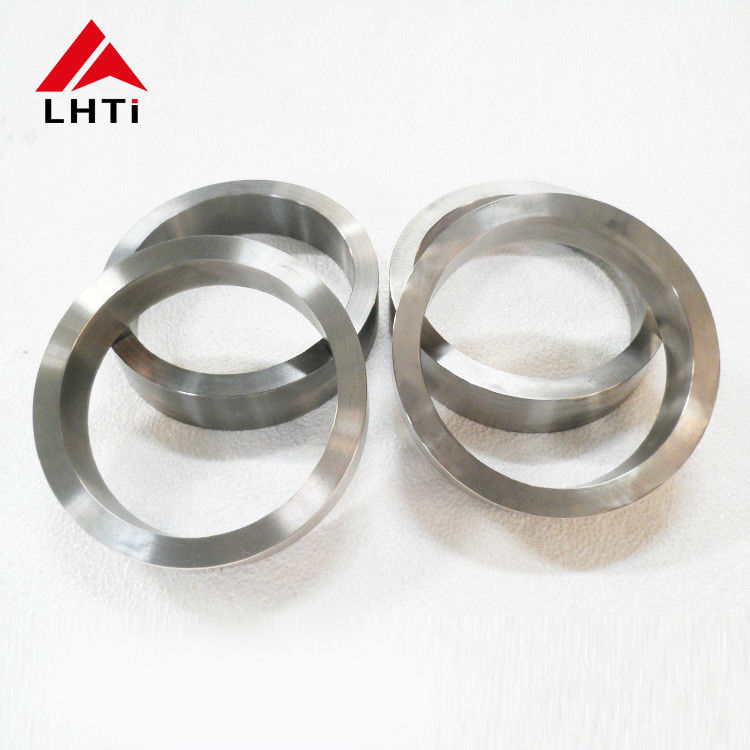

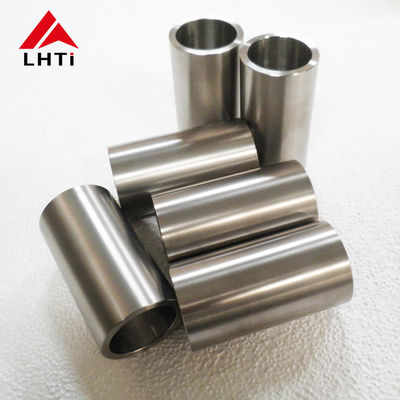

200-1300mm Gr5 Titanium Forged Ring Aerospace

Brand Name:	LIHUA
Model Number:	LH-TH
MOQ:	1 pieces
Price:	US dollar $15/kg--US dollar $35/kg
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium Forged Ring

Material:

Gr5

Application:

Chemical Industry

Outer Diameter:

200-1300mm

Inner Diameter:

100-900mm

Height:

35-250mm

Thickness:

40-400mm

Quality Control:

Ultrasonic Testing

Packaging Details:

Plywood box for export

Supply Ability:

5000 kgs per month

Highlight:

200mm Titanium Ring

Aerospace Forging Titanium Ring

Industrial Titanium Forging Ring

Product Description

200-1300mm Gr5 Titanium Forged Ring Aerospace

This Gr5 titanium forged ring is produced in materials covering Ti Gr2, Gr7, Gr12 and Gr16 to ASTM B381 / ASME SB381, with dimensions made to customer requests and drawings. Titanium forgings are used in aeroengines for compressor disks, blades, drums, high-pressure compressor rotors and compressor casings, and about 30% of the structural weight of a modern turbine engine is made of titanium alloy. Forging plus machining gives the required material structure and properties for main bearing components of aircraft skeletons and engine rotors.

Gr5 Titanium Forged Ring

Technical Specifications

Product Name	Titanium forged ring
Material	Gr5 (Gr2, Gr7, Gr12, Gr16 also available)
Outer Diameter	200-1300mm
Inner Diameter	100-900mm
Height	35-250mm
Thickness	40-400mm
Technic	Forging + machining
Quality Control	Ultrasonic testing

Chemical Requirements (max %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Applications & Titanium Advantages

This titanium forged ring is used in the chemical industry and for heat exchangers and pressure vessels serving petrochemical, medical and laboratory and food duties. In the extreme conditions of ultra-high temperature, ultra-low temperature, high vacuum, high stress and strong corrosion, aerospace vehicles rely on titanium’s excellent properties, and titanium forgings are also used in fuel tanks and engine shells. Titanium reduces the weight of compressor and fan blades while extending the service life and inspection interval of parts.

Quality, Customization & Inquiry

LHTi manufactures to ASTM B381 / ASME SB381 under ISO 9001 with TUV inspection and ultrasonic testing, and dimensions are made to customer requests and drawings. OEM service is available and packaging is by plywood box for export. Please send your specification for a quotation.
