Product Details
Place of Origin: Baoji, Shaanxi, China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Forged titanium ring
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: USD15.5-58.5 per kg
Packaging Details: Standard export packging, Carton box/ plywood case outside
Delivery Time: 10-20 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 20000 kgs per month
Standard: |
ASTM B381 |
OD: |
200mm 250mm 300mm,or As Customized |
Wall Thickness: |
10mm 25mm 30mm 40mm, Or As Customers' Requests |
Material: |
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc. |
Application: |
Chemical Industry Etc. |
Surface: |
Bright |
Technique: |
Forged, Machined |
MOQ: |
1 Piece |
Standard: |
ASTM B381 |
OD: |
200mm 250mm 300mm,or As Customized |
Wall Thickness: |
10mm 25mm 30mm 40mm, Or As Customers' Requests |
Material: |
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc. |
Application: |
Chemical Industry Etc. |
Surface: |
Bright |
Technique: |
Forged, Machined |
MOQ: |
1 Piece |

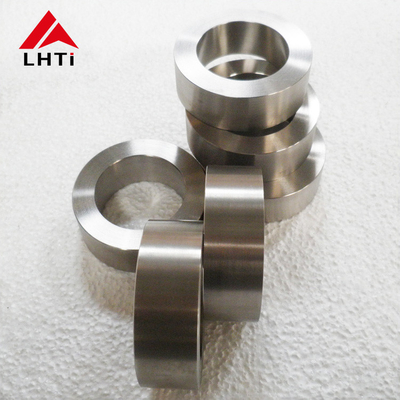

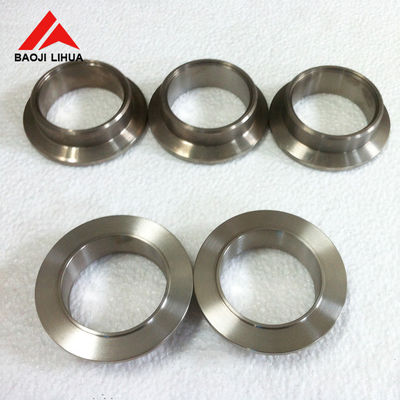

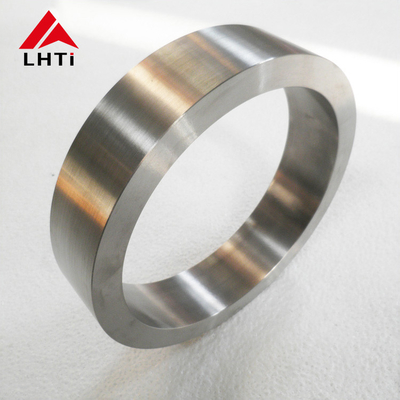

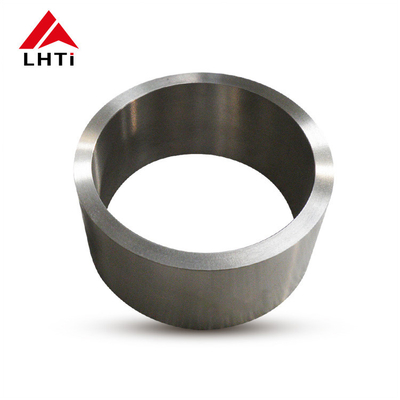

Industry use titanium forging ring grade 5 Ti6Al4V 200mm 250mm 300mm big size
1. High Strength: Titanium is known for its strength and durability, making it an ideal material for forging rings that can withstand wear and tear.
2. Corrosion Resistance: Titanium is highly resistant to corrosion, making it ideal for use in environments where other metals may begin to corrode or degrade.
Product name: forged titanium ring
Standard: ASTM B381
Grade: GR1,GR2,GR5,GR7,GR9,GR12
Application:Chemical industry etc.
1.Common Dimensions:
Outside Diameter: 200~400 400~700 700~900 900~1300mm
Inside Diameter: 100~300 150~500 300~700 400~900mm
Height: 20~150 30~250 35~300 50~400mm
2.Mechanical Properties:
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation % | ||||
| ksi | Mpa | ksi | Mpa | |||||
| Gr1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 24 | ||
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 50 | 345 | 40 | 275 | 20 | ||
| Gr5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10E | ||
| Gr7 | T-50A 0.15Pd | 50 | 345 | 40 | 275 | 20 | ||
| Gr9 | Ti 3Al 2.5V | 90 | 620 | 70 | 483 | 15F | ||
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 485 | 50 | 345 | 18 | ||
