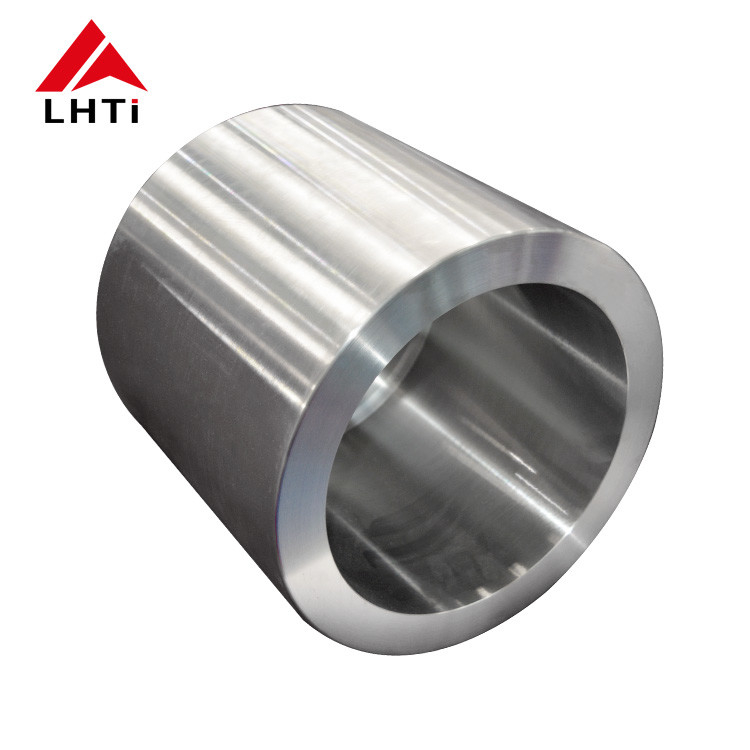

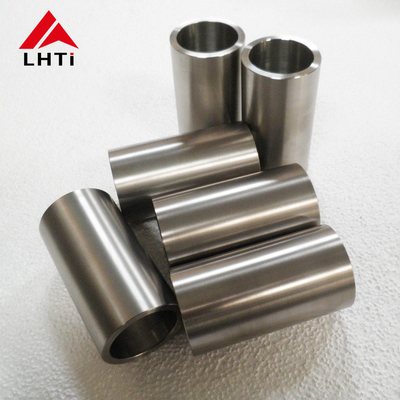

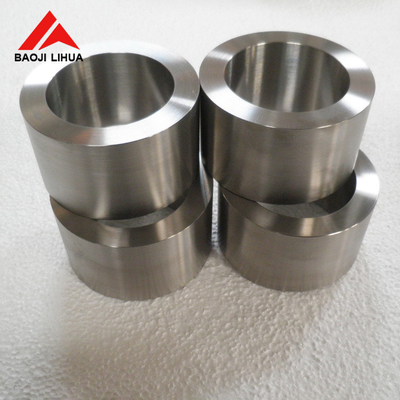

Titanium Ring For Aeronautics Industry

Brand Name:	LHTI
Model Number:	LH-12
MOQ:	1 piece
Price:	US dollar $25/kg-US dollar $150/kg
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji Shaanxi China

Certification:

ISO9001

Grade:

Gr1,Gr2,Gr5,Gr7,Gr12 Etc

Technique:

Forged,rolling

Application:

Chemical Industrial Or Aeronautics

Powder Or Not:

Not Powder

Ti Content (%):

99.0%min

Dimensions:

50-600mm Or As Your Requirment

Material:

Titanium

Standard:

ASTM B381/AMS4928 Etc

Surface:

Bright Surface

Shape:

Round Ring

Density:

4.51/m^3

Key Words:

Forged Titanium Ring

Packaging Details:

standard export plywood case

Supply Ability:

5 tons per month

Product Description

Titanium Ring For Aeronautics Industry

Material: Pure titanium and titanium alloy
Grade:Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 etc
Size:OD:300-1500mm, ID:200-1400mm; H:20-500mm
Quality control:Ultrasonic Testing& Material Test Report& Visual inspection
Pressure rating: 0.6~32Mp
(DIN)PN6, PN10, PN16, PN25 though PN250
(ASNI)CL150, CL300, CL600, CL900, CL1500

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
