Ti6Al4V Forged Titanium Alloy Ring ASTM B381

Brand Name:	LIHUA
Model Number:	LH-TH
MOQ:	1 pieces
Price:	US dollar $15/kg--US dollar $35/kg
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium Forged Ring

Material:

Gr5

Application:

Chemical Industry

Outer Diameter:

200-1300mm

Inner Diameter:

100-900mm

Height:

35-250mm

Thickness:

40-400mm

Quality Control:

Ultrasonic Testing

Packaging Details:

Plywood box for export

Supply Ability:

5000 kgs per month

Highlight:

Corrosion Resistant Titanium Ring

Ti6Al4V Titanium Alloy Ring

Chemical Industry Titanium Alloy Ring

Product Description

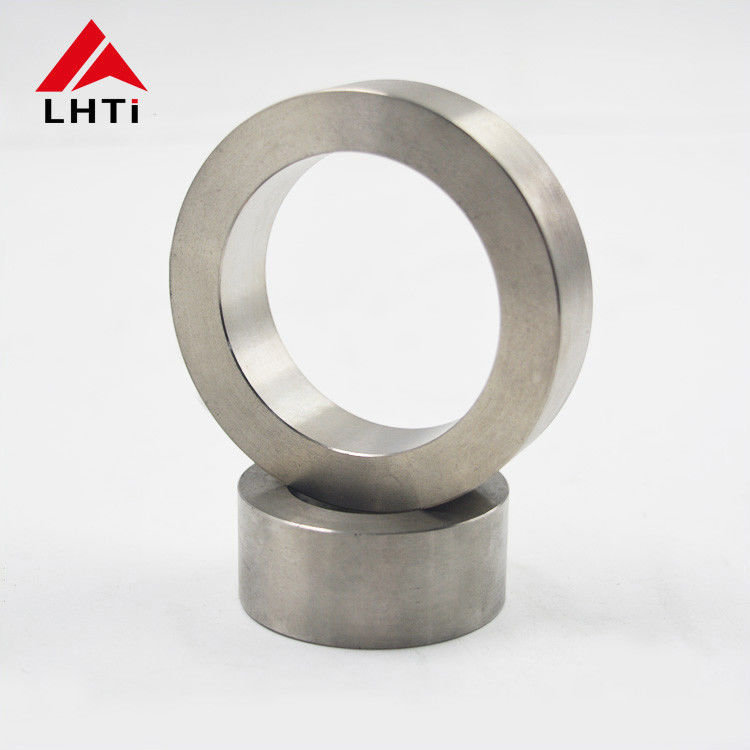

Ti6Al4V Forged Titanium Alloy Ring ASTM B381

This forged titanium alloy ring is produced from Ti6Al4V (Gr5) to ASTM B381, in outer diameters of 200-1300 mm, inner diameters of 100-900 mm, height of 35-250 mm and thickness of 40-400 mm. ASTM B381 titanium forgings combine high strength, low density, resistance to elevated temperature and high corrosion resistance, particularly in seawater and chlorine environments. The forged ring is checked by ultrasonic testing and is widely used in chemical industry equipment and marine service.

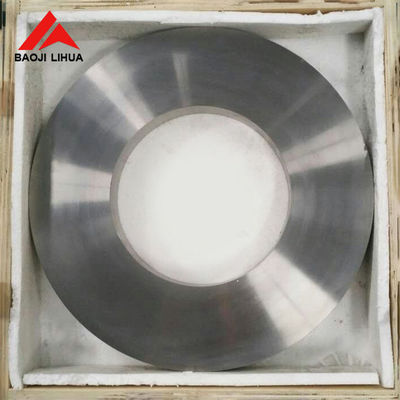

Ti6Al4V forged titanium alloy ring

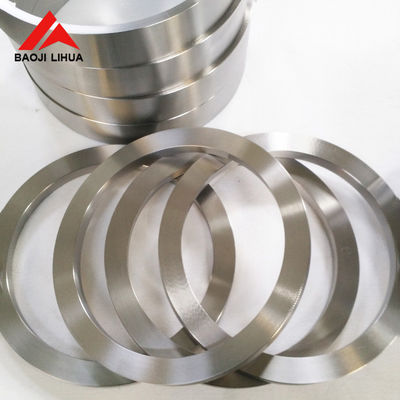

Titanium alloy ring forging

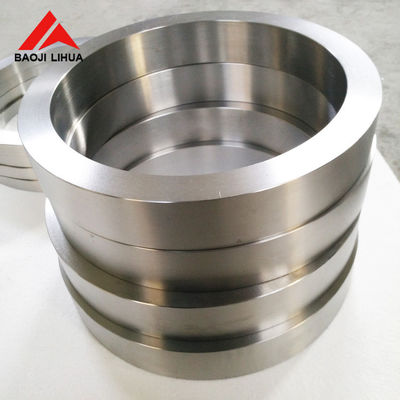

ASTM B381 titanium ring

Technical Specifications

Product name	Titanium forged ring
Material	Gr5 (Ti6Al4V)
Standard	ASTM B381
Process	Forging
Application	Chemical industry
Quality control	Ultrasonic testing
Surface	Machined

Ring Size Range

Item	Range
Outer diameter	200 mm - 1300 mm
Inner diameter	100 mm - 900 mm
Height	35 mm - 250 mm
Thickness	40 mm - 400 mm
Customization	Sizes made to the customer's drawing

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Applications & Titanium Advantages

This titanium ring is used in chemical industry equipment as well as marine and general industrial applications. Titanium forgings offer high specific strength, excellent corrosion resistance, a wide operating temperature range and low damping characteristics, so the ring performs reliably in seawater and chlorine environments over a long service life.

Quality, Customization & Inquiry

Lihua produces this titanium forging under ISO 9001 and TUV quality control, with ultrasonic testing and material certificates available. Custom sizes and grades are offered, and goods are packed in a plywood box for export. Please send your drawing or specification for a quotation.
