Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS; BV
Model Number: Titanium ring
Payment & Shipping Terms
Minimum Order Quantity: 5 PCS
Price: USD12.00-35.00 per kg
Packaging Details: Plywood box with soft foam for additional protection against any shipping-induced trauma
Delivery Time: 12-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical Engineering & Petrochemical Technology |
Characteristic 1: |
Excellent Corrosion Resistance |
Surface: |
Bright Polished |
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical Engineering & Petrochemical Technology |
Characteristic 1: |
Excellent Corrosion Resistance |
Surface: |
Bright Polished |

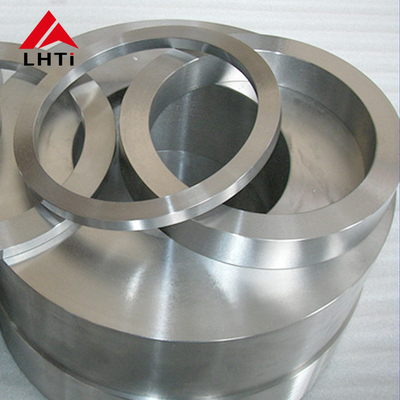

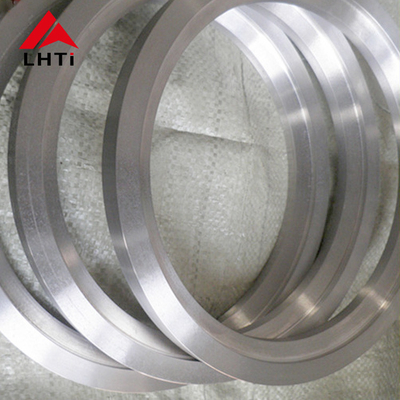

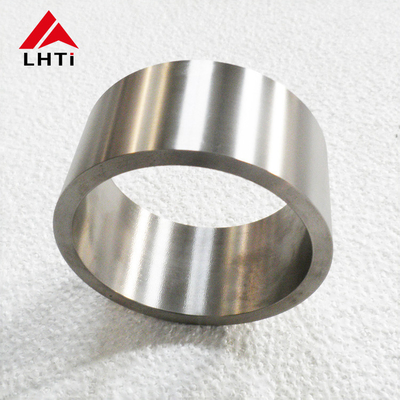

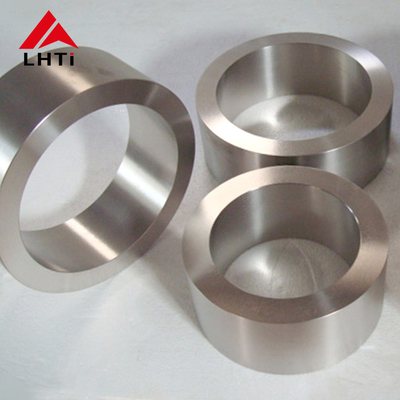

ASTM B381 Titanium Forged Rings
A astm b381 Titanium Forged rings was made in three steps. The process flows grains to the tangential and radial directions and provides mechanical properties such as strength, ductility, and impact and fatigue resistance to the workpiece.
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
