Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001
Model Number: Titanium Wire
Payment & Shipping Terms
Minimum Order Quantity: 10kgs
Price: US dollar $22.5/kg--US dollar $276.9./kg
Packaging Details: Plywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation.
Delivery Time: 10-15working days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000 Kilograms per Month
Place Of Origin: |
China |
Brand Name: |
LHTi |
Model Number: |
Diameter 0.8-6.0mm |
Application: |
Chemical Industry |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Ti (Min): |
99.5 |
Strength: |
180Mpa~875Mpa |
Keywords: |
Titanium Wire |
Shape: |
Spool Wire,coil Wire,straight Wire |
Surface: |
Pickled,Polished |
Place Of Origin: |
China |
Brand Name: |
LHTi |
Model Number: |
Diameter 0.8-6.0mm |
Application: |
Chemical Industry |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Ti (Min): |
99.5 |
Strength: |
180Mpa~875Mpa |
Keywords: |
Titanium Wire |
Shape: |
Spool Wire,coil Wire,straight Wire |
Surface: |
Pickled,Polished |

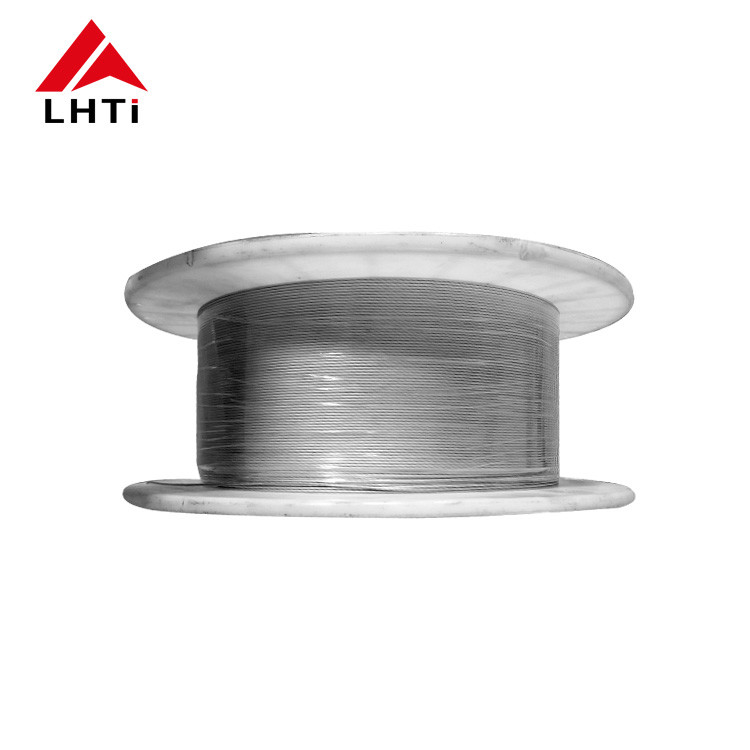

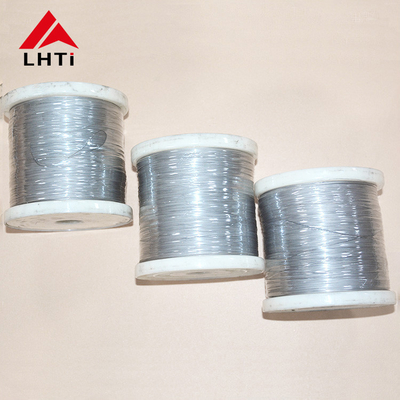

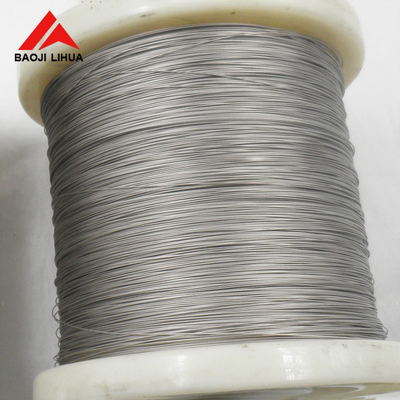

Titanium coil wire 1mm 2mm price per kg for braces welding
Brands: ERTI-1, ERTI-2, ERTi-3, ERTI-4, ERTi-5
Implementation standards: AWS A5.16, GB/T3623, ASTM B865
Specifications:￠1.0, 1.2, 1.6mm (Titanium Welding Wire On Spool)
Surface treatment: bright surface
Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, pricking, speckles and inclusions. Minor local
scratches, scrapes, spots, pits, etc., not exceeding the allowable deviation of the wire diameter are allowed.
Titanium Welding Wire On Spool is applied in aerospace, aviation, military industry, light industry, chemical industry, 3D printing, welding, textile, electronics, superconductivity, medical and petrochemical fields. It is available with a variety of specifications and types, and we can also have stocks as customer requires. This wire also has a metallic luster and is malleable. Its main characteristics are low density, high mechanical strength and easy processing, meanwhile, it has good corrosion resistance and is not affected by the atmosphere and seawater.
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
