Product Details
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 10 kg
Packaging Details: Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Product Name: |
High Quality 1.2mm/2.4mm/3.2mm Titanium Welding Rod /wire AWS A5.16 Welding Titanium Wire |
Grade: |
Grade1 Grade2 ErTi1 ErTi2 |
Shape: |
Coil,spool,straight |
Material: |
Pure Titanium |
Surface: |
Pickling Surface/polish Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
0.8mm-5mm Etc |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |
Product Name: |
High Quality 1.2mm/2.4mm/3.2mm Titanium Welding Rod /wire AWS A5.16 Welding Titanium Wire |
Grade: |
Grade1 Grade2 ErTi1 ErTi2 |
Shape: |
Coil,spool,straight |
Material: |
Pure Titanium |
Surface: |
Pickling Surface/polish Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
0.8mm-5mm Etc |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |

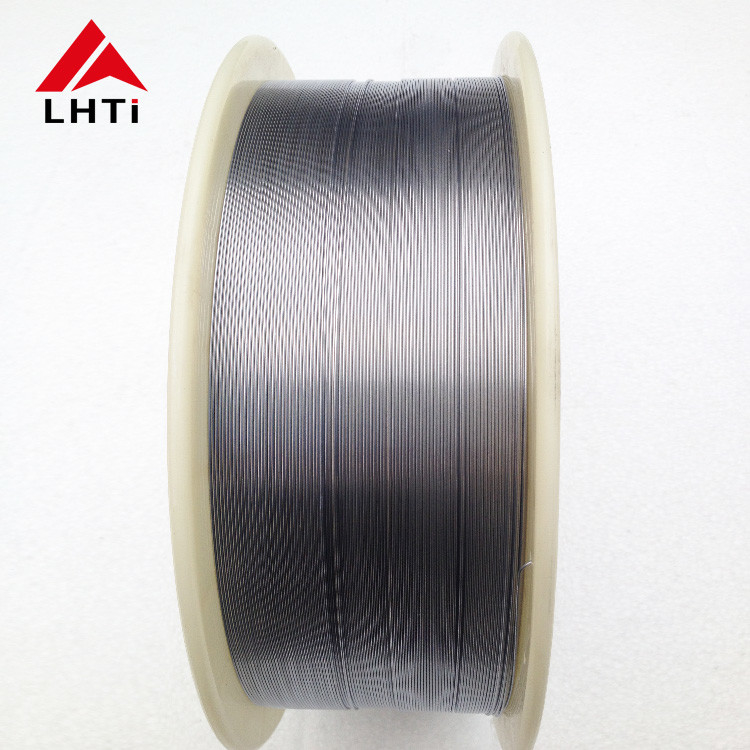

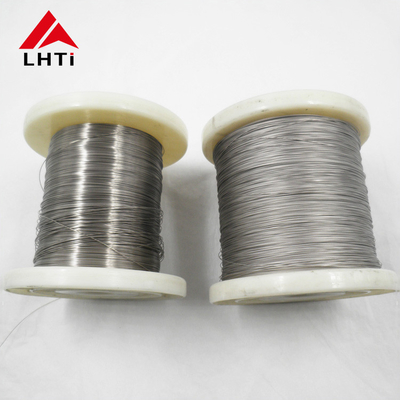

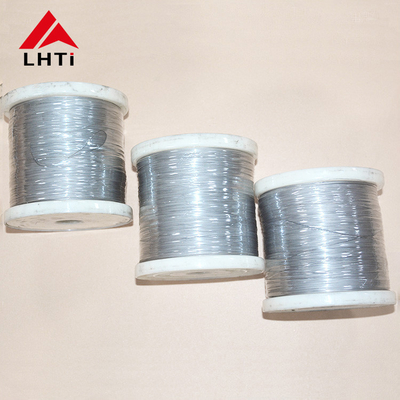

Pure Titanium Welding Wire ErTi2 For Medical
Standard:ASTM B863 AWS A5.16
Specification OD:1.0-4.0mm L: 1000mm
Manufacturing method:Forging, Drawing
Surface:Brightness
Advantages :Corrosion resistance, high temperature resistance,
low temperature resistance, non-toxic, non-magnetic,
high strength, small thermal conductivity
Application:Welding of titanium base alloy.
Gr1 ERTi titanium wire is a commercial titanium welding wire. It has excellent welding process performance, beautiful weld forming, the weld metal has excellent comprehensive mechanical properties. It is mainly used for welding titanium base alloy.
| Standard | ASTM B863 AWS A5.16 |
| Specification | OD:1.0-4.0mm L: 1000mm |
| Manufacturing method | Forging, Drawing |
| Surface | Brightness |
| Advantages | Corrosion resistance, high temperature resistance, low temperature resistance, non-toxic, non-magnetic, high strength, small thermal conductivity |
| Application | Welding of titanium base alloy. |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
