Product Details
Place of Origin: Shaanxi, China
Brand Name: LH-Ti
Certification: ISO9001:2015
Model Number: Titanium Elbow
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: $20.00~$30.00/kg
Packaging Details: First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 10000 Kilogram/Kilograms per Month
Outer Diameter: |
2" 2.5" 3" 4" |
Standard: |
Standard |
Technique: |
Seamless |
Wall Thickness: |
1.0mm/1.2mm |
Standard: |
ASTM B363,ASTM SB363,ASTM B16.9 |
Packing: |
Wooden Case |
Titanium Elbow: |
Elbows (90D, ) NPS 1/4" - 24"(DN5-1200) |
Thickness: |
1.0mm/1.2mm |
Outer Diameter: |
2" 2.5" 3" 4" |
Standard: |
Standard |
Technique: |
Seamless |
Wall Thickness: |
1.0mm/1.2mm |
Standard: |
ASTM B363,ASTM SB363,ASTM B16.9 |
Packing: |
Wooden Case |
Titanium Elbow: |
Elbows (90D, ) NPS 1/4" - 24"(DN5-1200) |
Thickness: |
1.0mm/1.2mm |
Gr2 Titanium Elbow / Bends With 1.2mm For Exhaust Parts
Our ASTM B363 UNS R50250 Titanium Buttweld Pipe Caps have some excellent features like toughness at extremely high temperatures, lightweight yet durable and as they possess a massive tensile strength. Titanium Buttweld DIN 3.7035 Seamless Fittings are basically used to the aerospace industry but, due to their numerous unique properties, are also used in chemical, medical and military applications, as well as in sporting goods. Thus our WNR 3.7165 Titanium Buttweld Pipe Elbow containing titanium are known for their high strength, lightweight, and exceptional corrosion resistance.
| 1. Titanium Elbow/titanium bend used for exhaust pipe | ||
| material | Titanium Gr1/Gr2 | |
| standard | ASTM B363,,ASTM SB363 | |
| Titanium elbow | Elbows (45D, 90D, 180D) NPS 1/4" - 24"(DN5-1200) | |
| Reducers | concentric, eccentric,NPS 1/4" - 24"(DN15-1200) | |
| Stub ends | NPS1/4" - 4" | |
| Wall thickness | 1mm | |
| Technical | Pressing,welded, seamless | |
| Applicate | titanium exhaust pipe | |
| Product Marking | All products are marked by laser after they are finished | |
| Products Types | 45°Titanium elbow,90°Titanium elbows,Titanium Tee,Titanium Reducer,Titanium Weldolt,Titanium End Cap,Titanium Stub End. |
|
|
Chemical requirements |
|||||||||||
|
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
|
Tensile requirements |
|||||
|
Grade |
Tensile srength(min) |
Yeild strength(mm) |
Elongation(%) |
||
|
|
KSI |
MPa |
Ksi |
MPa |
|
|
1 |
35 |
240 |
20 |
138 |
24 |
|
2 |
50 |
345 |
40 |
275 |
20 |
|
5 |
130 |
895 |
120 |
828 |
10 |
|
7 |
50 |
345 |
40 |
275 |
20 |
|
12 |
70 |
438 |
50 |
345 |
18 |

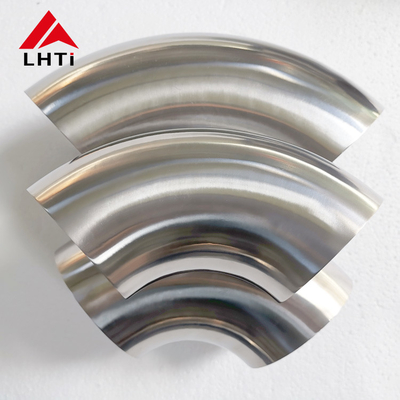

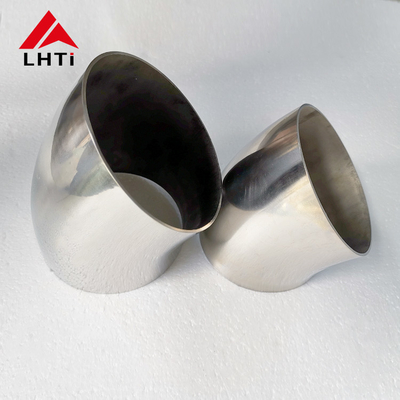

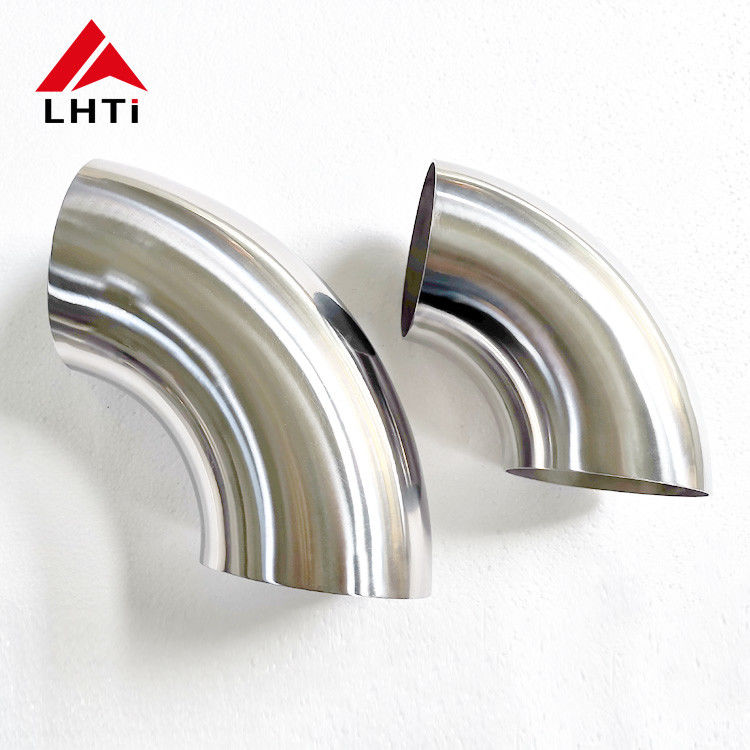

Product picture:
