Titanium Elbow
Created with Pixso.

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

MOQ: 10pcs
Price: USD30-50 per kg
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 Ton per month
Detail Information
Standard:
ASME B16.9
Material:
Gr1, Gr2, Gr7, Gr12
Unit Price:
$10usd/pc-$200usd/pc
MOQ:
5PC
Factory Area:
3000 ㎡
Company Staff:
48
Foreign Trade Team Service Staff:
20China's Professional Titanium Pipe Fittings Manufacturer Send Inquiry
Diameter:
1/2"-48"
Wall Thickness:
Sch5s-Sch160s
Technique:
Seamless/Welded
Packaging Details:
Wooden case or as per client requirement
Supply Ability:
5 Ton per month
Highlight:

ASME B16.9 90 Degree Elbow

,

Sch160s Seamless Titanium Elbow

,

Chemical Equipment 90 Degree Elbow

Product Description

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9

Grade: GR1 GR2 GR7 GR12

Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.

Type: Long radius, Short radius

Technique: Seamless, Welded

Outer Diameter: 1/2"-48"(DN15-DN1200)

Wall Thickness: Sch5s-Sch160s



Chemical compositions:

Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n

Σb

(Mpa)

σr0.2

(Mpa)

No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015           24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015           20 400 275
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25         20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015       0.3 0.8 18 460 300



Applications of Titanium Elbows

  • Off-Shore Oil Drilling Company

  • Power Generation

  • Petrochemicals

  • Gas Processing

  • Specialty Chemicals

  • Medicine

  • Pharmaceutical Equipment

  • Chemical Equipment

  • Sea Water Equipment

  • Heat Exchanger

  • Condenser

  • Pulp and Paper Industry

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 0

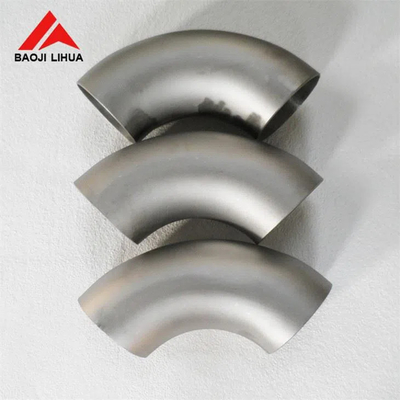

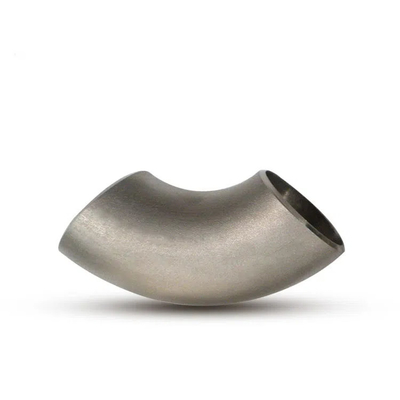

Detailed Images of Titanium 90° ElbowSeamless / Welded 90 Degree Titanium Elbow ASME B16.9 1Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 2

Titanium 90° ElbowSeamless / Welded 90 Degree Titanium Elbow ASME B16.9 4Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 5



Packing and shipping of titanium elbows:

Quantity(Pieces) 1 - 100 100 - 500 >500
Est. Time(days) 15 20 To be negotiated

The packing is the responsibility of the special packing personnel, which is suitable for international long-distance transportation. Ensure that goods will not damage when arrive customers.

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 6



About our company:

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 7Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 8

Advantages of Our Company:

Manufacturers with rich experience

A profession technical team

Wide knowledge of the market

High quality and high performance products

Competitive prices

Short delivery time

Sample orders accepted

Seamless / Welded 90 Degree Titanium Elbow ASME B16.9 9
