Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Product Name: |
Titanium Seamless 90 Degree Welded Elbow Tube Fittings |
Standard: |
ASTM/ASME B363 |
OD: |
1/8" To 48" |
Wall Thickness: |
Sch5s To Sch160 |
Processing: |
Push |
Applications: |
Pipe Fitting Connetion |
Third Party Test: |
Available |
Model Number: |
TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2 |
Inside Diameter: |
4~114mm |
Surface: |
Pickled,polished |
Product Name: |
Titanium Seamless 90 Degree Welded Elbow Tube Fittings |
Standard: |
ASTM/ASME B363 |
OD: |
1/8" To 48" |
Wall Thickness: |
Sch5s To Sch160 |
Processing: |
Push |
Applications: |
Pipe Fitting Connetion |
Third Party Test: |
Available |
Model Number: |
TA0,TA1,TA2,TA9,TA10,BT1-00,BT1-0,Gr1,Gr2 |
Inside Diameter: |
4~114mm |
Surface: |
Pickled,polished |
Titanium Seamless 90 Degree Welded Elbow Tube Fittings
Titanium elbow is one of the commonly used titanium pipe fittings.Titanium pipe fittings has extremely high corrosion resistance in most media, especially in neutral, oxidizing and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment and marine atmosphere for several years, and the surface has not changed.
Titanium pipe fittings is also highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.
Product name: Titanium 90 degree elbow
OD: 1/2"-36"
Wall thickness: 1.0-18mm
Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363
Material grade: Titanium Grade 1 grade 2 grade 7 Grade 12
Type: Seamless ,welded
Surface: Pickled, polished,sand-blasting
Application: Pipe fittings
|
|
Tensile Strength(min) |
Yeild Strength(min) |
Elongation(%) |
||
|
|
ksi |
MPa |
ksi |
MPa |
|
|
Grade 1 |
35 |
240 |
20 |
138 |
24 |
|
Grade2 |
50 |
345 |
40 |
275 |
20 |
|
Grade 7 |
50 |
345 |
40 |
275 |
20 |
|
Grade 12 |
70 |
483 |
50 |
345 |
18 |
Titanium elbows quality inspections:
Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,
Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

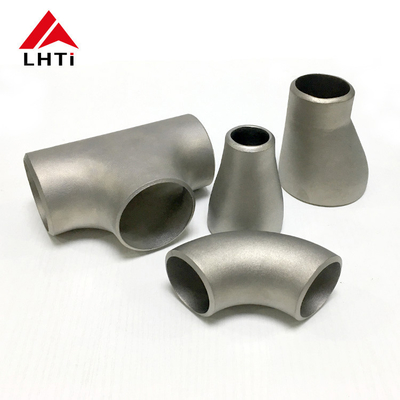

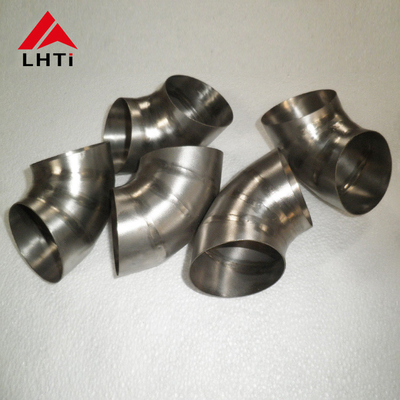

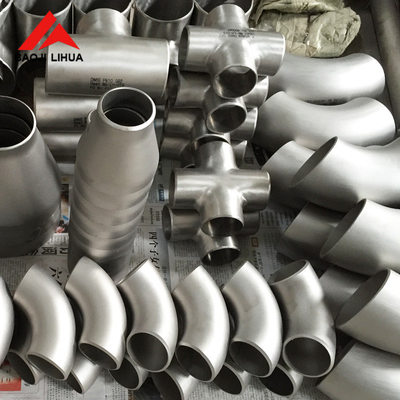

Detailed images:
Baoji Lihua Non-ferrous Metals Co.,Ltd found in 2006, lies in Baoji city--"The Titanium Valley of China. We are specialized in manufacturing, reaseaching and marketing titanium. All our products are mainly exported to Europe, USA, Australia, Middle East and South East Asia. Besides, our products are manufactured either in accordance with the leading regulatory international and domestic standards, such as the ASME, ANSI, EN, DIN, BS, NF, JIS, AS, KS, GB, JB, HG, SH standards, or according to the drawings specified by purchasers. For the material, we mainly produce titanium and titanium alloy, nickel and nickel alloy.
