Product Details
Place of Origin: Shaanxi, China
Brand Name: LH-Ti
Certification: ISO9001:2015
Model Number: TC21
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: USD 30-50 / kg
Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.
Delivery Time: 10-15 days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 5 Ton per month
Product Name: |
Titanium Bar |
Standard: |
ASTM B348 |
Material: |
TC21 |
Shape: |
Round, Square, Flat, Hex |
Diameter: |
6-350mm |
Length: |
Max 6000mm |
Surface: |
Bright |
Product Name: |
Titanium Bar |
Standard: |
ASTM B348 |
Material: |
TC21 |
Shape: |
Round, Square, Flat, Hex |
Diameter: |
6-350mm |
Length: |
Max 6000mm |
Surface: |
Bright |

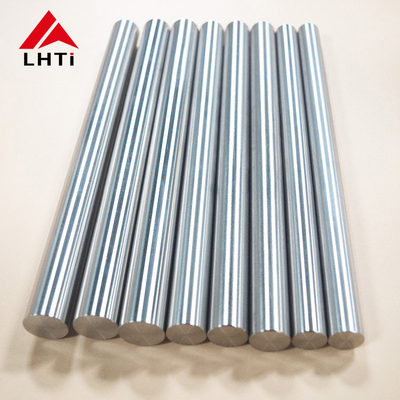

Round Titanium Rod / Bar Oxidation Surface
Certification:ISO9001:2015,SGS,TUV
Standard:ASTM B348/AMS4928
Shape: Round bar/hex rod
Application:Medical,industry aerospace
Diameter:≥1.0mm
Length:≤6000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade:GR5 .Ti6AL-4V. ti6al4v eli.grade 5
Material:Titanium
Surface:Polished
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| TC11 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | 5.8~7.0 | / | / | 2.8~3.8 | / | bal |
| TA18 | 0.05 | 0.08 | 0.015 | 0.25 | 0.12 | 2.0~3.5 | 1.5~3.0 | / | / | / | bal |
| TC20 | 0.05 | 0.08 | 0.009 | 0.25 | 0.20 | 5.5~6.5 | / | / | / | / | bal |
| TC21 | 0.05 | 0.08 | 0.015 | 0.15 | 0.15 | 5.2~6.8 | / | / | 2.2~3.3 | / | bal |
| TC26 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | / | / | / | / | / | bal |
| Tensile requirements | |||||
| Tensile srength(min) | Yeild strength(mm) | Elongation(%) | |||
| KSI | MPa | Ksi | MPa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |

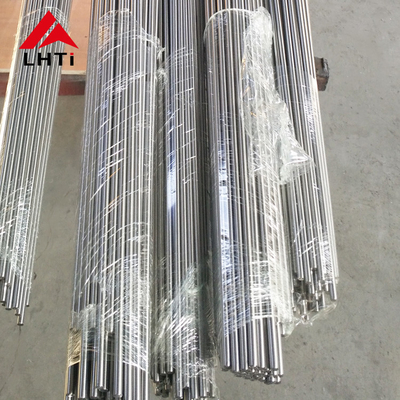

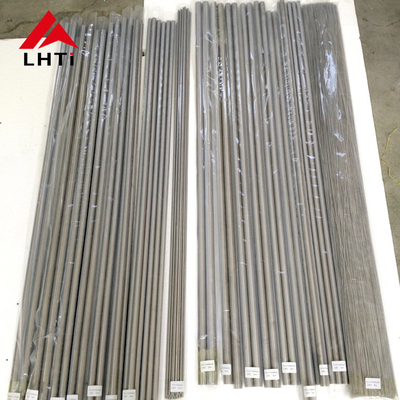

Detailed Images
