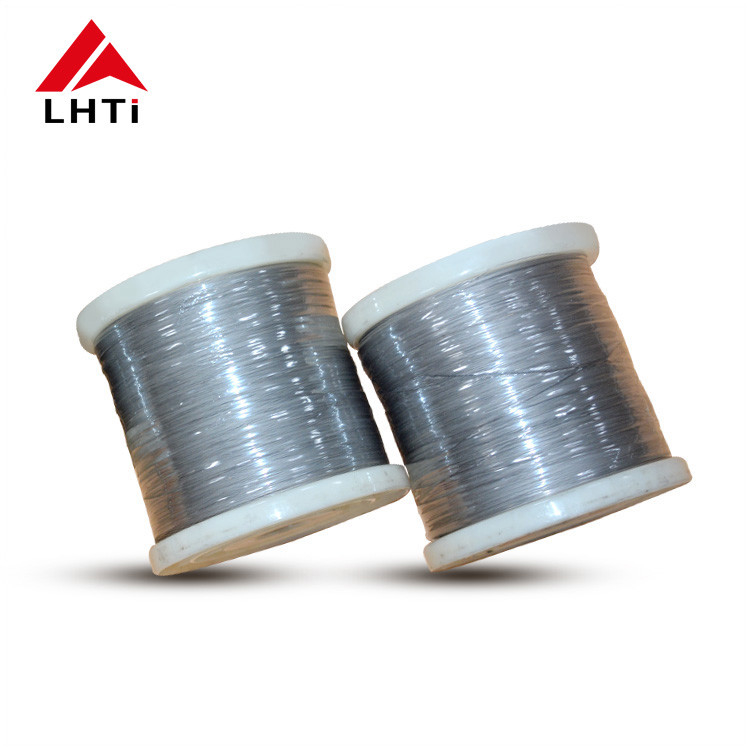

Pure Titanium Wire Coil Gr1 Gr2 1000mm - 3000mm

Name: Pure Titanium Wire Coil Gr1 Gr2 1000mm - 3000mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium wire
Price: 22.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium wire
MOQ:	20 kg
Price:	USD16.00-28.00 per kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Material:

Pure Titanium, Alloy Titanium

Grade:

Gr1, Gr2

Diameter:

0.5mm-3mm

Straight Wire Length:

1000mm-3000mm

MOQ:

20 Kg

Package Box:

5kg Per Plastic Box, Or As Your Request

Packaging Details:

Plastic bag with laber, outside plastic box, then plywod box

Supply Ability:

200000 kg per month

Highlight:

Pure Titanium Wire Coil

Gr2 Titanium Wire Coil

3000mm Titanium Wire Coil

Product Description

Pure Titanium Wire Coil

Delivery State:

1. M (Annealed soft state);

2. R (Processing of soft state);

3. Y (Processing of hard state);

4. D (Memory training, Dedicated Nitinol).

Packing: Soft paper or plastic bag as inside, wooden case as outside,

or according to customer's demand

1. Available Diameter, Type & Packing

Size (mm)	Dia 0.5	Dia 0.8	Dia 1.0	Dia 1.2	Dia 1.6	Dia 2.0	Dia 2.4	Dia 2.5	Dia 3.0	Dia 3.2	Dia 4.0
Size (inch)	0.020'	0.031"	0.039"	0.047"	0.062"	0.079"	0.093"	0.098'	0.12"	0.125"	0.16'
Straight					✓	✓	✓	✓	✓	✓	✓
Spool	✓	✓	✓	✓	✓
Coil					✓	✓	✓	✓	✓	✓	✓

2.Guide to choose of filler metal for general purpose titanium welding

ASTM Base Metal Grade	Base metal		Normal composition	Recommended Filler Metal
	UTS(min.) ksi[Mpa]	YS(min.) ksi[Mpa]
Grade 1	35[240]	20[138]	Unalloyed Ti CP1	ERTi-1
Grade 2	50[345]	40[275]	Unalloyed Ti CP2	ERTi-2
Grade 4	80[550]	70[483]	Unalloyed Ti CP4	ERTi-4
Grade 5	130[895]	120[828]	Ti 6AL-4V	ERTi-5
Grade 7	50[345]	40[275]	Ti 0.15Pd	ERTi-7

3.Chemical compostion requirements

AWS	CHEMICAL SPECIFICATIONS
AWS A5.16	UNS	C	O	N	H	I	Al	V	Pd
	Number
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

4. Definition of Different Levels

ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.

ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.

ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.

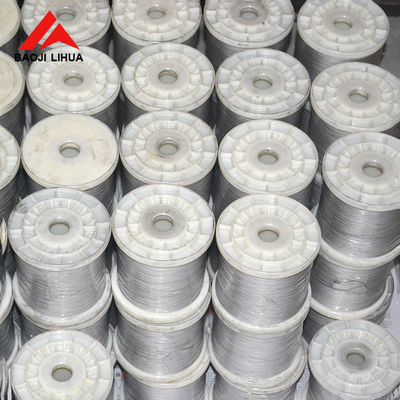

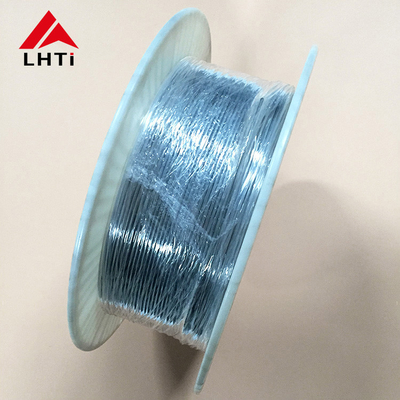

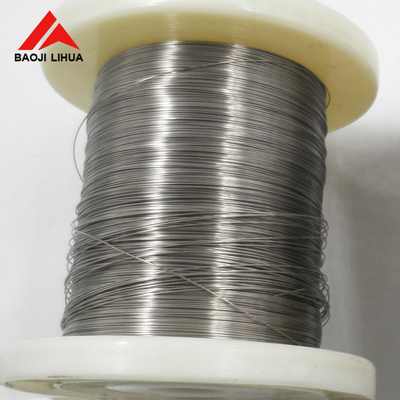

5. Detailed Images and Application
